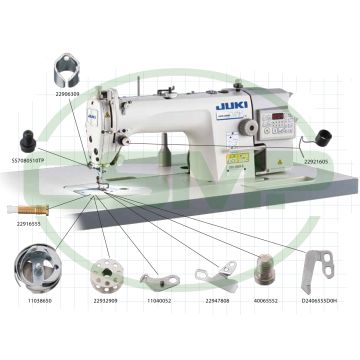

Juki DDL-8700 Parts

The 40264 Universal Steel Bobbin is a high-quality replacement spool designed to fit most standard sewing machines. Dimensions: 21.2mm diameter x 9.2mm width. Manufactured by Seki in Japan.

270010 Universal type spool with holes will fit most types of lockstitch machines. Diameter 21.2mm width 9.2mm. Made in Japan by Seki.

272152 = 146290001 Universal aluminium bobbin will fit most types of flat machines. Seki brand made in Japan excellent quality

270010 Universal type spool with holes will fit most types of lockstitch machines. Diameter 21.2mm width 9.2mm.

272152(C) Generic brand aluminium spools for lockstitch sewing machines.

40264 Universal steel spool will fit most types of machines made in Taiwan by Donwei.

52237NBL=BCDB1NBL6 Universal bobbin case fitted with NBL406 spring will fit all types of flat machines Brother,Singer,Juki. Towa brand made in Japan the best quality !!

HSH-7.94B Genuine Hirose Hook & Base with B type full gib for general use from light to heavy materials will fit most types of standard non trimmer flat bed machines.

HSH-7.94BTR Economy brand hook & base for UBT machines will fit most types of flat machines with underbed trimmers.

B1830-127-0A0 Genuine Juki hook and base for DDL8100E standard lockstitch non trimmer machines. For Hirose equivalent use HSH7.94B.

401-22606 Genuine Juki hook and base for DDL8100E standard lockstitch non trimmer machines. For Hirose equivalent use HSH7.94B.

110-28008 Genuine needle plate for Juki DDL-8700 lockstitch machine. Use with feeder B1613012A00.

Genuine needle plate for Juki DDL-8700H heavy duty. Use with feed B1613555H00.

B1109-552-000 Genuine Juki needle plate for DDL-8700 lockstitch machine. Use with feeder B1613012I00.

229-01250 Slide plate assembly for Juki DDL-8700 lockstitch machine

B1613-012-A00 Feed dog A for Juki DDL-8700 lockstitch sewing machine. Use with needle plate 11028008. For feed screw use SS4080620TP.

B1613012I00 Genuine Juki feed dog for flat bed machine. Use with needles plate B1109552000.

Genuine feed for Juki DDL-8700H heavy duty. Use with needle plate B1109555H0B.

113280001 = P351 Generic universal presser foot will fit most types of standard lockstitch machines. For wide foot use 140717001C.

B1524-012-0B0 Universal presser foot for lockstitch sewing machine complete with built in finger guard

229-32552 Top pre tension assembly for Juki DDL-8700 lockstitch machine. Replacement for B1113155000

229-45356=11072352 Juki DDL-8700 Genuine Juki Thread tension assembly complete.

229-21803 tension disc stopper for Juki DDL lockstitch machines.

229-21704 tension spring A standard for Juki DDL lockstitch machines. For heavy duty type use B3114232000.

229-21605 = B3128012000 Juki check spring for DDL-8700.

229-21506=B3126012000 Tension disc for Juki DDL lockstitch machines.

229-21308 tension nut Juki DDL-8700 machine.

229-21209 Tension post for Juki DDL-8700 machine.

22906705 = 11141108 Needle bar for Juki DDL-8700 lockstitch machine to suit needle system 134R. For needle screw use SS7080510TP. For thread guide use 22906309. Use 22906002 for needle system 16x231.

Needle bar for Juki DDL-8700 lockstitch machine to suit needle system 16X231. For needle screw use SS7080510TP. For thread guide use 22906309. Use 22906705 for needle system 134R.

229-06101 Needle bar bush upper for Juki DDL-8700 lockstitch machine.

229-06200 Lower needle bar bush for Juki DDL-8700 lockstitch machine

B1521-155-000 screw for hand lifter Juki DDL-8700-7 machine.

SS-2110920-TP Needle plate screw Juki lockstitch

SS-4080620-TP Screw for fixed knife and feed dog. Juki DDL-8700, DDL-555.

SS-4110915-TP position finger holding screw for Juki DDL-8700 machine.

SS-4120915-SP face plate screw for Juki DDL-8700 machine.

SS-6060210-SP screws for fixing slide plate presser spring.

SS-6121860-SP Feed dial screw for Juki DDL-8700 lockstitch sewing machine.

SS-6700710-SH Oil sump drainage screw for Juki DDL-8700 lockstitch sewing machine

SS-7080510-TP Needle screw Juki

SS-7091110-TP Presser foot screw for Juki DDL-8700

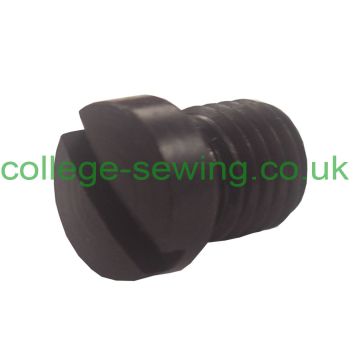

SS-7110540-SP Fixing screw for ruler stop seat Juki DDL-8700

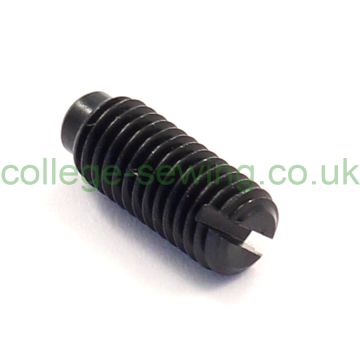

SS-8151550-SP Hand wheel screw for Juki DDL-8700 lockstitch machine.

229-06309 Needle bar thread guide for Juki DDL-8700, DDL-5550N-7 machine.

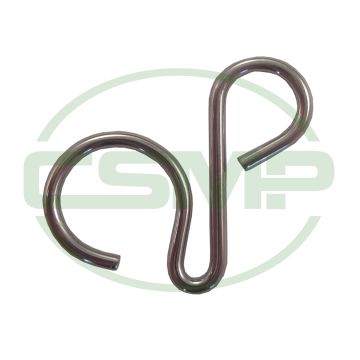

400-12444 Needle bar thread guide for Juki DDL-8700 lockstitch machine

229-07307 thread guide for Juki DDL-8700 machine.

229-20508 Juki DDL-8700 arm thread guide A

229-20607 Arm thread guide B for Juki DDL-8700

229-20706 Juki DDl-8700 two hole thread guide

150384101 Universal finger gauard will fit all types of industrial flat machines.

110-24700 Oil sump gasket for Juki DDL-8700 lockstitch sewing machine

110-47107 Oil sump cushion for Juki DDL-8700 lockstitch sewing machine

110-71362 Hand wheel assembly for Juki DDL-8700 lockstitch machine.

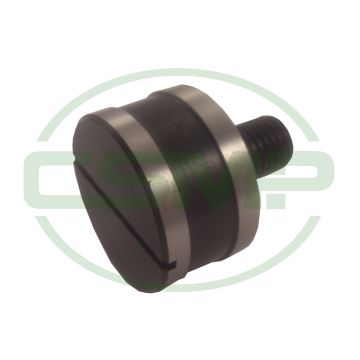

226-22401 Syncroniser boss for Juki DDL-8700 lockstitch

229-00609 Juki DDL-8700 thread take up cover

229-01300 slide plate holding spribg for Juki DDL-8700 machine.

229-02605 Ruler stop seat for Juki DDL-8700 lockstitch machine.

229-06457 Needle bar holding clamp Juki DDL-8700 machine.

229-07406 presser spring for Juki DDL-8700 machine.

229-07554 Presser foot regulating assembly for Jukfor Juki DDL-8700 lockstitch sewing machine.

22907802 Juki Foot lifting lever DDL-8700, DDL-5550N-7machines. For screw use B1521555000.

229-08354 Knee lifting cross rod assembly for Juk DDL-8700 lockstitch sewing machine.

229-08552 hand lifter cam assy for Juki DDL lockstitch machines.

229-11804 Feed regulating screw for Juki DDL-8700

229-11903 Feed dial for Juki DDL-8700 lockstitch sewing machine.

229-12000 Feed regulating pin for Juki DDL-8700 lockstitch sewing machine.

229-12109 feed regulating pin spring for Juki DDL-8700

229-12752 Feed Reverse lever assembly for Juki DDL-8700 machine. (Replaces 110-10600).

229-16407 Juki DDL-8700 position finger

22918072=11039070=22918064 Genuine Juki thread take up assy For Juki DDL-8700 machine.

229-20904 tension release pin Juki DDL lockstitch machines.

229-23056 oil pump assy for Juki DDL-8700 machine.

229-23205 Oil pump body cover for Juki DDL-8700 lockstitch sewing machine

229-23700 oil pump impeller for Juki DDL-8700 machine.

229-24153=11021151 oil return pipe assy for Juki DDL-8700 machine.

229-24708 Oil sight window for Juki DDL-8700, MO-6700 sewing machines.

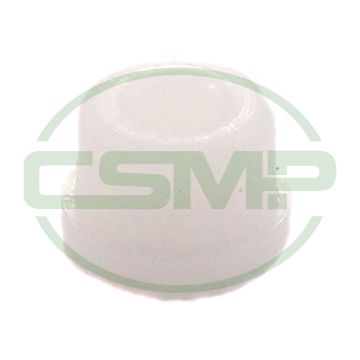

229-31208 Thread guide bushing for cotton stand.

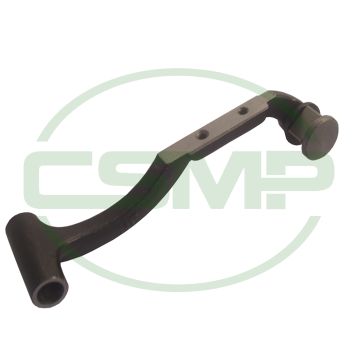

229-71857 Feed base assembly for Juki DDL-8700 lockstitch sewing machine

400-12126 Face plate gasket for Juki DDL-8700 lockstitch machine.

400-12129 Back cover gasket for Juki DDL-8700 lockstitch machine.

110-47107 Oil sump cushion for Juki DDL-8700 lockstitch sewing machine

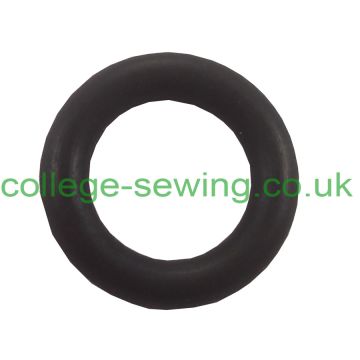

R0-0922702-00 Rubber feed dial o ring for Juki DDL-8700 lockstitch sewing machine.

R0098240100=R0108240100 oil sump drainage screw gasket for Juki DDL-8700, 8100 lockstitch machines.

RO-1952401-00 Oil sight rubber o ring seal for Juki DDL-8700, MO-6700 sewing machines.

143910-0-012 Rubber machine mounting hinge white colour. To be used with 143882-0-01 metal hinge 2pcs required per machine

S14420220C=SB1612001 Bobbin Winder to fit BROTHER flat bed machines - Has a smaller 62mm diameter drive wheel to fit under the Brother type Belt Guards. Fixes to the sewing table & runs off the machine drive belt (V-Belt).

110-75900 Front corner rubber cushion for Juki DDL-8700 machine

229-58052 Juki DDL-8700 Rubber hinge set complete

229-34509 Knee pad plate cover for Juki DDL-8700 lockstitch sewing machine

229-31703 Knee press lifter rod for Juki DDL-8100E, DDL-8700 lockstitch sewing machine

22934251 11023751 B34195520A0 Knee pad plate assembly for Juki DDL-8700 lockstitch sewing machine

TUBULAR two Pan Cotton Stand with mounting base - Holds two reels of sewing thread - Comes complete as per image & is easy to build and fit - Simply screw to the machine table top.

229-33451 Belt guard assembly for Juki DDL-8700 lockstitch sewing machine.

Syncroniser boss for standard type lockstitch machines like Juki DDL-8700 or Brother DB2-B737 machines.
