BROTHER UF-8920-001 2N DELUXE UNISON FEED MACHINE
Description / BROTHER UF-8920-001 2N DELUXE UNISON FEED MACHINE
Brother UF-8920-001 Nexio
- Twin Needle Direct Drive Flat-bed Unison-feed Stitcher with Thread Trimmer and Electric Bobbin Winder (Deluxe Spec.).
Wide arm pocket and digitalized management are standard. This is the new global standard of Brother's unison-feed sewing machine. Display panel screen and push buttons can be customized to the customer's needs for user-friendly operation.

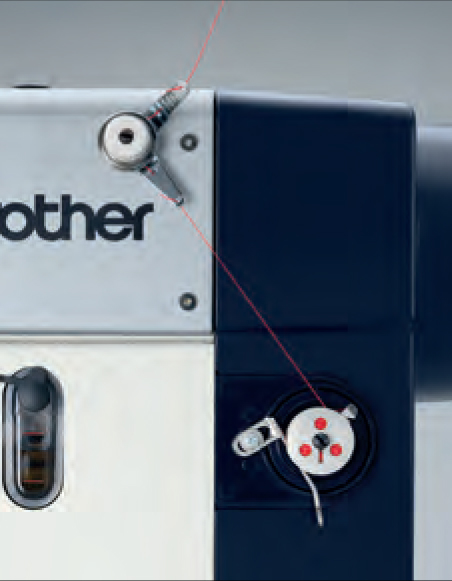

Equipped with the Electric Bobbin Winder
The bobbin winder is equipped with the electric motor, which makes it possible to wind thread even when the machine is stopped. In addition, the constant winding speed stabilizes the thread tension, which leads to improved sewing quality. Bobbins are available in both slotted and non-slotted types.
Large Fabric Is Easy to Handle Due to Its Wide Arm Pocket
The 400mm wide arm pocket can easily handle large fabrics without stress.
In addition to the LED light at the base of the needle bar, a highly illuminated LED light is also located at the foot of the needle to help improve the operator's work efficiency.
Digitalized Numeric Control for Enhanced Sewing Reproducibility
Thread tension, alternative presser foot movement, presser bar pressure, feed pitch, and sewing speed are electronically controlled and can now be set or adjusted digitally.

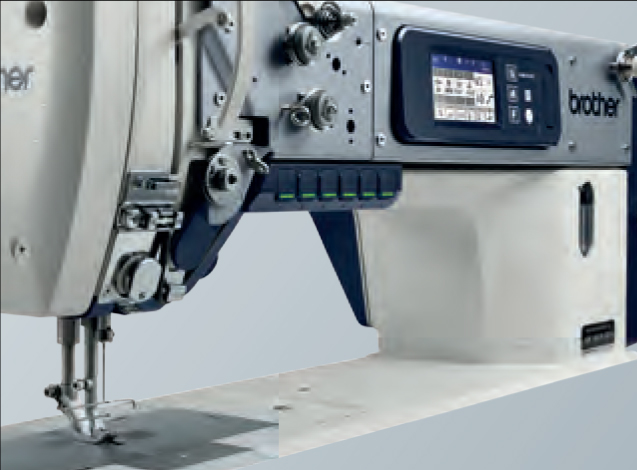

Multi-Functional Switches for Improved Operability
Upper Thread Presser Is Standard Equipment
The upper thread presser can be set to hold the upper thread at the beginning of sewing.
Pressor-Foot Height Sensor Prevent Work Errors and Optimizes Sewing Parameters During Sewing
This feature measures the height of pressor-foot at the beginning of sewing and it stops with the error if the height was out of specific range. During sewing, the machine detects height changes and automatically changes the thread tension, alternating presser foot movement, pressor-foot pressure, and sewing speed.

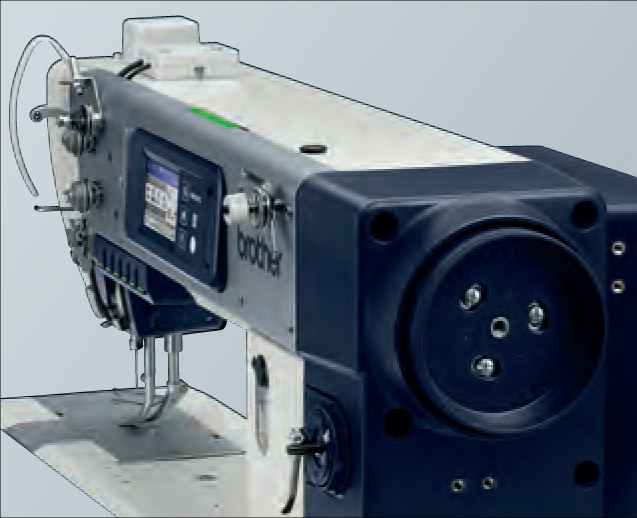

More Comfortable with Connectivity Equipped with two USB ports
It is possible to easily copy sewing data and adjustment values between sewing machines using a USB memory device. Software upgrades can also be done easily. The USB port on the control box is also capable of power supply(5V/2A).

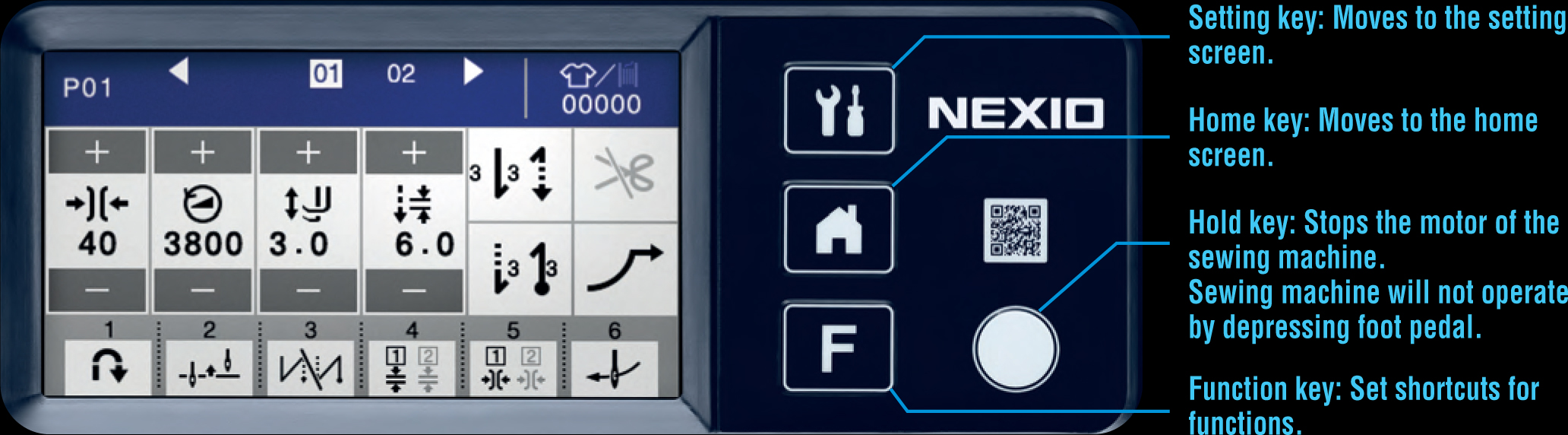

Color LCD Touch Panel
Two home screens can be selected for each application. It is also possible to customize the 6 available switches and see the current setting.
In addition, it has a lock function for various settings to prevent operator changes and errors from occurring.

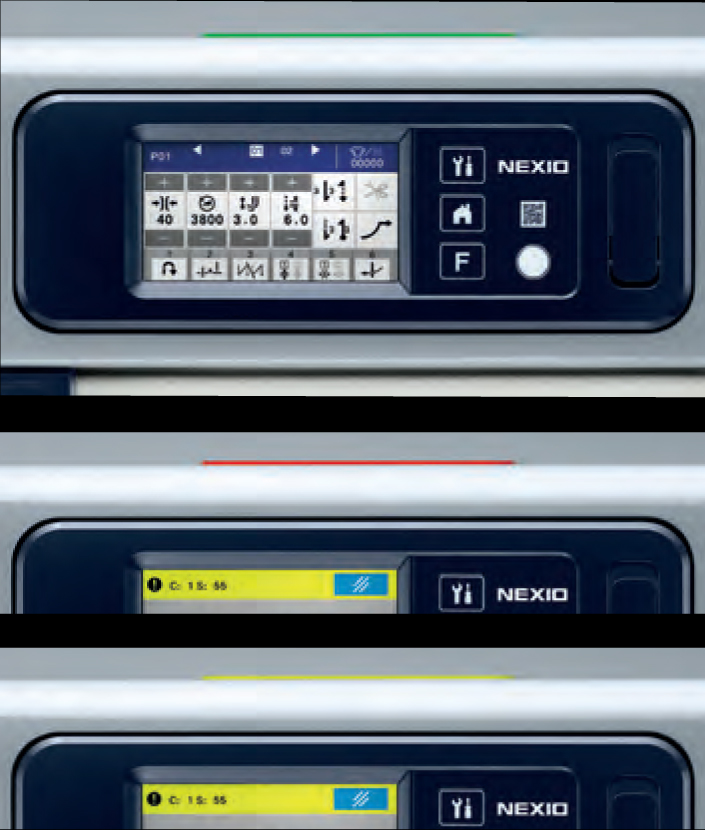

Status LED
Three color LEDs allow you to check the status of the sewing machine.

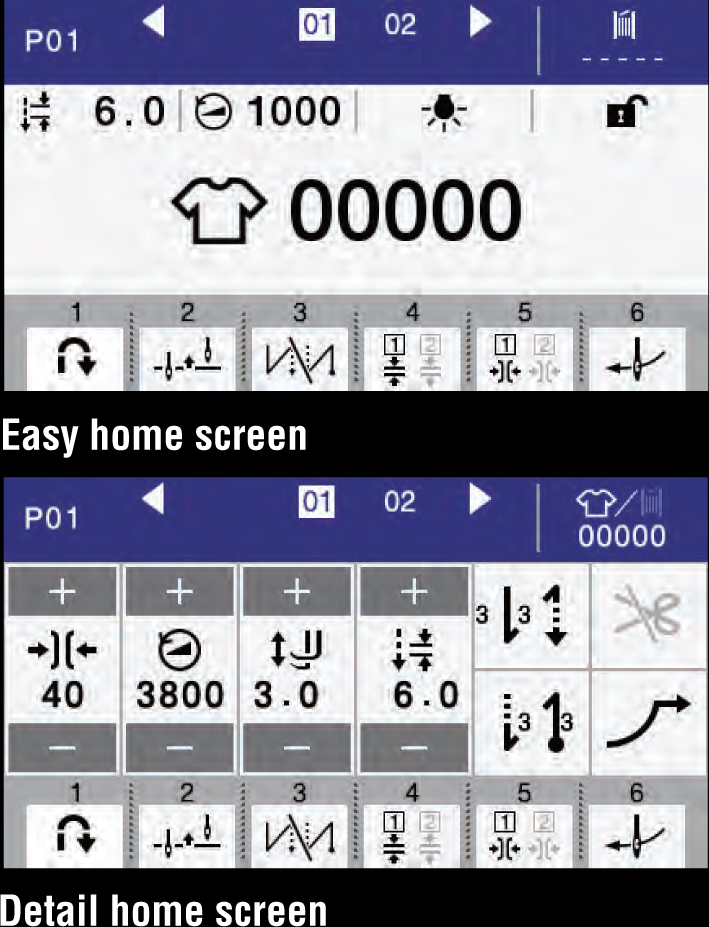

Home Screen
It can be selected according to your requirements.
Protect Settings
A Lock out function can be enabled and prevents changes to preset values for sewing. This allows for stable sewing at a predetermined setting value.
Program Creation
Maximum of 15 programs can be created and each program can have up to 20 steps. Programs and steps can be assigned any description preferred to prevent selection errors.
Display QR Code
QR codes are displayed in case of errors, so that the latest information can be checked on your mobile phone or tablet.
Technical Specification
| Model name | Brother UF-8920-001 |
|---|---|
| Subclass | Deluxe |
| Stitch | Twin needle unison feed |
| Electric Bobbin Winder | Fitted |
| Skip-stitch detection device | - |
| Max. sewing speed | 3,400sti/min |
| Max. back tacking speed | 2,000sti/min |
| Max. stitch length | 9mm |
| Presser foot height | 20mm |
| Max. interaction lift stroke | 9mm |
| Presser bar pressure | 70~125N |
| Needle thread tension | 0.7~9.5Nm |
| Arm pocket size | 400mm |
| Hook size | 28mm |
| Standard twin needle gauge | 10mm |
| Min. needle gauge | 3mm |
| Max. needle gauge | 35mm |
| Needle bar stroke | 40mm |
| Needle (DBx1 / DPx5) | 134×35 Nm130 (#21) Nm125~200 (#20~#25) |
| LED light | LED for sewing area and arm pocket are standard equipment |
| Number of programs | 15 programs (each program has 20 steps) |
| Number of patterns | 9~50 patterns*1 |
| Motor | AC servo motor (1kW) |
| Power | Single phase, 3-phase: 200V-240V |
More Information
| Part No | BROUF8920001 |
|---|---|
| Weight (KG) | 32.000000 |
| Manufacturer | Brother |
