BROTHER UF-8910-101 1N PREMIUM UNISON FEED MACHINE

Contact Us for Pricing and Availability
Part No
BROUF8910101

Brother UF-8910-101

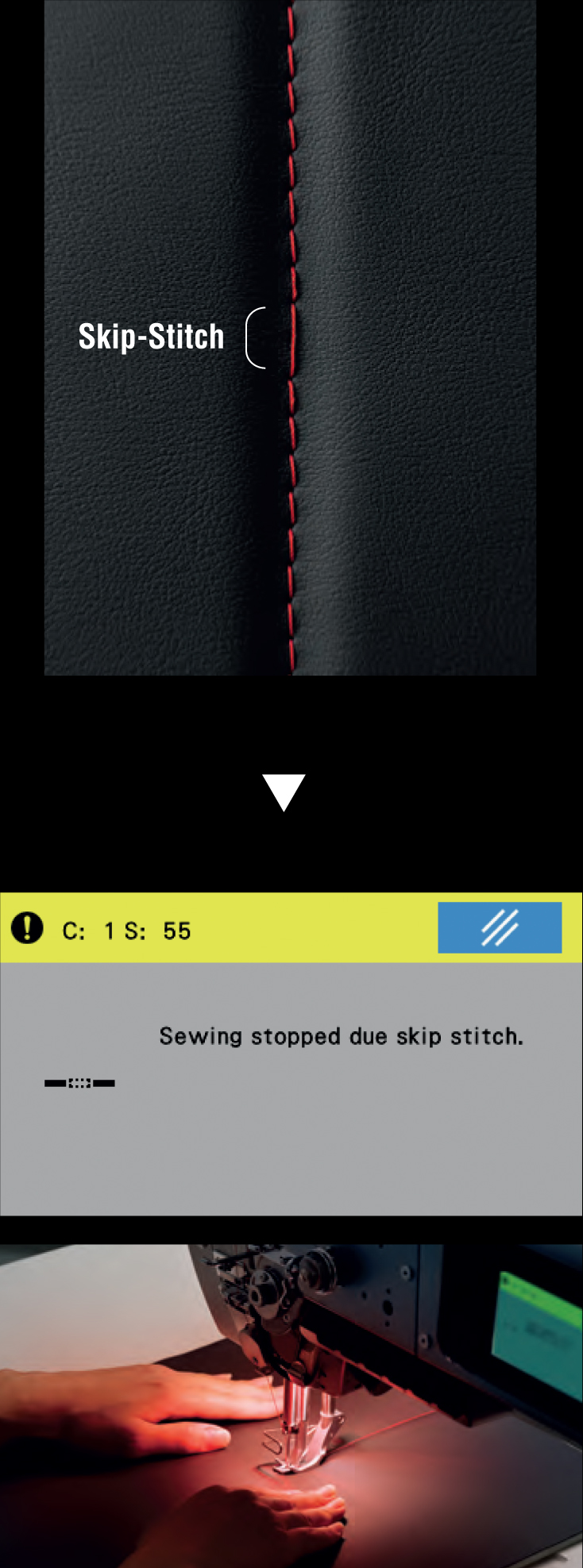

Premium Single needle, direct drive, flat-bed, unison-feed machine with thread trimmer and Electric Bobbin Winder and Skip-stitch detection device

The new brother electronic digital unison feed machine is the result from more than 110 years of experience in innovation in industrial sewing machine manufacturing.

  • Customizable, easy to use and to program
  • Three different specifications to fit all needs; many functions are standard
  • New innovative and unique functions

From luxury leather production to car seat, car interior, airbag, and upholstery.

The new unison feed machine of brother is covering a large variety of different applications.

Wide arm bed and digitized numerical management are standard. This is the new global standard of Brother's unison-feed sewing machines. Panels and buttons can be customized to the customer's needs for user-friendly operation.

  • Color LCD Touch Panel that can be customized to suit your usage.
  • Digitizing adjustment for enhanced sewing reproducibility, helpful for all repeated orders production, and useful to reproduce machine setting.
  • Large fabric is easy to handle due to its wide arm bed. Essential for airbag, big bags or upholstery production.

Features

Color LCD touch panel that can be customized to suit your usage.

Two home screens can be selected for each usage.
It is also possible to customize the six switches and see the current setting values. In addition, it has a function to lock various setting changes to prevent operational errors from occurring.

Status LED

Three color LEDs allow you to check the status of the sewing machine. Very easy to identify from distance status of each machine.

Digitizing adjustment for enhanced sewing reproducibility

Thread tension, alternating presser foot movement, the presser bar pressure, feed pitch and the sewing speed can now be digitalized.
Adjustments that used to depend on hu-man senses can now be set numerically with more precision, and identical results on different machines.

Upper thread holding device is equipped as standard

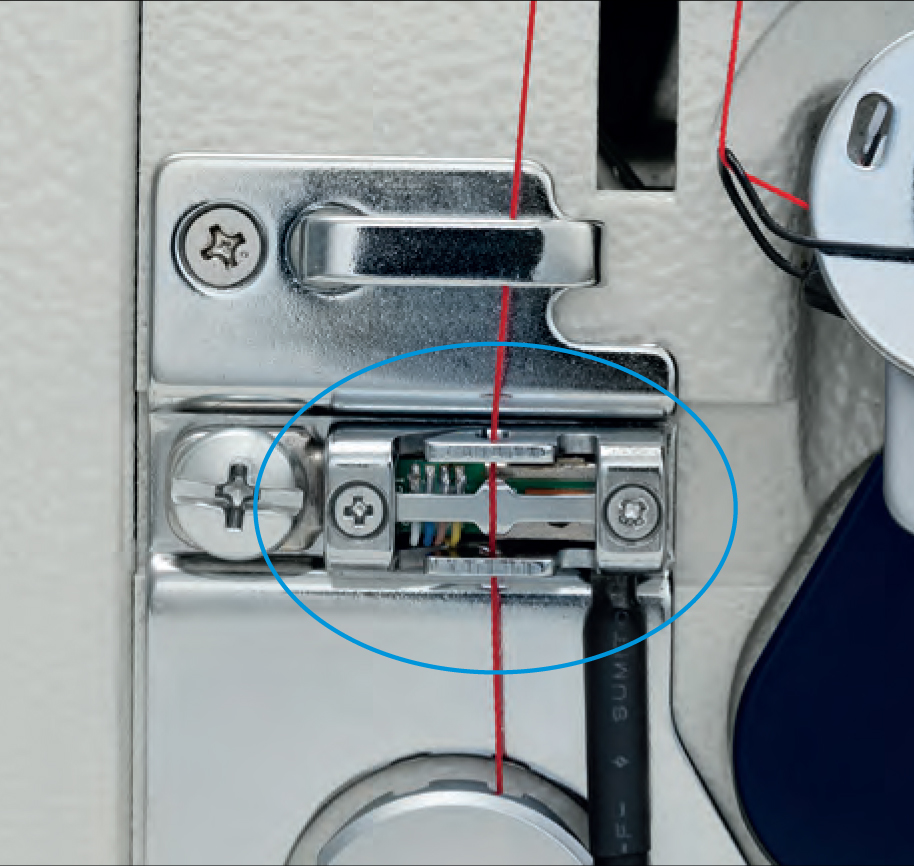

The upper thread holding device can be set to maintain the upper thread in the back of the fabric at the beginning of sewing.

Large fabric is easy to handle due to its longer arm bed

The 400mm longer arm bed can easily handle large fabrics without stress.
Two highly illuminated LED lights are installed to help improve the operator‘s work efficiency.

Equipped with two USB ports

It is possible to easily copy sewing data and adjustment values between sewing machines using a USB memory.
Software upgrades can also be done simple. The USB port on the control box is also capable of power supply.

Productivity improvement with loT capabilities

The visualization by connecting sewing machine and computer technology enables the customer to analyze, manage processes and speed up productivity improvement and maintenance work. The optional LAN port can be used to expand the functionality to match the customer‘s needs.


Technical Specification

Model name Brother UF-8910-101
Subclass Premium
Stitch Single needle unison feed
Electric Bobbin Winder Fitted
Skip-stitch detection device Fitted
Max. sewing speed 3,800sti/min
Max. back tacking speed 2,000sti/min
Max. stitch length 9mm
Presser foot height 20mm
Max. interaction lift stroke 9mm
Presser bar pressure 70~125N
Needle thread tension 0.7~9.5Nm
Arm pocket size 400mm
Hook size 28mm
Standard twin needle gauge -
Min. needle gauge -
Max. needle gauge -
Needle bar stroke 40mm
Needle (DBx1 / DPx5) 134×35 Nm130 (#21)
Nm125~180 (#20~#24)
LED light LED for sewing area and arm pocket are standard equipment
Number of programs 15 programs (each program has 20 steps)
Number of patterns 9~50 patterns*1
Motor AC servo motor (1kW)
Power Single phase, 3-phase: 200V-240V

*1 Varies depending on the number of stitches per pattern and the total number of needles

More Information
Part NoBROUF8910101
Weight (KG)32.000000
Manufacturer Brother
