Description / YAMATO CZ 6120 Y5DF OVERLOCK HEAD ONLY
Yamato CZ-6120-Y5DF
- 2-Needle, 4-Thread Overlock Machine.
The Yamato CZ-6120-Y5DF is a versatile 2-needle, 4-thread overlock machine designed for general seaming and the attachment of reinforcing tape. Built with Yamato’s advanced technology, it delivers high-quality stitching with excellent durability and reliability at an economical price.
Key Features:
- Adjustable Overlock Width: Easily adjustable from 5 mm to 8 mm by any operator
- Wide Fabric Compatibility: Suitable for both thin and thick knitted outerwear and innerwear
- Tape Attachment Capability: Presser foot includes a passage for tape feeding
- Low Noise & Low Vibration: Ensures stable operation and long service life
- Multi-Purpose Use: Ideal for perfect seaming and stitching across various applications

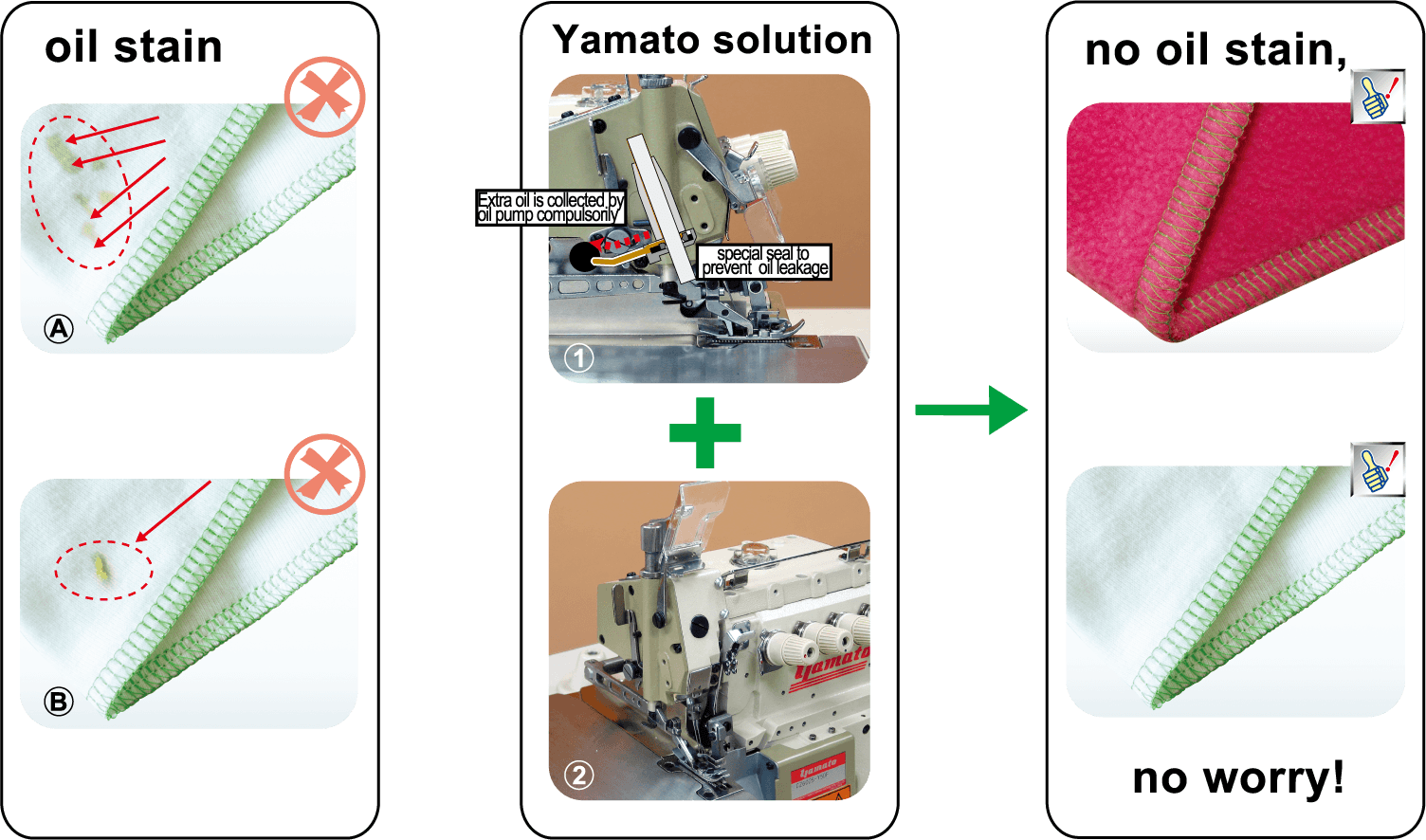

Oil Leakage Prevention:
The CZ series features Yamato’s patented pump system for collecting excess oil, combined with a sealed needle bar mechanism adopted from the high-end Japan-made AZ series. This design minimizes oil leakage around the needle bar area, preventing oil stains on garments and improving overall product quality.
Technical Specification
| Model | Yamato CZ-6120-Y5DF |
|---|---|
| Needle System | DCx27 |
| Number of Needles | 2 |
| Number of Threads | 4 |
| Needle distance (mm) | 2.4 |
| Over-edge seam width (mm) | 5, 6, 7, 8 |
| Stitch length (mm) | 1.0 - 4.0 |
| Feed regulation | Push button |
| Differential ratio | 1:0.6 - 1:2.3 |
| Differential feed regulation | Lever |
| Presser foot lift (mm) | 6.0 |
| Needle stroke (mm) | 23.7 |
| Machine speed (sti/min) | 6,500 |
| Applications | For General Seaming, for Light to Heavy Weight Material |
More Information
| Part No | CZ6120Y5DF |
|---|---|
| Weight (KG) | 32.000000 |
| Manufacturer | Yamato |
