Description / UY113GS SIZE 120 PACK OF 10 NEEDLES GROZ BECKERT

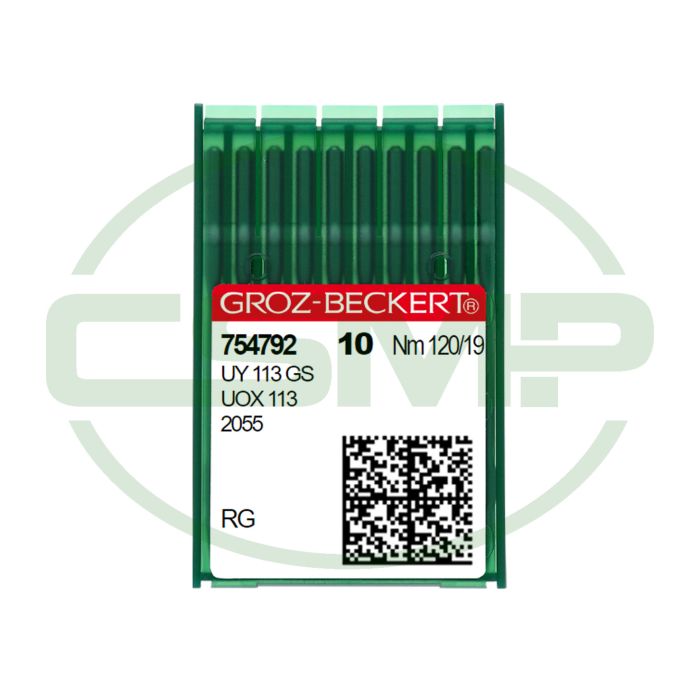

Groz Beckert - UY 113 GS/2055/UOX113 - NM 120 / Size 19 - RG (Normal round point with small ball) Packet of 10 Needles.
RG (Normal round point with small ball)
- Slightly rounded shape of the point
- Suitable for knitted and woven fabrics and microfiber
- Standard point for chainstitch as well as single and multihead embroidery
- Perfectly suited for button sewing
Spiral groove
On needles with a spiral groove, the long grooves do not run straight along the needle blade, but in a spiral or helical shape. They are used in inline chainstitch machines where the hook or looper moves along the sewing direction and the thread is guided from the front of the machine to the needle. As threading is carried out laterally from right to left, the thread runs diagonally over the needle blade. Therefore, the spiral groove has the advantage that the thread can lie in the spiral groove during needle penetration.

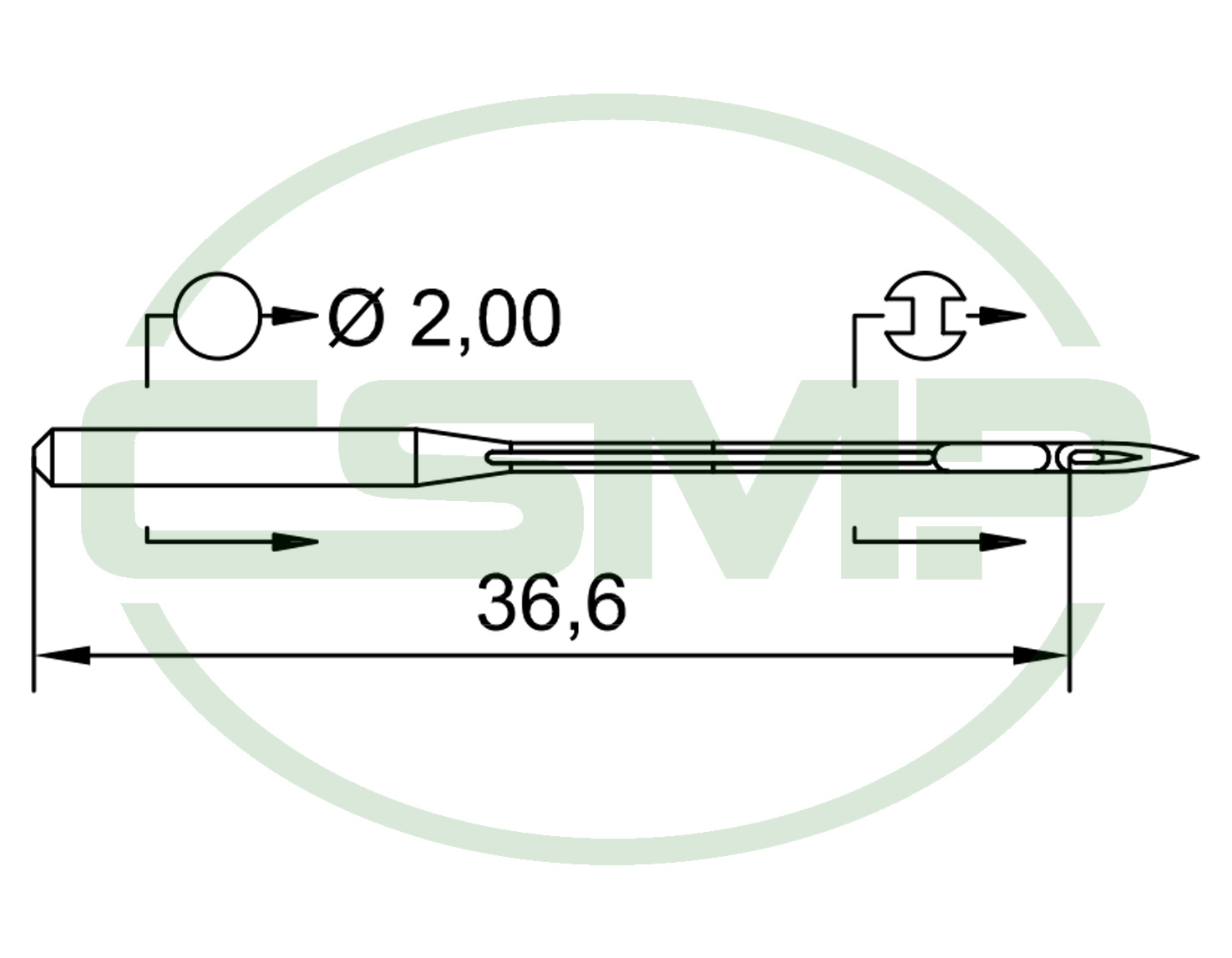

Needle Specification
| Customary Needle Designations | UOX 113, 2055, 4900, 5250, SY 7090, SY 7140, UY113GS, 26:65 | |
|---|---|---|
| Further Point Designations | STU, STUB, S BALL, SET RT, EH, H SET, NEW RD, R STU, R | |
| NM / Size | NM: 120 / Size: 19 | |
| Type of Coating | Chromium | |
| Shank-ø | 2 mm | |
| Overall Length | 44.9 mm | |
| Length to Eye | 38.9 mm | |
| Needle Form Description | Straight needle with double groove and scarf | |
| Technical Sewing Application | Double chain stitch | |
| Stitch Type Class | 400 | |
| Special(s) | Spiral groove | |
| Recommended For | Fine knitwear, Woven fabrics, Thin leather | |
| Examples of Use | Shirts, Blouses, Trousers |
More Information
| Part No | UY113GSX120GB |
|---|---|
| Weight (KG) | 0.015000 |
| Manufacturer | Groz Beckert |
| Needle Size | NM 120 / Size 19 |
| Mat. No. | 754792 |
