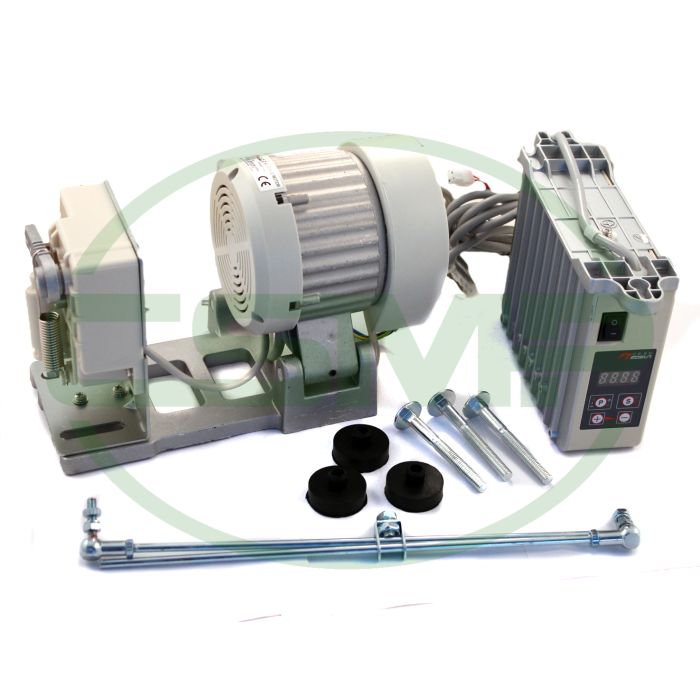

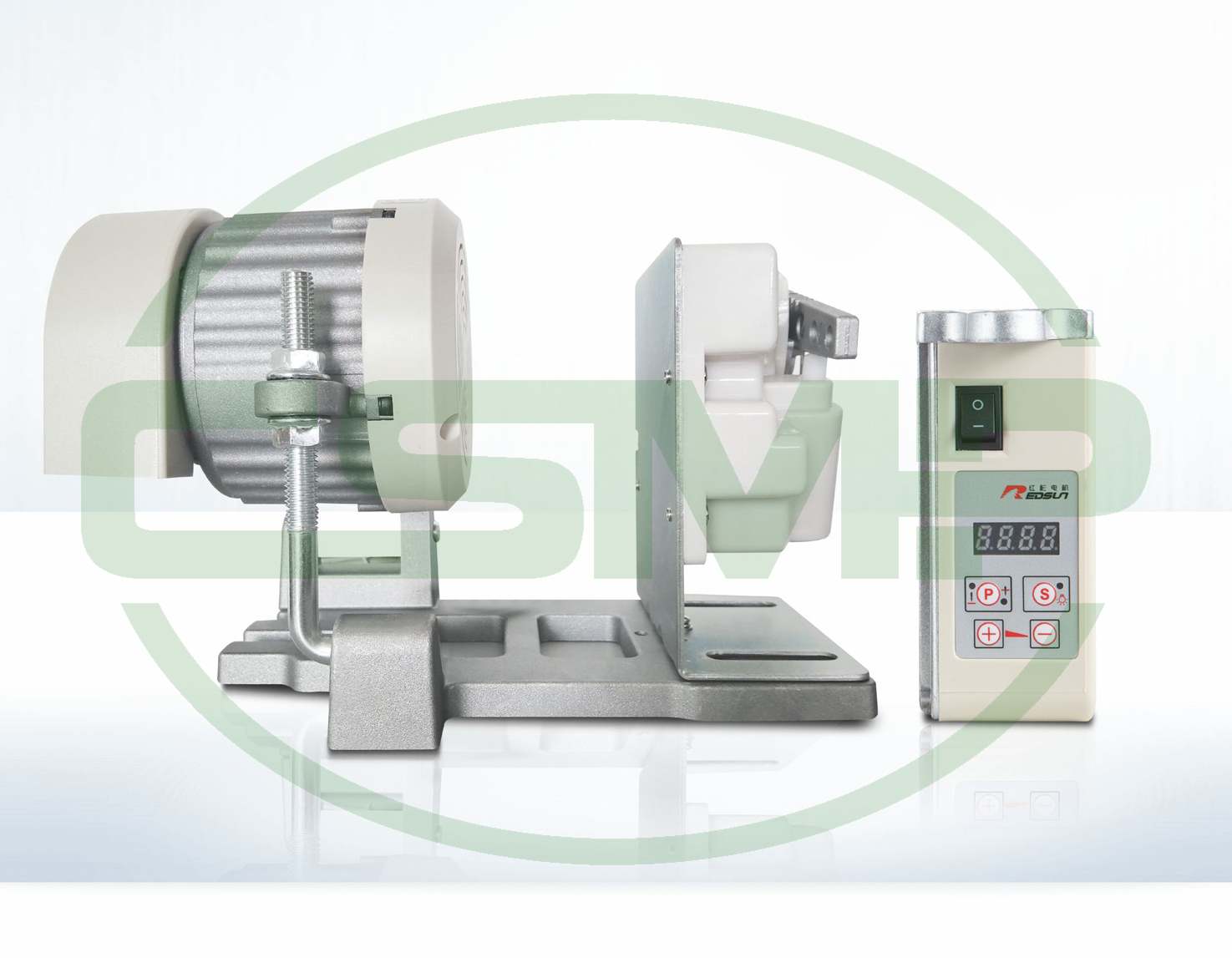

R9-750E REDSUN 750W SERVO MOTOR

Part No R9750E
Redsun R9-750E - 750W V-Belt Industrial Sewing Machine with Energy-Saving Servo Motor. The Redsun R9-750E features a V-belt type energy-saving servo motor, ideal for efficient power transmission in a variety of sewing machines. Compared to traditional clutch motors, it can reduce electricity consumption by over 60%. Speed is easily adjustable via panel buttons, and with the synchronizer component (Part No: SN15), the needle position can be precisely controlled in either the up or down position.
£99.00
In Stock

Description / R9-750E REDSUN 750W SERVO MOTOR

Redsun R9-750E
- 750W V-Belt Industrial Sewing Machine with Energy-Saving Servo Motor.

The Redsun R9-750E features a V-belt type energy-saving servo motor, ideal for efficient power transmission in a variety of sewing machines. Compared to traditional clutch motors, it can reduce electricity consumption by over 60%. Speed is easily adjustable via panel buttons, and with the synchronizer component (Part No: SN15), the needle position can be precisely controlled in either the up or down position.


Technical Specifications

Model Redsun R9-750E
Power 750
Speed 200–5,500 RPM
Voltage 180–240 V
Torque 3.7 Nm
Frequency 50 / 60 Hz

Product Attachments

No attachments found.

More Information

Part No R9750E
Weight (KG) 4.900000
Manufacturer Redsun
