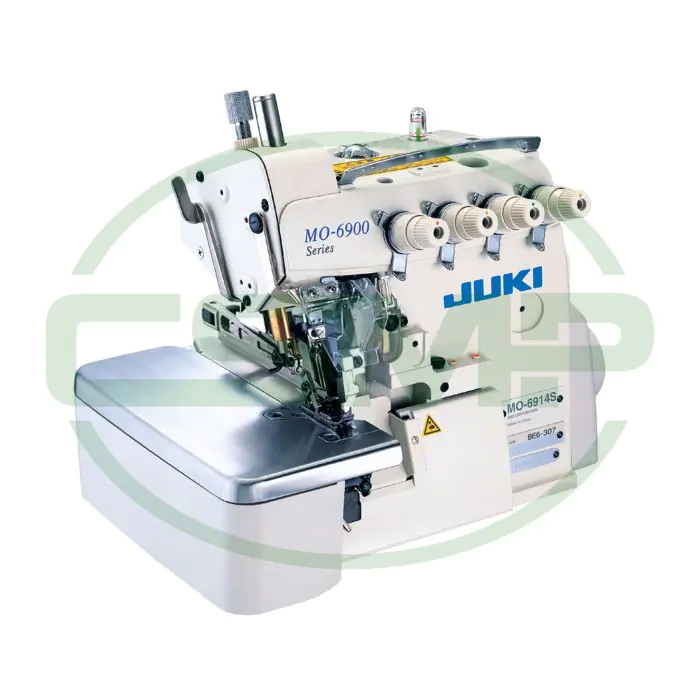

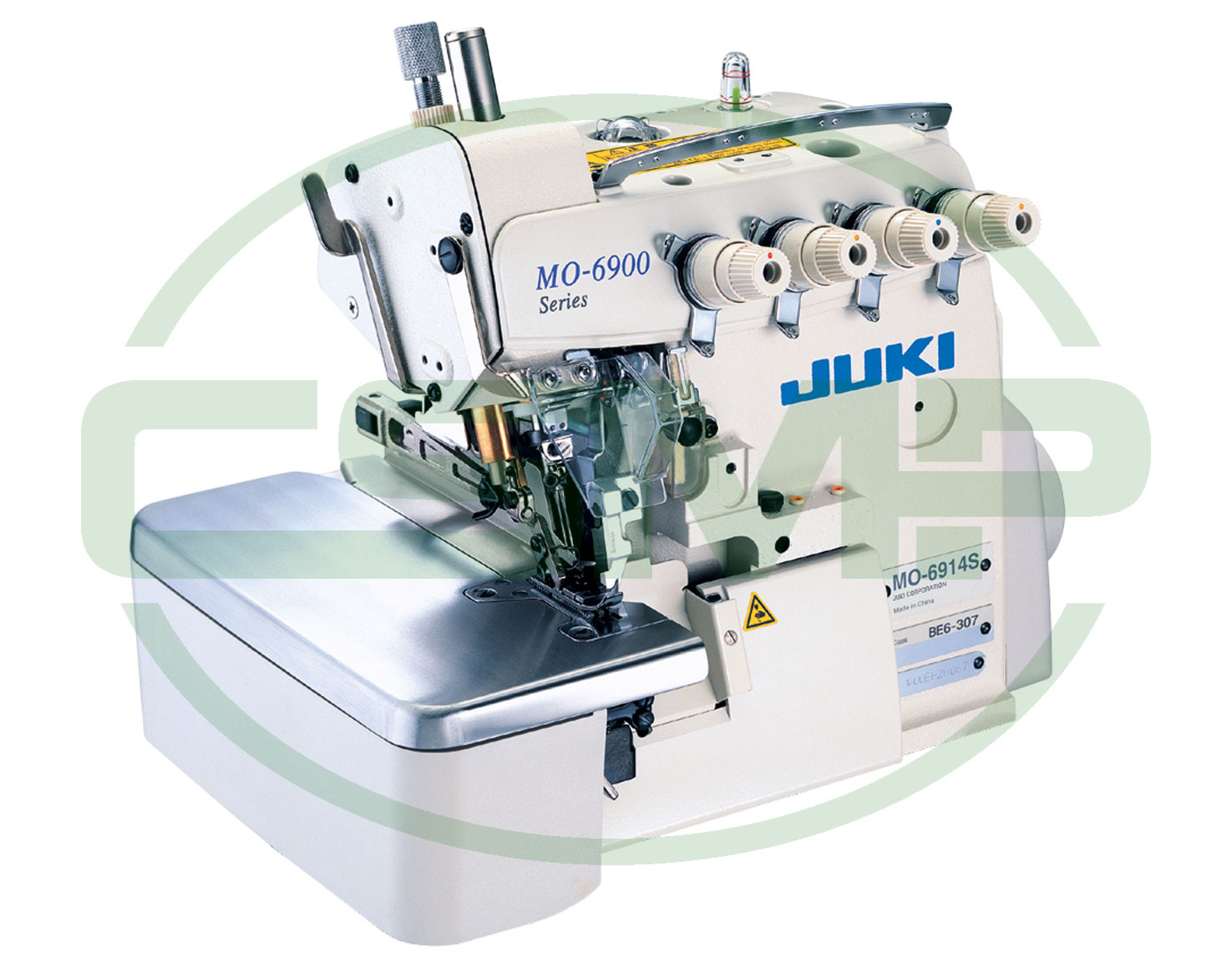

JUKI MO-6916R-DD6-300 TOP FEED OVERLOCK LIGHT TO MEDIUM

Excellent bottom and variable top feed mechanisms

• The locus of the top feed dog increases the surfaces of the top feed dog that horizontally synchronize with the bottom feed dog, to reliably feed the materials without damaging them.
  The feed mechanism smoothly feeds light-weight materials softly or feeds heavy-weight materials with an increased cloth-biting force.

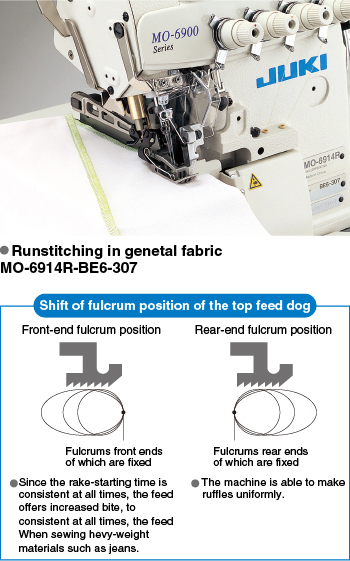

• The fulcrum of the top feed locus can be set at the best-suited position according to the material or process.

The machine has been developed with the intention of providing an extended service life

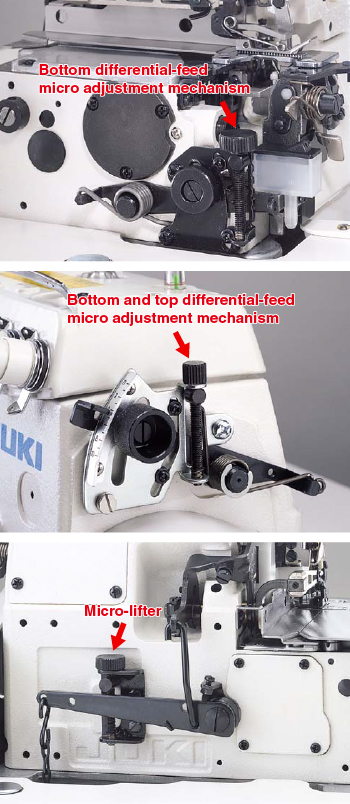

• The bottom and top feeds are equipped with separate differential feed micro-adjusting mechanisms. Various adjusting mechanisms to adjust the feed to ideally match the material being sewn are equipped as standard, such as the bottom feed dog inclination-adjusting mechanism and the external differential feed-increasing mechanism.
• Comfortable operation is all but guaranteed, by a wider area around the needle entry, the adoption as standard of a micro-lifter feature that offers improved responsiveness to materials and provides the operator with upgraded operability, and by the reduction of operating noise and vibration, which has been achieved by designing an optimally balanced machine.

Further increased reliability

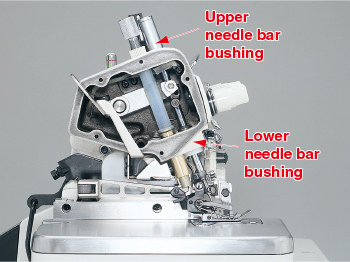

The introduction of a shield-structured needle bar mechanism and upper and lower needle bar bushings, contributes to increased durability and reliability.

Additionally, the machine incorporates an improved upper looper unit as well as coming standard with a cartridge type oil filter and cooling fan, thereby ensuring enhanced reliability.

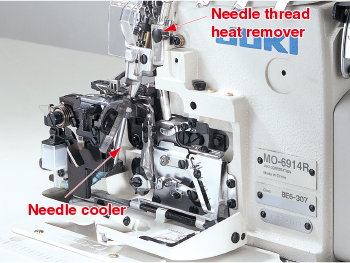

The needle thread heat remover and needle cooler are equipped as standard

To offer improved sewing capabilities as well as to prevent stitching misshapes, the machine is equipped as standard with the needle thread heat remover and needle cooler.

Devices intended for conventional JUKI machines are also interchangeable

Gauges and devices you have used with your existing JUKI machines are also interchangeable with no additional machining required.
This eliminates both the waste of resources and unwanted extra costs.
