JUKI MO-6804S-0E4-30H 3 THREAD OVERLOCK 6800 SERIES
Description / JUKI MO-6804S-0E4-30H 3 THREAD OVERLOCK 6800 SERIES
Juki MO-6804S-0E4-30H
- High-speed, 3-thread 1-needle, Light- to Medium-weight Overlock / Safety Stitch Machine.
This advanced overlock / safety stitch machine is easier to use and promises superior cost effectiveness.
The MO-6800S Series responds to various kinds of sewing materials and processes, producing delicate and beautiful soft-to-the-touch seams while further reducing operating noise as well as increasing durability. This advanced overlock / safety stitch machine is easier to use and promises superior cost-effectiveness.
The machine achieves beautifully finished seams of improved quality even when run at a high speed
The machine is widely applicable to the sewing of light- to heavy-weight materials. Since the machine is provided with a needle thread take-up mechanism and a looper thread take-up lever, it ensures high-quality, well-tensed and soft seams with a beautiful texture which flexibly correspond to the elasticity of the materials even when run at speeds as high as 7,000 sti/min. In addition, the machine has a wider and brighter needle entry and provides improved responsiveness to the materials, thereby helping the operator use the machine more easily. The optimally-balanced design of the machine reduces both operating noise and vibration, contributing to more comfortable sewing work.
The machine is provided with functions which contribute to easier operation

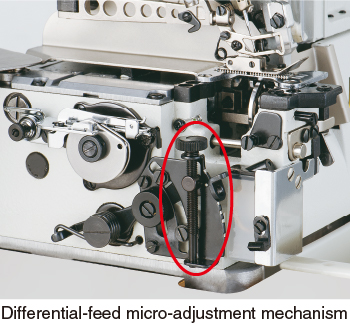

The differential-feed micro-adjustment mechanism, external increasing of the differential feed ratio and the main feed dog height can all be adjustable on the front face of the sewing machine with a screwdriver. The machine is provided as standard with functions which enable easy and best-suited adjustments according to the material to be used.
Subclass Specification
| Model | Juki MO-6804S-0E4-30H |
|---|---|

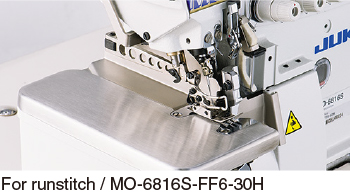

| Seam | For runstitching in general fabric |
| Material | Light- to Medium-Weight |
| Number of Needles | 1 |
| Number of threads | 3 |
| Needle Gauge | - |
| Overedging Width | 4.0 |
| Number of feed dog rows | 2 |
| Stitch Length | 3.8 |
| Bottom differential-feed ratio | 1:0.7~1.2 |
| Presser lifting amount | 6.0 |
| Needle System | DCx27 #11 |
| Max Sewing Speed | 7,000 |
* “sti/min” stands for “Stitches per Minute”
Subclass Specification
| Model | Juki MO-6804S |
|---|---|
| Stitch type | 1-needle overlock |
| Stitch style in the U.S.A. | 504 |
| Max. sewing speed | 7,000sti/min* |
| Stitch length | 0.6~3.8 (4.5)mm |
| Needle gauge (mm) | - |
| Overedging width (mm) | 1.5, 4.0 |
| Differential feed ratio | For gathering 1:2 (Max. 1:4), For stretching 1:0.7 (Max. 1:0.6) |
| Needle bar stroke | 24.5mm (60H:27.0mm) |
| Inclination angle of the needle | 20° |
| Needle bar bushing | Lower bushing method |
| Needle | DC×27 (excluding some subclass model) |
| Max. lift of the presser foot | 7mm (excluding some subclass model) |
| Max. presser foot pressure | 63.7N (6.5kgf) |
| Stitch adjusting method | By push-button |
| Differential-feed adjusting method | By lever (with micro-adjustment) |
| Weight of the machine head | 27kg |
| Lubrication | Automatic |
| Lubricating oil | JUKI Machine Oil 18 (equivalent to ISO VG18) |
| Needle cooler | Provided as standard |
| Needle thread heat remover | Provided as standard |
| Micro-lifter | Option |
* “sti/min” stands for “Stitches per Minute”
More Information
| Part No | JUKIMO6804S0E430H |
|---|---|
| Weight (KG) | 32.000000 |
| Manufacturer | Juki |
