JUKI MB-1373 CHAINSTITCH BUTTON SEWING MACHINE HEAD ONLY
Part No
JUKIMB1373
Juki MB-1373
Single-thread, Chainstitch, Button Sewing Machine
Contact Us for Pricing and Availability
Description / JUKI MB-1373 CHAINSTITCH BUTTON SEWING MACHINE HEAD ONLY
Juki MB-1373
Single-thread, Chainstitch, Button Sewing Machine
The sophisticated-form machine with excellent operability and productivity.
The single-thread, chainstitch, button sewing machine, which is frequently used for sewing buttons on men's wear and blouses under different sewing conditions, has been redesigned with its capabilities upgraded.

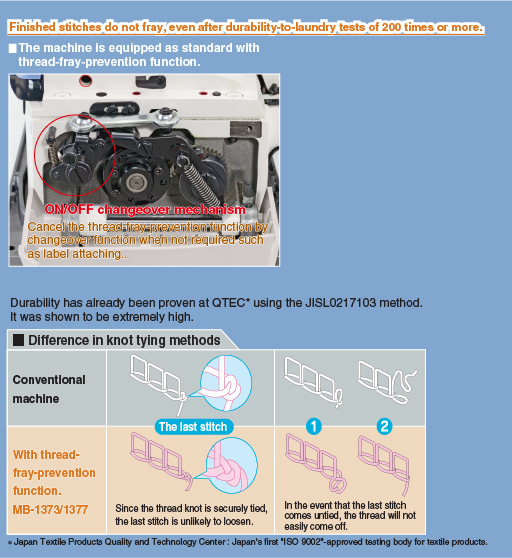

Thread-fray-prevention ON/OFF changeover mechanism
The machine is provided as standard with a "thread-fray-prevention ON/OFF changeover mechanism” to help produce beautiful seams with added durability.
Speedy sewing
The machine sews buttons with an optimum number of stitches; 8, 16 or 32, according to the sewing conditions.
Attachments
The attachments used for your conventional machines are applicable as they are.
Technical Specification
| Model name | Juki MB-1373 |
|---|---|
| Max. sewing speed | 1,500sti/min* |
| Number of stitches | 8, 16 and 32 stitches |
| Needle (at the time of delivery) | TQ×1(#16)#14~20 |
| Feed length (crosswise feed) | 2.5~6.5mm |
| Feed length (lengthwise feed) | 0~6.5mm |
| Stitching shape |  |
| Thread-fray-prevention ON / OFF changeover mechanism | Provided as standard |
| Stitching shape changeover type | - |
| Applicable button | Round-shaped flat button (2-holed, 4-holed) |
| Shank button, Wrapped-around button, Snap, Label, Metal button, Stay button (exclusive attachments have to be used) | |
| Button size | φ10~28mm |
| Thickness of button | 1.8~3.5mm (options max. 5mm) |
| Needle bar stroke | 48.6mm |
| Lift of the presser foot | 9mm |
| Sewing system | Single thread chainstitch |
| Lubrication | By an oiler |
| Lubricating oil | JUKI New Defrix Oil No.1 (equivalent to ISO VG7) |
| Machine head weight | 24kg |
| Power requirement / Motor used | Single- or 3-phase / 200W (1/4HP), General-purpose motor |
*"sti/min" stands for "Stitches per Minute."
More Information
| Part No | JUKIMB1373 |
|---|---|
| Weight (KG) | 31.000000 |
| Manufacturer | Juki |
