Description / JUKI LZH-1290U ZIG ZAG MACHINE HEAD ONLY
Juki LZH-1290U
- 1-needle, Lockstitch, Zigzag Stitching Machine with Large Hook

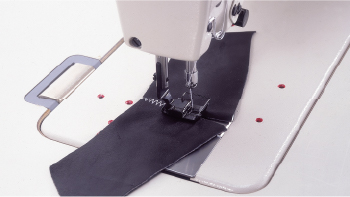

Wider zigzag width

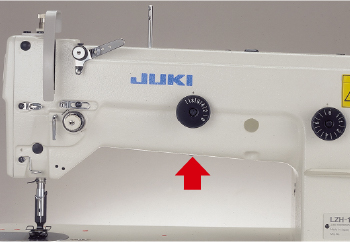

The machine offers outstanding capabilities for the sewing of sports shoes and leather shoes that require a wider zigzag width. The zigzag width can be quickly and easily adjusted by the dial mounted on the front face of the machine.

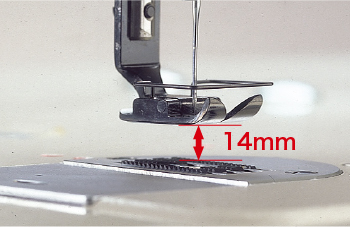

Higher lift of the presser foot
To ensure smooth sewing of heavy materials, the lift of the presser foot is as high as 14 mm (13 mm for the LZH-1290-7).
Consistent sewing performance at a high speed
With its newly incorporated triangular cam, the machine uniformly tenses thread in zigzag strokes regardless of the needle position, and the needle always enters the material at right angles. This prevents the needle from swaying during zigzag stitching.
Technical Specification
| Model name | Juki LZH-1290 |
|---|---|
| Type | - |
| Max. sewing speed | 2,000 sti/min* |
| Max. stitch length | 6 mm (normal / reverse feed) |
| Zigzag width | Max. 8 mm (adjustable to 10 mm) |
| Zigzag width adjustment method | By dial |
| Needle bar stroke | 35 mm |
| Lift of the presser foot | By knee lifter : 14 mm By hand lifter : 6 mm |
| Thread take-up | Link type |
| Hook | Horizontal-axis full-rotary double-capacity hook |
| Needle (at the time of delivery) | SY1906 Nm90~110 (standard Nm110) |
| Thread | #50~#8, B33~B92, Nm=120/3~30/3 |
| Lubrication | By an oiler (hook : automatic) |
| Lubricating oil | JUKI New Defrix Oil No.1 (equivalent to ISO VG7) |
| Distance from needle to machine arm | 295 mm |
| Bed size | 477 mm×178 mm |
| Weight of the machine head | 35 kg |
| Automatic reverse feed function | - |
More Information
| Part No | JUKILZH1290U |
|---|---|
| Weight (KG) | 34.000000 |
| Manufacturer | Juki |
