JM120LR JEMA HOT & COLD CUT STRIP CUTTER
Description / JM120LR JEMA HOT & COLD CUT STRIP CUTTER

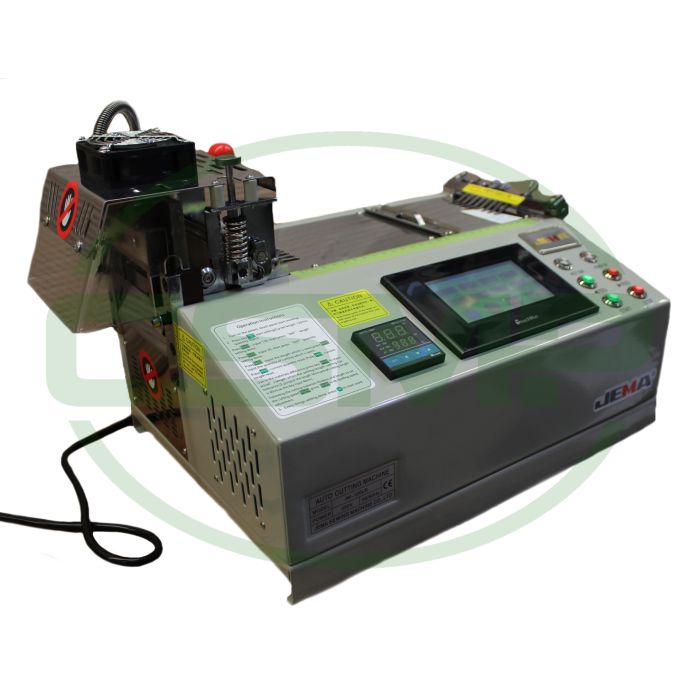

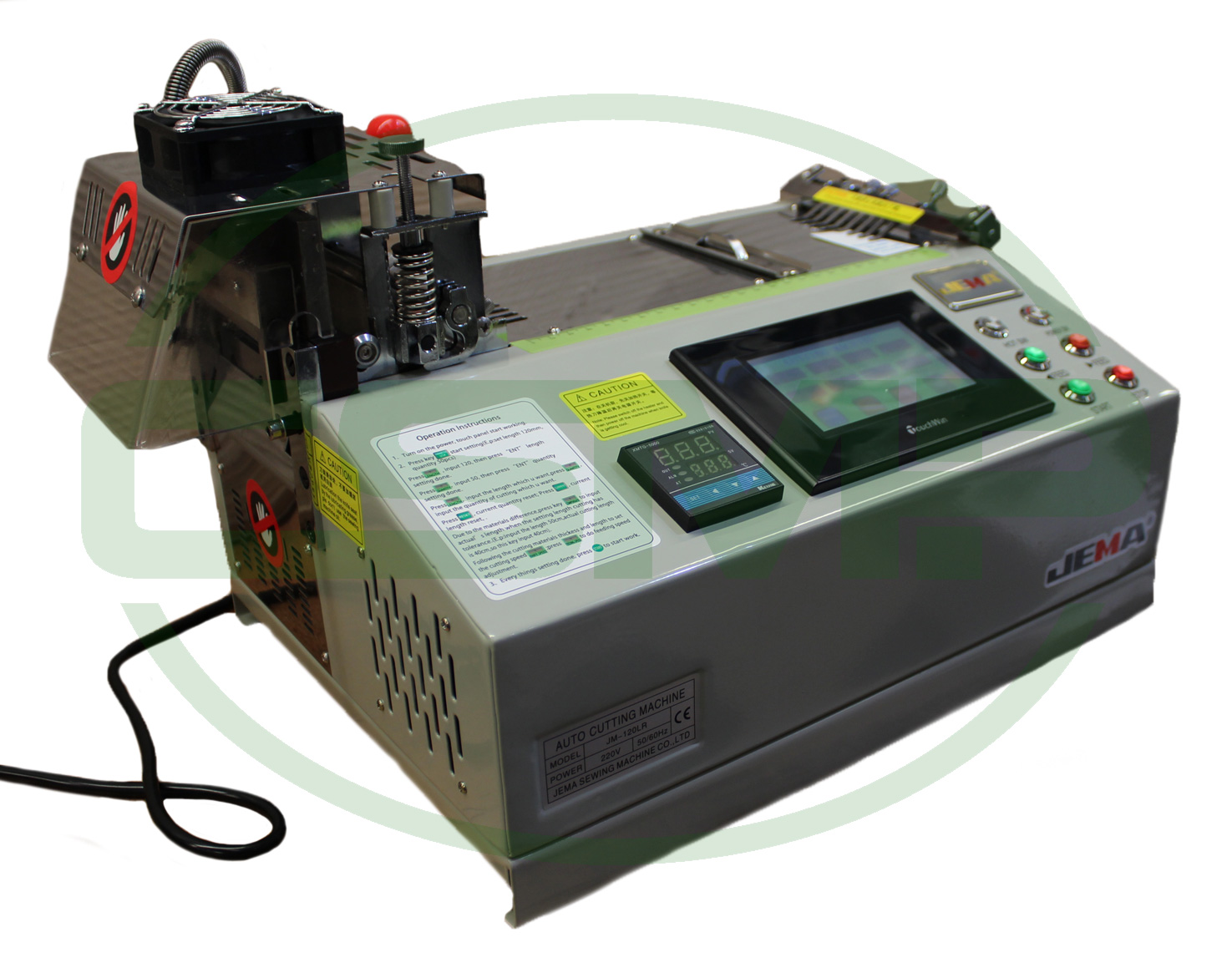

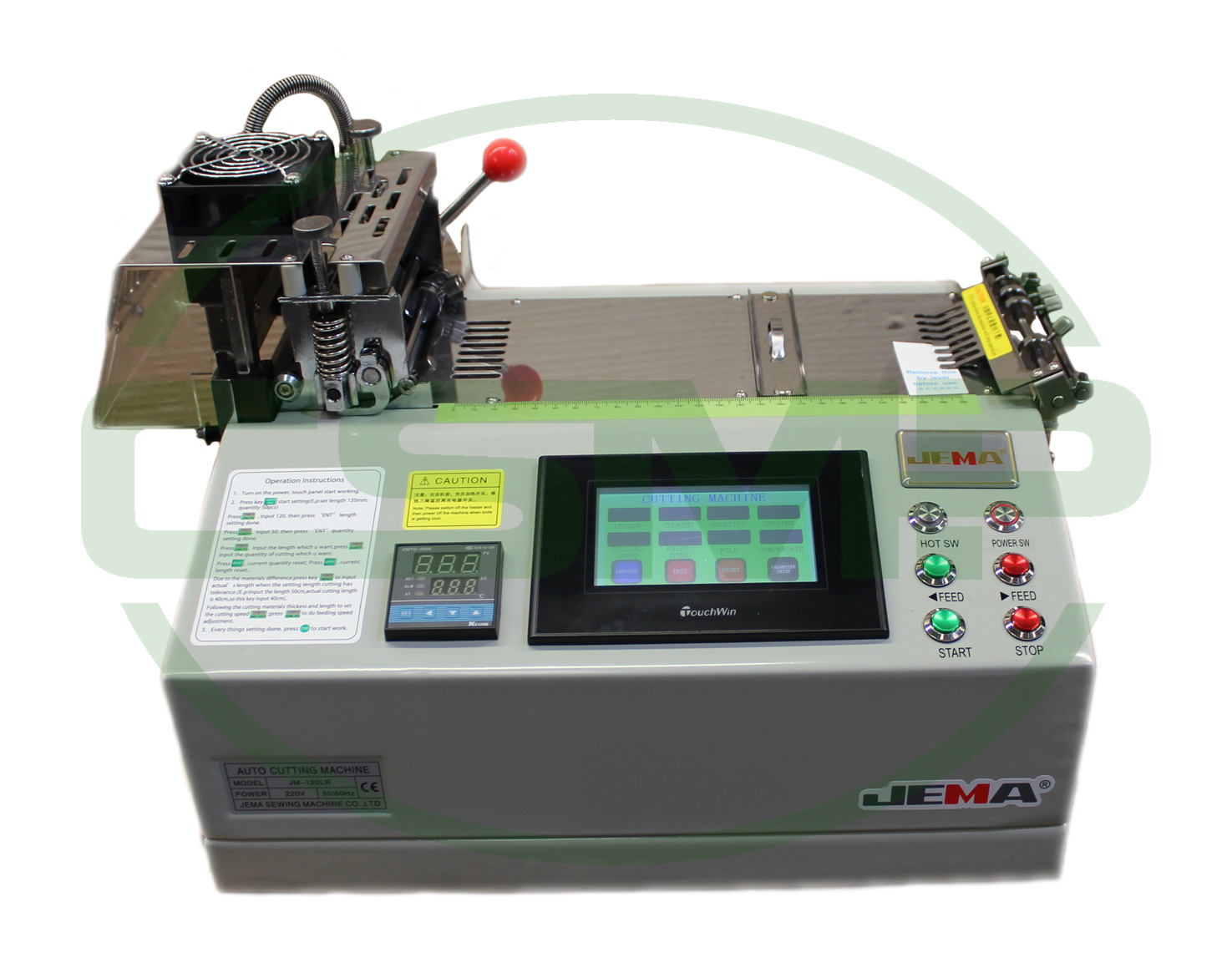

JEMA JM-120LR
- Economic Cold Strip Cutter.
The JEMA JM-120LR is an automatic strip cutter designed for clean, precise, and efficient cutting of a wide range of materials. It delivers reliable performance for both hot and cold cutting applications.
**12-Month Return-to-Base Warranty**
Key Features:
- High Speed: Cuts 80–100 pieces per minute (50 mm length)
- High Precision: Stepping motor ensures accurate cut lengths
- Advanced Compensation: Industry-unique 4-digit precision compensation eliminates cumulative errors, automatically resetting after each cut
- Wide Cutting Capacity: Handles materials up to 95 mm wide, ideal for thick materials
- Clean Cutting: Hot knife melts and cuts woven materials neatly without fraying; equipped with an anti-static device
- Fully Automatic Operation: Set length and quantity for unattended cutting
- Automatic Stop: Machine stops automatically when material runs out
- Memory Function: Preset length, quantity, and speed are retained even after power off
Technical Specification
| Model | JM-120LR |
|---|---|
| Cutting Length (mm) | 20-99999 |
| Max. Cutting Width (mm) | 95 |
| Cutting Speed (p/min) | 90 |
| Max. Blade Temp (°C) | 300 |
| Voltage (v) | 110/220 |
| Frequency (Hz) | 50/60 |
| Power (kw) | 0.66 |
| Package Size LxWxH (mm) | 560x420x05 |
| Weight (Kg) | 24/29 |
More Information
| Part No | JM120LR |
|---|---|
| Weight (KG) | 27.000000 |
| Manufacturer | Jema |
