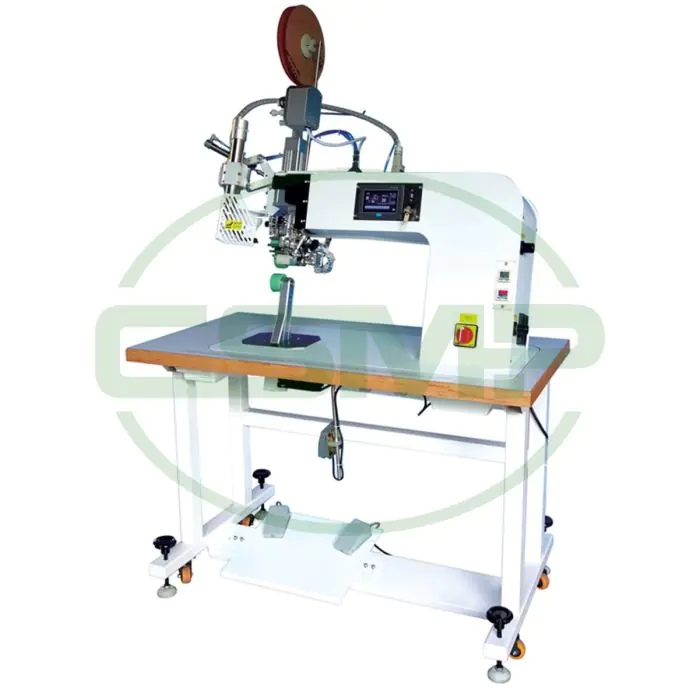

JEUX AI-118 I-NNN HOT AIR SEALING MACHINE COMPLETE

Part No JEUXAI1181NNN
JEUX AI-118 I-NNN - Hot Air Sealing Machine. The JEUX AI-118 is an economical and user-friendly hot air sealing machine designed for a wide range of seam sealing applications. It features a functional color touchscreen and differential speed control for the top and bottom rollers, ensuring consistent sealing performance on difficult materials and curved seams.
Pricing and Availability on Request
Contact Us for Quote

Description / JEUX AI-118 I-NNN HOT AIR SEALING MACHINE COMPLETE

JEUX AI-118 I-NNN
- Hot Air Sealing Machine.

The JEUX AI-118 is an economical and user-friendly hot air sealing machine designed for a wide range of seam sealing applications. It features a functional color touchscreen and differential speed control for the top and bottom rollers, ensuring consistent sealing performance on difficult materials and curved seams.

Key Capabilities:

  • Suitable for all bonding materials
  • Compatible with tape widths from 4–30 mm
  • Ideal for stretch fabrics
  • Supports customized and upgradable software
  • Multiple attachments available for different applications

Highlight Features:

  • Ergonomic design with a large working area
  • Differential speed top and bottom rollers for improved seam quality
  • Patented interactive touchscreen interface, easy to learn and operate
  • Multi-language support
  • Digital air pressure display
  • Automatic length calculation fit mode
  • Standard digital tape tensioner for tape usage tracking
  • Data locking function to prevent accidental parameter changes
  • USB interface for data and system updates
  • Built-in parameters for major tape brands and standard nozzle positioning fixture
  • Simple, stable, and reliable electrical design

Technical Specification

Model JEUX AI-118
Power Supply AC 220V 50/60Hz, 1Φ
Power Consumption (W) 3600
Compressed Air (MPa) > 0.4
Maximum Sealing Speed (ft/min) 80
Maximum Temperature (ºC) 800
Nozzle Unit (MM) 22
Upper Roller Width (MM) 25.4
Lower Roller Width (MM) 31
Dimensions LxWxH (mm) 1350 x 850 x 1560
Net Weight (kg) 130
Optional Roller (MM) 10-31

Product Attachments

More Information

Part No JEUXAI1181NNN
Weight (KG) 0.100000
Manufacturer Juki
