Description / JACK E5-5-03/333 5 THREAD 3MM x 4MM STITCH NEW

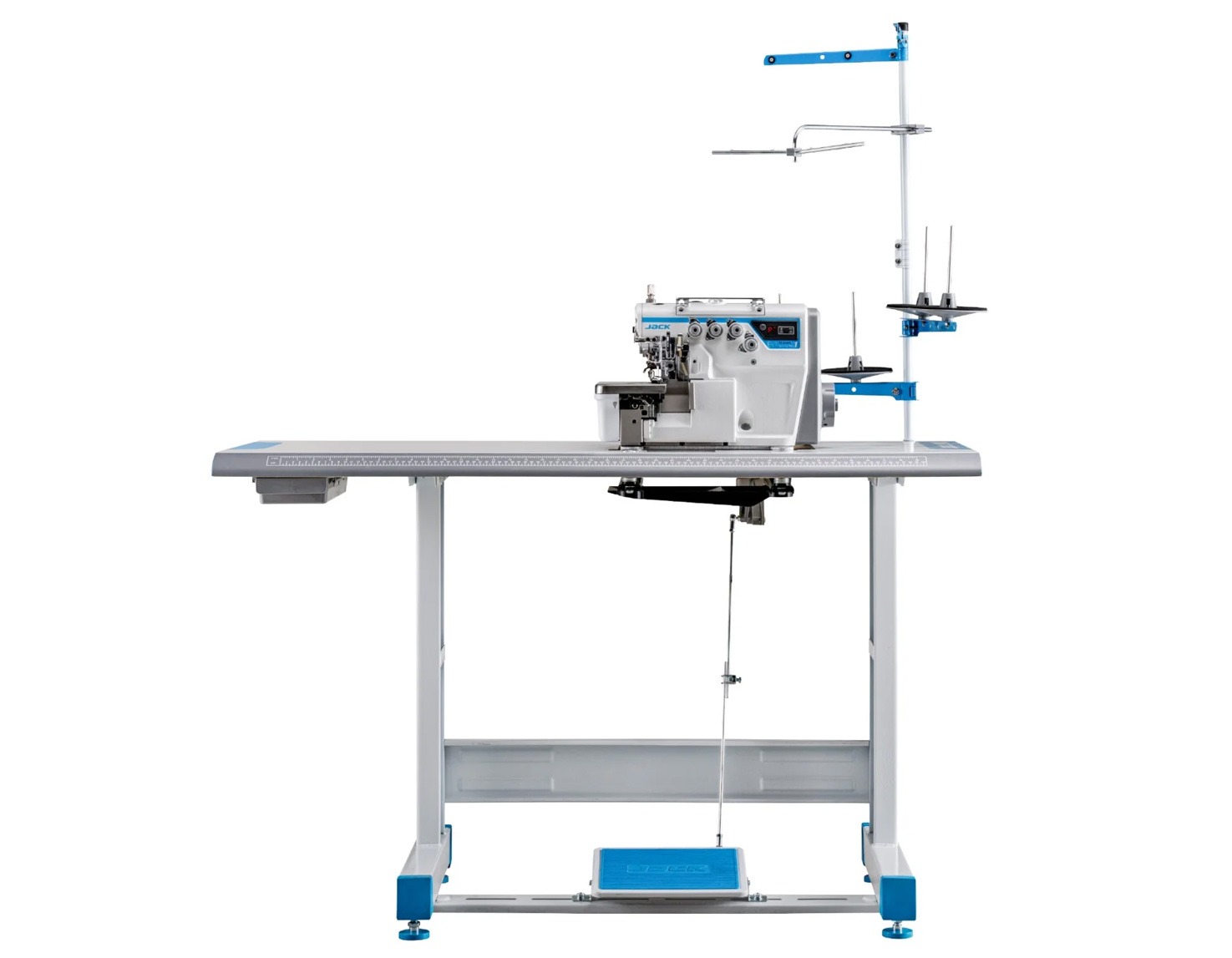

Jack E5-5-03/333
- 5 Thread (3mm x 4mm), Thickness-Adjustable, Direct Drive Overlock Machine.
The Jack E5-5-03/333 is a direct-drive, five-thread overlock machine (two needles) that sews a chain stitch and overlock in a single pass, with a 3mm and 4mm stitch width. Part of the Jack E5 range, it features a selectable medium or heavy material setting, a #14 needle and speeds of up to 5,500 stitches per minute. A wide-voltage electronic control keeps it running reliably on unstable supplies. New version, supplied complete.
Light and Heavy Adjustable
Switch freely between M type (medium) and H type (heavy) material settings to suit mesh, knitwear, denim and other fabrics.
Seam Thickness Upgrade
Large stitch width and a long stroke deliver strong, stable power through thick material, with no skipped stitches or broken threads.
Direct Drive Motor
Compact direct-drive system with smooth, quiet running and low vibration.
Wide Operating Voltage
Strong adaptability and stable operation across an ultra-wide voltage range of 90V to 295V, with a very low failure rate.

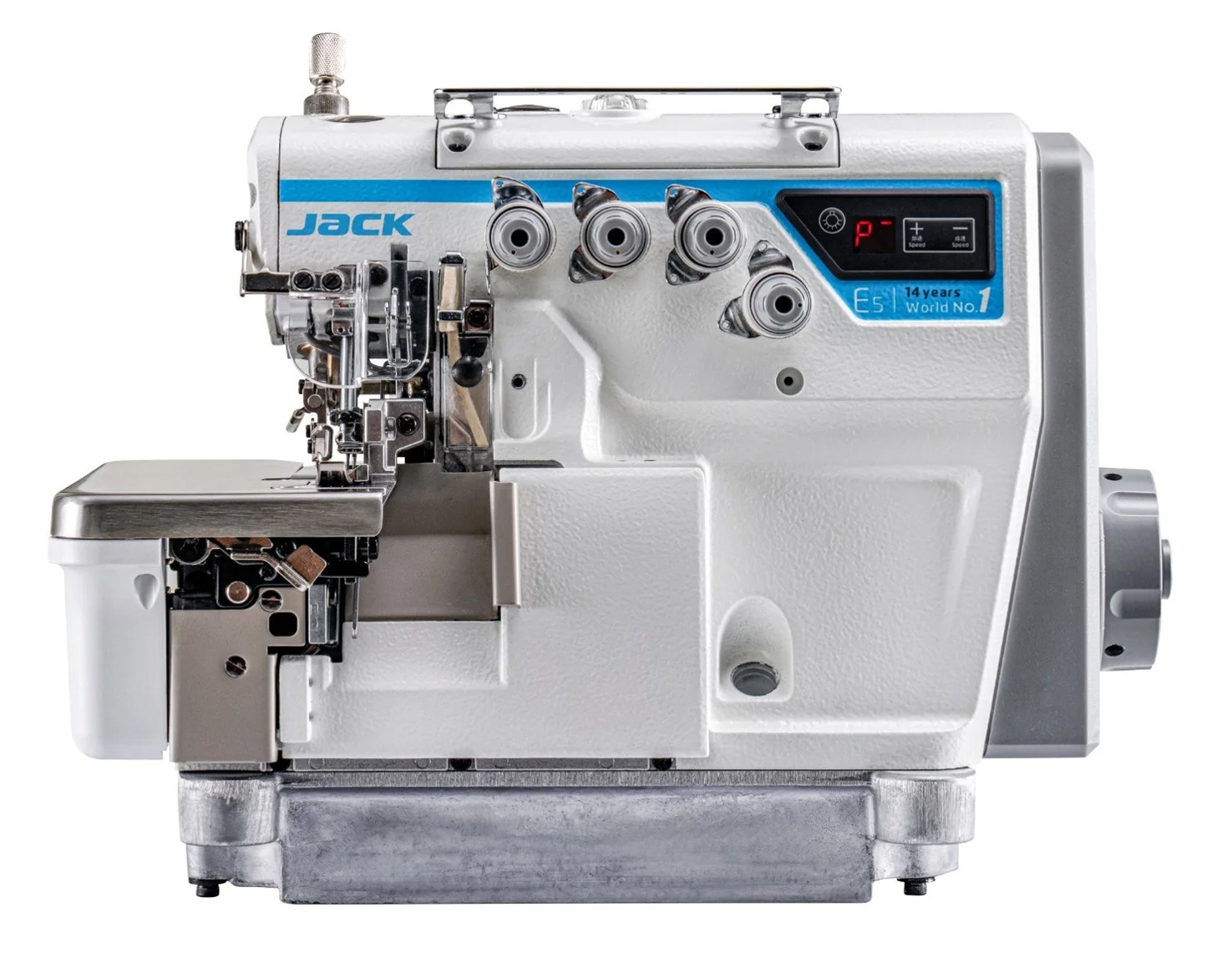

Digital Control Panel
Clear display with simple speed up and speed down buttons for quick adjustment at the machine.
Technical Specification
| Model | Jack E5-5-03/333 |
|---|---|
| Application | Five-Thread 3 x 4 Overlock |
| Needles | 2 x #14 |
| Number of threads | 5 |
| Needle distance (mm) | 3 |
| Stitch width (mm) | 3 x 4 |
| Stitch length (mm) | 4 |
| Differential ratio | 0.72 - 2 |
| Presser foot lift (mm) | 5.5 |
| Sewing speed: stitches / min | 5500 |
| Volume (mm) | 515 x 360 x 510 |
| Weight (kg) | 27 / 35 |
More Information
| Part No | JACKE5503333 |
|---|---|
| Weight (KG) | 64.000000 |
| Manufacturer | Universal / Generic |
