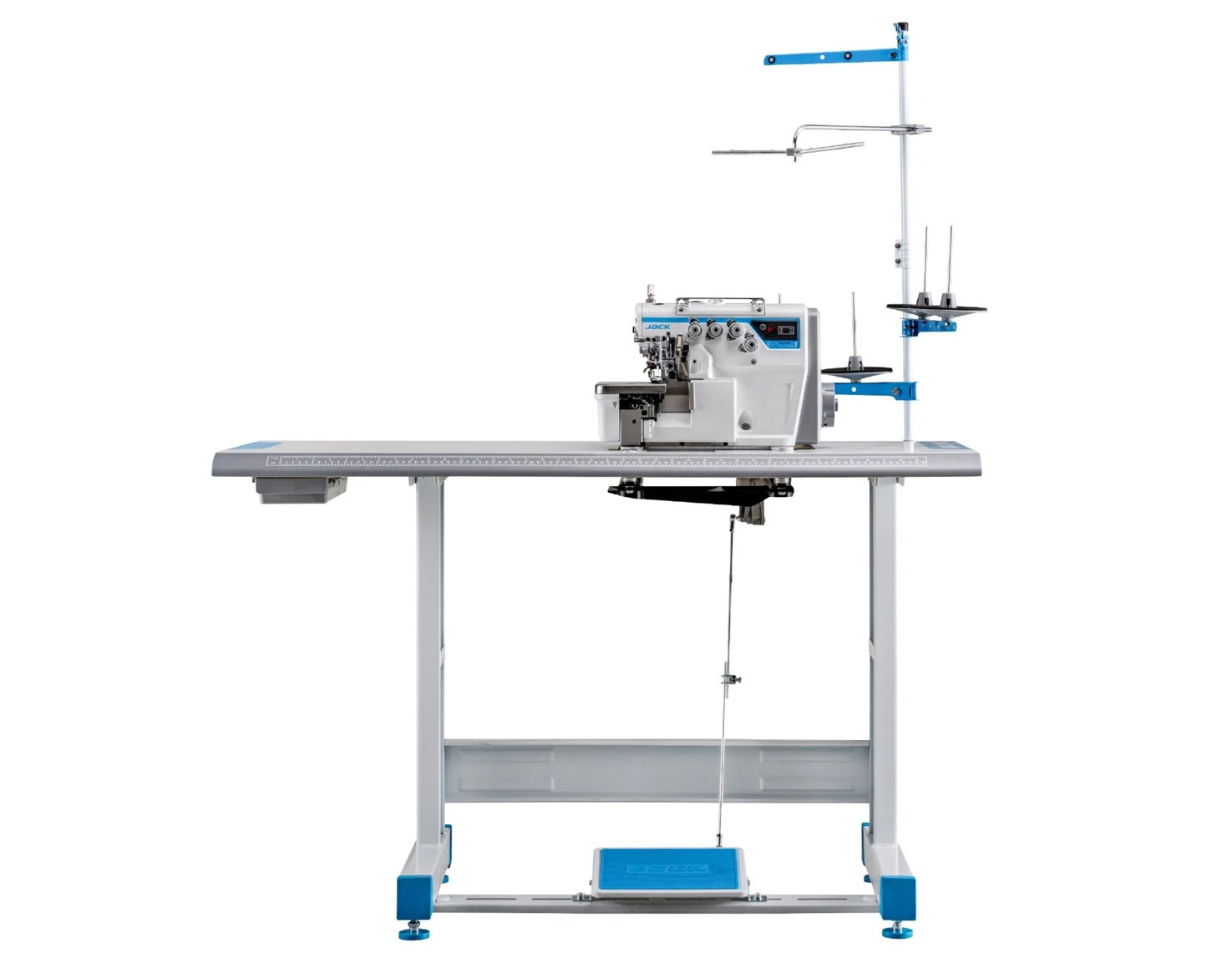

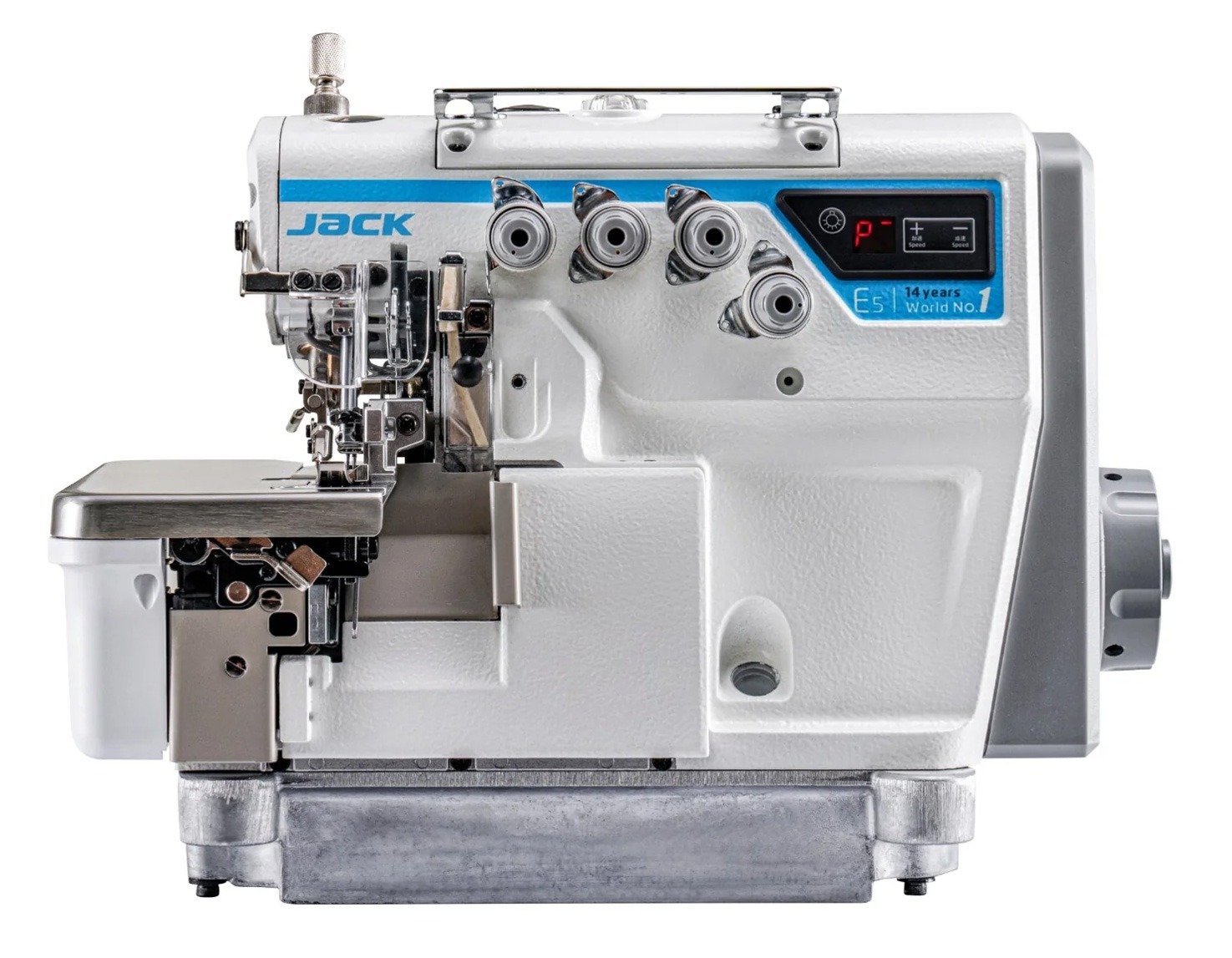

JACK E5-3-32R2/223 ROLLED HEM 3 THREAD OVERLOCK COMPLETE

Part No JACKE5332R2223
Jack E5-3-32R2/223 - Rolled Hem, 3 Thread, Direct Drive Overlock Machine. The Jack E5-3-32R2/223 is a direct-drive, three-thread overlock machine set up for rolled hem finishing, giving a dense, neat edge on light fabrics. Part of the Jack E5 range, it runs at up to 5,500 stitches per minute, with an adjustable material setting to suit different fabric weights and a wide-voltage electronic control for stable running. Supplied complete.
Pricing and Availability on Request
Have a Question? Let us advise you

If you've got a question about our products, call us on +44 (0)161 763 6969 to speak to our team or get in touch here.

Delivery Information

We offer free delivery on every online order over £200 (Net, UK Mainland only — restrictions may apply).

For international orders, the minimum order value we're able to process is £20.00 (Net).

International delivery methods include Economy and Express, with rates calculated at checkout. Please note: Economy delivery to EU27 countries is currently suspended.

Read more about our delivery options on our Freight Charges Explained page.

Description / JACK E5-3-32R2/223 ROLLED HEM 3 THREAD OVERLOCK COMPLETE

Jack E5-3-32R2/223
- Rolled Hem, 3 Thread, Direct Drive Overlock Machine.

The Jack E5-3-32R2/223 is a direct-drive, three-thread overlock machine set up for rolled hem finishing, giving a dense, neat edge on light fabrics. Part of the Jack E5 range, it runs at up to 5,500 stitches per minute, with an adjustable material setting to suit different fabric weights and a wide-voltage electronic control for stable running. Supplied complete.

Rolled Hem Finish

Fitted with a #9 needle and a 1.5mm stitch width, producing a dense, narrow rolled hem edge.

Light and Heavy Adjustable

Switch freely between M type (medium) and H type (heavy) material settings to suit mesh, knitwear, denim and other fabrics.

Jack E5-3-32R2/223 Light and Heavy Adjustable

Direct Drive Motor

Compact direct-drive system with smooth, quiet running and low vibration.

Jack E5-3-32R2/223 Direct Drive Motor

Wide Operating Voltage

Strong adaptability and stable operation across an ultra-wide voltage range of 90V to 295V, with a very low failure rate.

Jack E5-3-32R2/223 Wide Operating Voltage

Digital Control Panel

Clear display with simple speed up and speed down buttons for quick adjustment at the machine.

Jack E5-3-32R2/223 Digital Control Panel

Technical Specification

Model Jack E5-3-32R2/223
Application Rolled Hem / Dense Overlock
Needles 1 x #9
Number of threads 3
Stitch width (mm) 1.5
Stitch length (mm) 4
Differential ratio 0.72 - 2
Presser foot lift (mm) 5.5
Sewing speed: stitches / min 5500
Volume (mm) 515 x 360 x 510
Weight (kg) 27 / 34

Product Attachments

No attachments found.

More Information

Part No JACKE5332R2223
Weight (KG) 64.000000
Manufacturer Jack
