JACK W4-UT-01GB X 356 3N 5.6MM UBT TOP & BOTTOM COVERSEAM COMPLETE

£0.00
In stock
Part No
JACKW4UT01GB
Contact Us for Quote

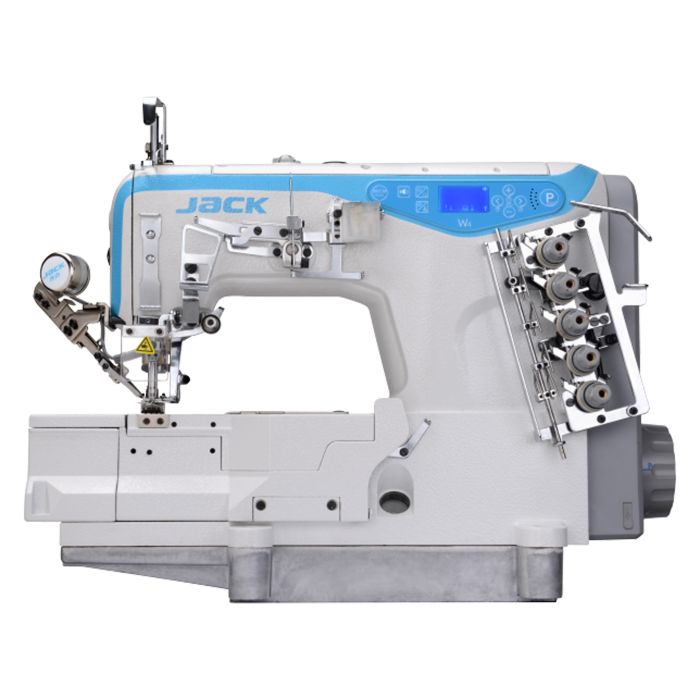

JACK K4-D-01GB

High Speed Computerized Flat-bed

A series of modern, 3-needle interlock machines with a cylinder bed, equipped with an energy-saving motor mounted in the head (Direct Drive system), which guarantees quiet and reliable operation and lower power consumption. Machines dedicated to sew closed circuit in blouses, T-shirts and other knitted products, decorative stitching and many other operations. The bottom differential transport ensures a high quality stitch, even with very inconvenient Lycra materials. The machine is equpped in LED lighting (with the possibility of 3-level adjustment of light intensity).

Available Subclasses:

  • JACK K4-D-01GB – interlock machine without automatic functions
  • JACK K4-UT-01GB – interlock machine with automatic functions
  • JACK K4-UT-35AC – interlock machine with automatic functions and with left hand fabric trimmer

Technical parameters

  • sewing speed up to 5500 stitches / min.
  • presser foot lift up to 6.2 mm
  • standard needle gauges: 5.6 mm or 6.4 mm (optionally – option of another gauges)

Technical Specification

ModelNeedlesNumber of needlesNumber of threadsNeedle gauge (mm)Stitch width (mm)Differential transportPresser foot lift (mm)Sewing speed:
stitches / min
K4-D-01GB11#/14#351.5 - 4.55.6/6.40.8 - 1.36.25500
K4-UT-01GB11#/14#351.5 - 4.55.6/6.40.8 - 1.36.25500
K4-UT-35AC11#/14#351.5 - 4.55.6/6.40.8 - 1.36.25500
More Information
Part No JACKW4UT01GB
Weight (KG) 32.000000
