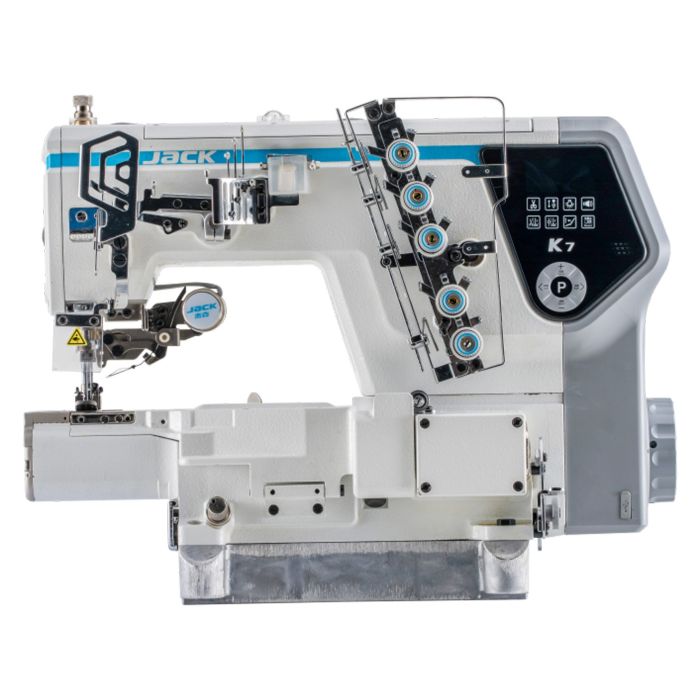

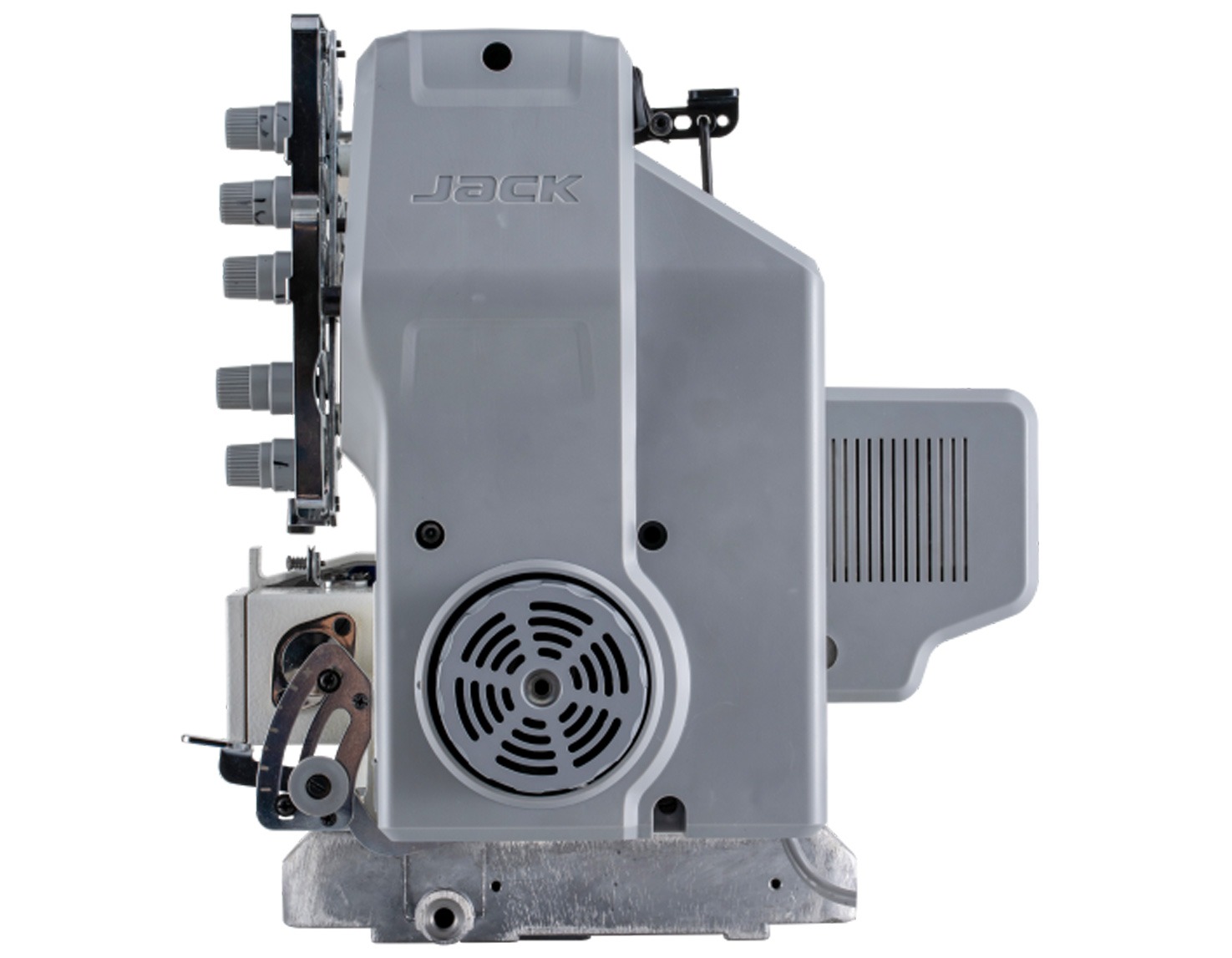

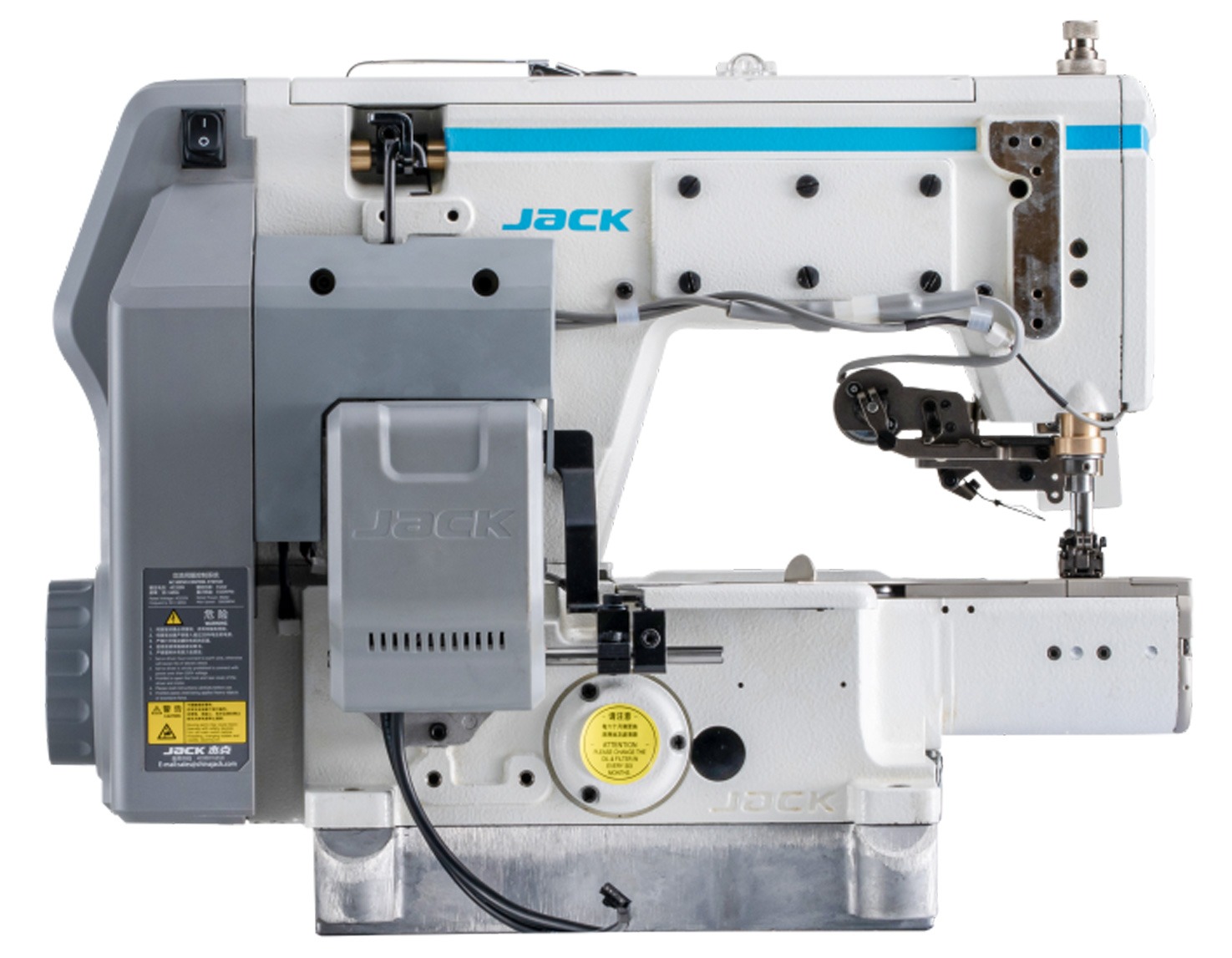

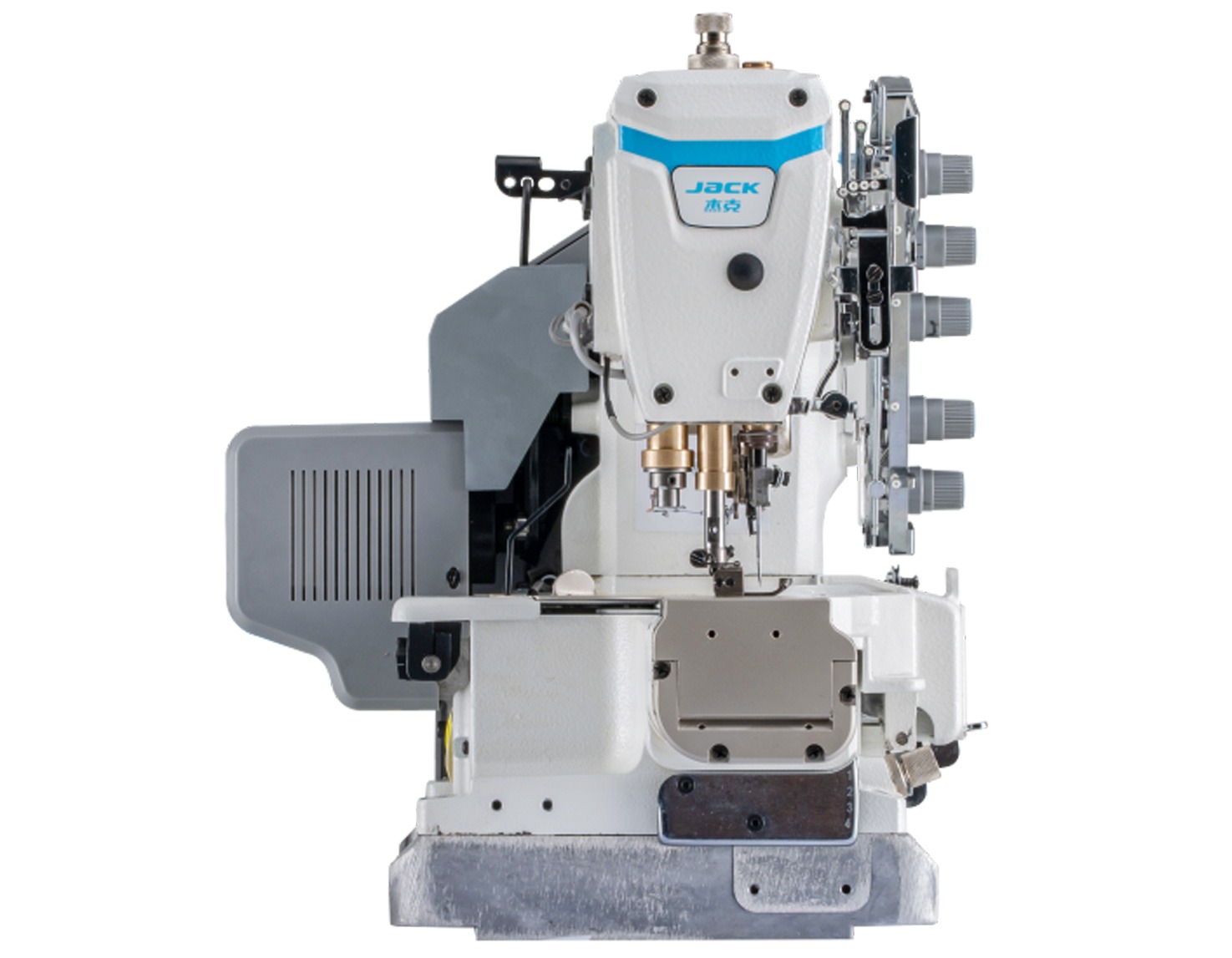

JACK K7-UT-01GB356 D/DRIVE 3N 5.6MM UBT TOP AND BOTTOM COVERSEAM

Part No JACKK7UT01GB356
Jack K7-UT-01GB356 - Top and Bottom Thread Trimmer (UT), 5.6mm Full-Speed AI Interlock. JACK K7-UT-01GB356 cylinder arm coverseam machine (5.6 mm, top and bottom) delivers full-speed cross seams across all fabric types. Its AI feeding system adjusts pressure and feed force in real time for smooth sewing on thick, thin, elastic, or slippery materials. Smart Rhino technology ensures precise fabric feeding with high torque and 360° control, while 0° thread technology reduces resistance and improves stitch stability.
Pricing and Availability on Request

Description / JACK K7-UT-01GB356 D/DRIVE 3N 5.6MM UBT TOP AND BOTTOM COVERSEAM

Jack K7-UT-01GB356
- Top and Bottom Thread Trimmer (UT), 5.6mm Full-Speed AI Interlock.

JACK K7-UT-01GB356 cylinder arm coverseam machine (5.6 mm, top and bottom) delivers full-speed cross seams across all fabric types. Its AI feeding system adjusts pressure and feed force in real time for smooth sewing on thick, thin, elastic, or slippery materials. Smart Rhino technology ensures precise fabric feeding with high torque and 360° control, while 0° thread technology reduces resistance and improves stitch stability.

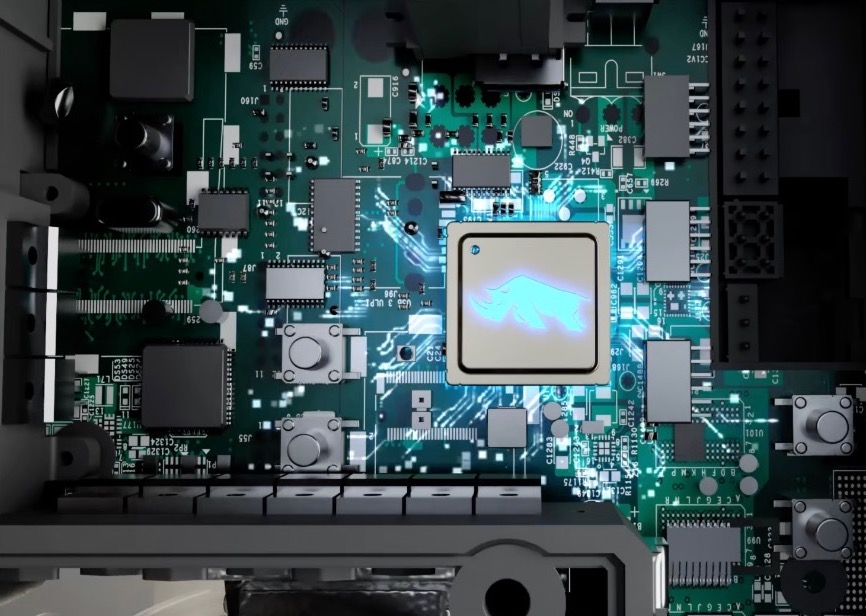

AI Full-Speed Feeding System

This intelligent system detects fabric thickness in real time and automatically adjusts pressure and feed force using AI algorithms. Working seamlessly with the Smart Rhino Fabric Feeding System and 0° thread technology, it ensures consistent full-speed sewing across thick, thin, elastic, and slippery fabrics—delivering smooth stitching even during material or style changes.

Jack K7 AI Full-Speed Feeding System

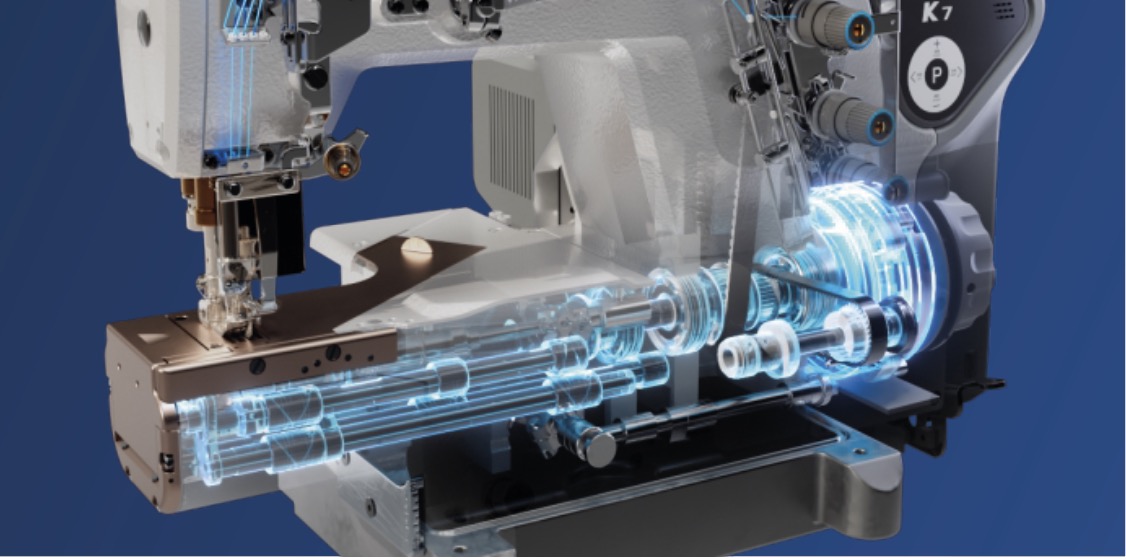

Smart Rhino Fabric Feeding Technology

Delivers precise, intelligent fabric control with automatic matching for accurate feeding. Powered by 9.2Nm ultra-high torque and 360° feed force adjustment in 1° increments, ensuring consistent, reliable performance.

Jack K7 Smart Rhino Fabric Feeding Technology

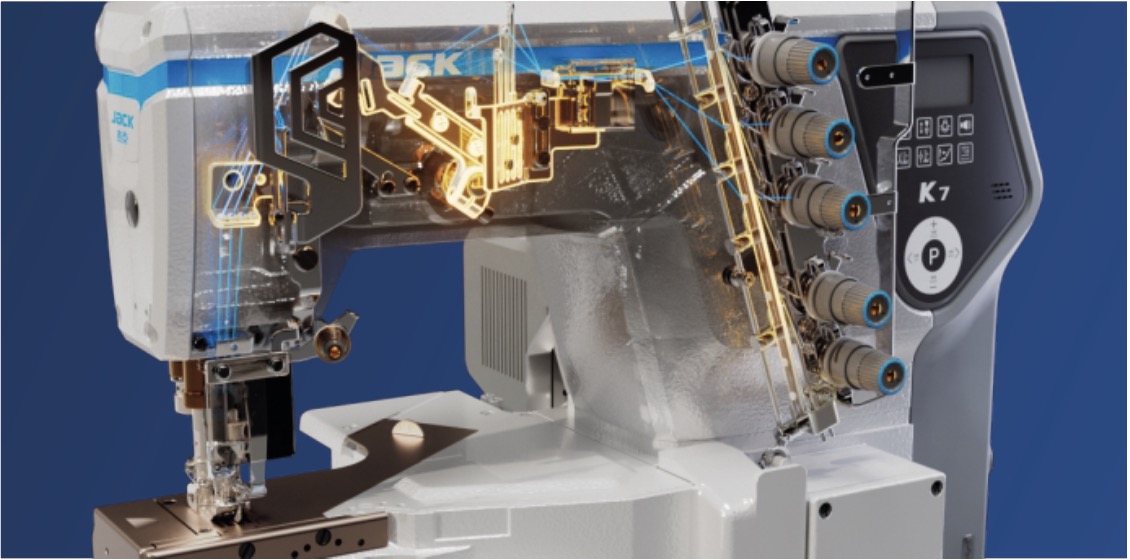

0° Thread Technology

Provides intelligent thread handling for precise control, reducing thread path resistance by 30% and improving loop stability by 80% for smoother, more consistent stitching.

Jack K7 0° Thread Technology

Technical Specification

Model Jack K7-UT-01GB356
Application Basic Seam
Needles 10#
Number of Needles 3
Number of Thread 5
Needle Gauge 1.5 - 4.5 mm
Stitch Width 5.6 / 6.4 mm
Differential Ratio 0.6 - 1.8
Height of presser foot 7.5 mm
Factory Speed 4500 s.p.m
Max Sewing Speed 6000 s.p.m
Stepping Device Yes
Upper Decorative Thread Trimming Yes
Thread Wiping Functions Yes
Volume 675 x 450 x 602 mm
Weight 51 / 61 kg

More Information

Part No JACKK7UT01GB356
Weight (KG) 90.000000
Manufacturer Jack
