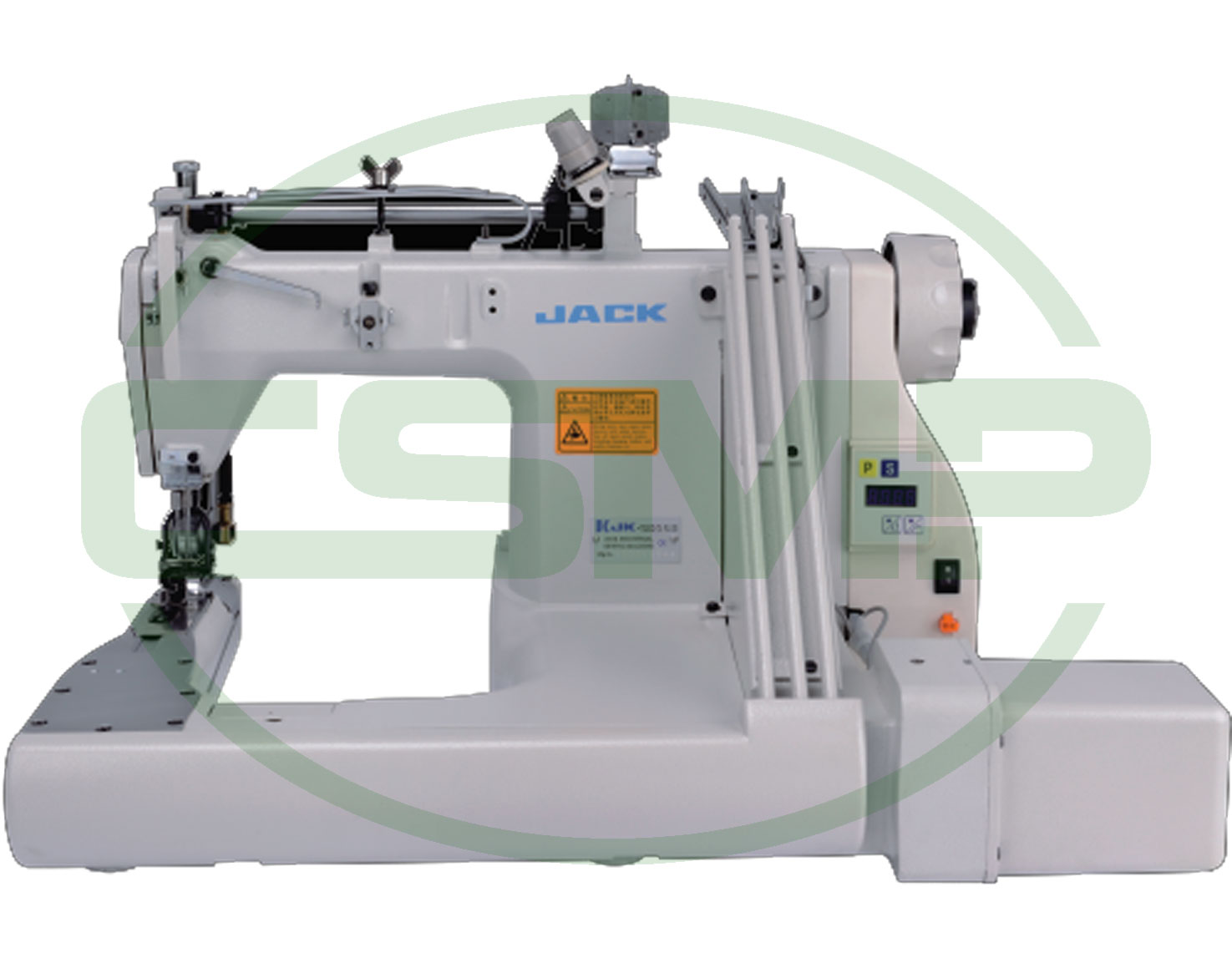

JACK JK-T9270D-12-2PS-Q 1/4" FEED OFF THE ARM COMPLETE

Contact Us for Quote
Contact Us for Pricing and Availability
Part No
JACKJKT9270D122PLQ14
Contact Us for Quote

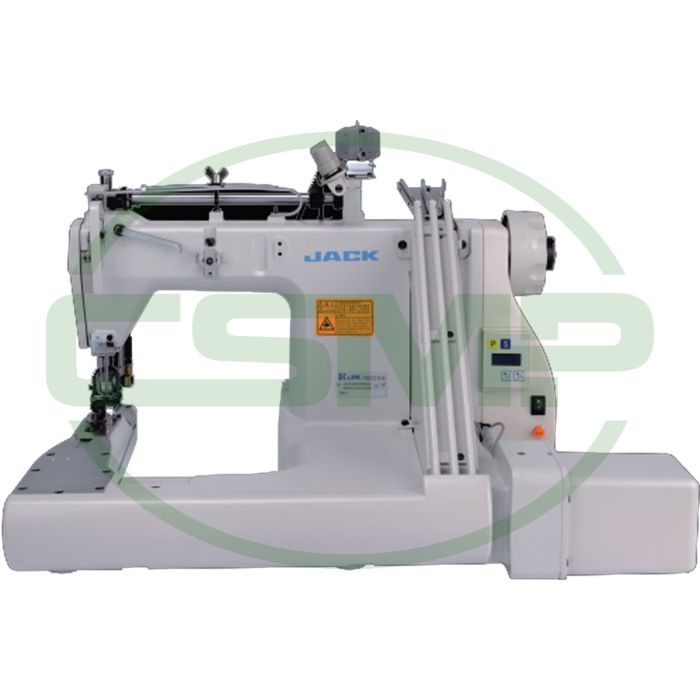

Jack JK-T9270D

Twin needle feed off the arm double chainstitch machine

Twin needle feed off the arm double chainstitch machine, with newly developed folder.The machine achieves beautifully finished seam while preventing puckering and stitch skipping. Low-tension sewing ensures balloon stitches with a soft feeling. Suitable for side seams, sleeves in shirts. Machine is equipped with top and bottom roller cloth puller, that is an auxiliary tool for smooth feed of the material. For light and medium fabrics. Needle gauge: 4,8mm or 6,4mm.


Technical Specification

ModelNeedlesNumber of needlesNumber of threadsStitch length (mm)Presser foot lift (mm)SewingSewing speed: stitches / min
JK-T9270-12-2PL (1/4)TVX64NY 12#243.58Light4000
JK-T9270-12-2PL-2PL (3/16)TVX64NY 12#243.58Light4000
JK-T9280-73-PS (1/8)TVX5NY 21#364.210Heavy3600
More Information
Part No JACKJKT9270D122PLQ14
Weight (KG) 92.000000
Manufacturer Jack
