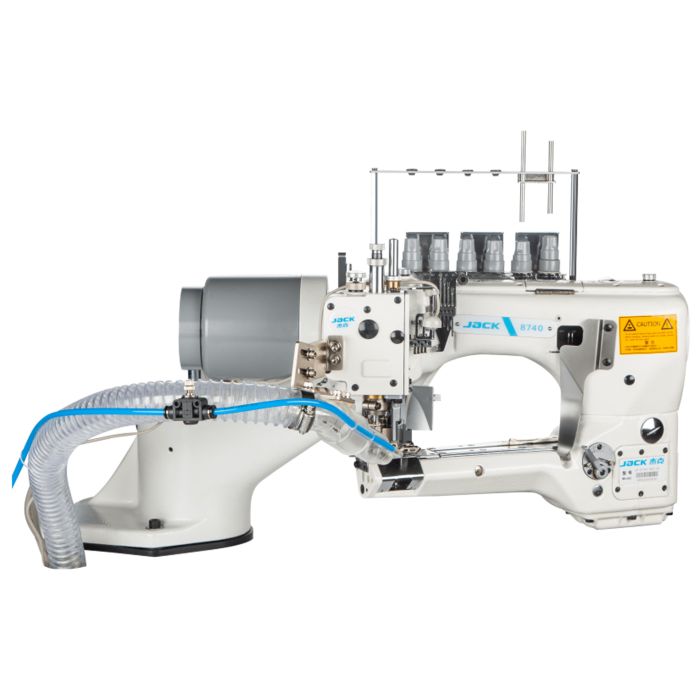

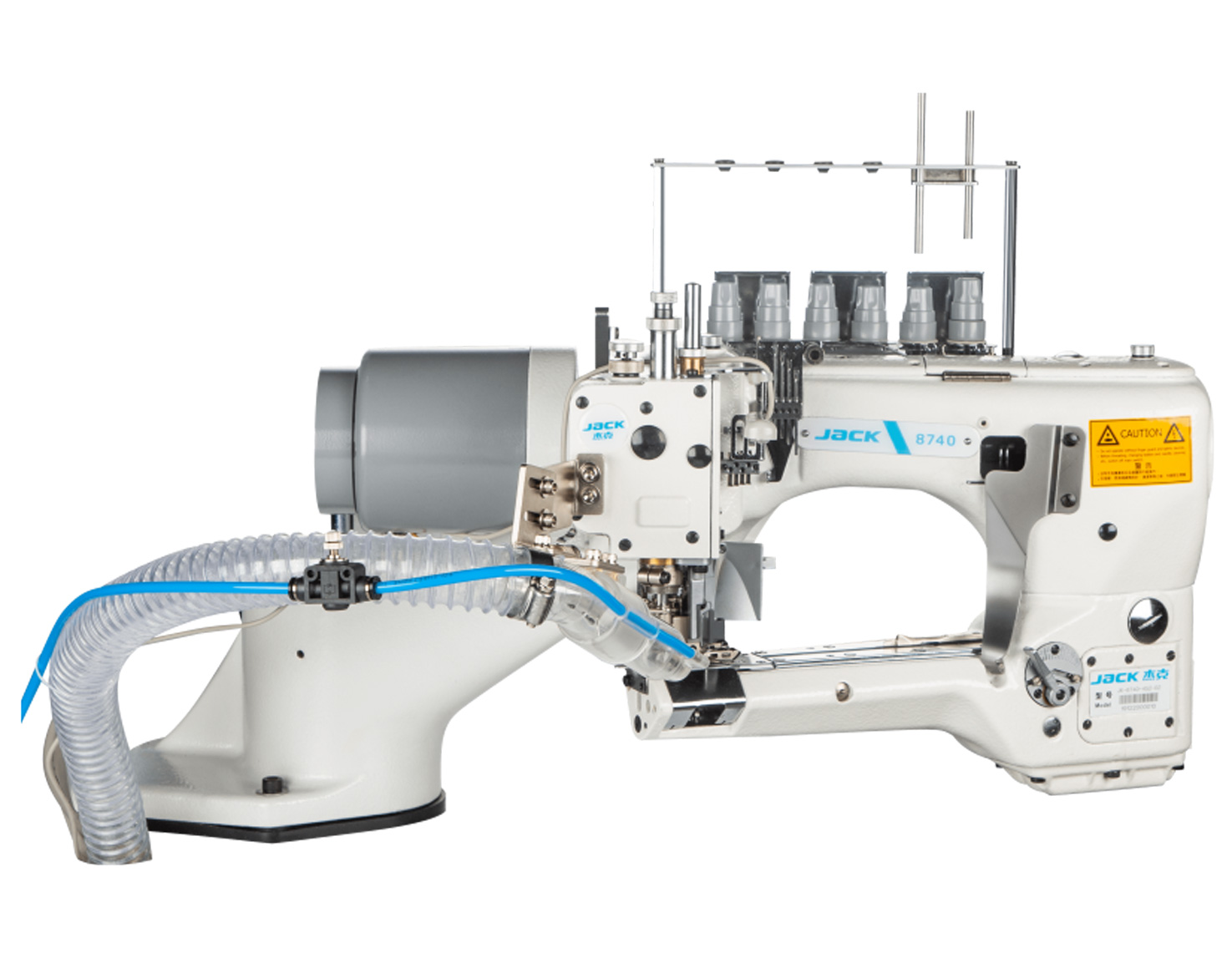

JACK JK-8740C-460-02-D-AW1S 4N 6.0MM FLATSEAMER COMPLETE

Part No JK8740C46002DAW1S
Jack JK-8740C-460-02-D-AW1S - 4 Needle Feed Of The Arm / 4-Needle, 6-Thread, Feed-off-the-Arm Machine 4 needle 6 thread feed of the arm machine with cover stitch. Direct drive motor, pneumatic thread trimmer and suction suitable for underwear, swimsuits, neoprene diving suits, sportswear.
Pricing and Availability on Request
Have a Question? Let us advise you

If you've got a question about our products, call us on +44 (0)161 763 6969 to speak to our team or get in touch here.

Delivery Information

We offer free delivery on every online order over £200 (Net, UK Mainland only — restrictions may apply).

For international orders, the minimum order value we're able to process is £20.00 (Net).

International delivery methods include Economy and Express, with rates calculated at checkout. Please note: Economy delivery to EU27 countries is currently suspended.

Read more about our delivery options on our Freight Charges Explained page.

Description / JACK JK-8740C-460-02-D-AW1S 4N 6.0MM FLATSEAMER COMPLETE

Jack JK-8740C-460-02-D-AW1S
- 4 Needle Feed Of The Arm / 4-Needle, 6-Thread, Feed-off-the-Arm Machine

4 needle 6 thread feed of the arm machine with cover stitch. Direct drive motor, pneumatic thread trimmer and suction suitable for underwear, swimsuits, neoprene diving suits, sportswear.

Small Cylinder Bed

The small arm measures only 150mm, making the machine suitable for closing very small tubes.

Small Cylinder Bed

Automatic Presser Foot Lifter

The automatic foot lifter with spring structure allows wide adaptability to various types of fabric.

Automatic Presser Foot Lifter

Pneumatic Thread Trimmer (UTL)

Thanks to the integrated photocell it is possible to activate the automatic cut at the beginning and end of the seam, furthermore the suction takes away the excess chain stitch.

Pneumatic Thread Trimmer (UTL)

Wasted Suction Device

The waste generated by the trimming knife are sucted keeping the workspace tidy and clean, without accumulating dirt.

Wasted Suction Device

Direct Drive Motor

Silent motor with reduced vibrations and low energy consumption, it also allows greater safety and speed in assembly and installation.

Direct Drive Motor

No Oil Leaks

Thanks to the sealed structure, you will not have oil leaks that will ruin your clothes.

No Oil Leaks

Technical Specifications

Model Jack JK-8740C-460-02-D-AW1S
Threads 6
No. of Needles 4
Needle Gauge 1.4 - 3.0
Differential Ratio 1:06 - 1:1.5
Presser Foot Height 6.0
Needle Bar Distance 30
Max Speed 3200 s.p.m
Fabric Cutting Method Two-Way Cutting
Trimming Method Manual
Volume 64.5mm x 53.5mm x 49.5mm
Weight 44.3kg / 58.4kg

More Information

Part No JK8740C46002DAW1S
Weight (KG) 81.000000
Manufacturer Jack
