JACK JK-8670BDII-01CB/UT 3N 5.6MM UBT SMALL CYLINDER COVERSEAM

Part No JACKJK8670BDII01CBUT
Jack JK-8670BDII-01CB/UT - Small Cylinderbed Interlock
Pricing and Availability on Request
Have a Question? Let us advise you

If you've got a question about our products, call us on +44 (0)161 763 6969 to speak to our team or get in touch here.

Delivery Information

We offer free delivery on every online order over £200 (Net, UK Mainland only — restrictions may apply).

For international orders, the minimum order value we're able to process is £20.00 (Net).

International delivery methods include Economy and Express, with rates calculated at checkout. Please note: Economy delivery to EU27 countries is currently suspended.

Read more about our delivery options on our Freight Charges Explained page.

Description / JACK JK-8670BDII-01CB/UT 3N 5.6MM UBT SMALL CYLINDER COVERSEAM

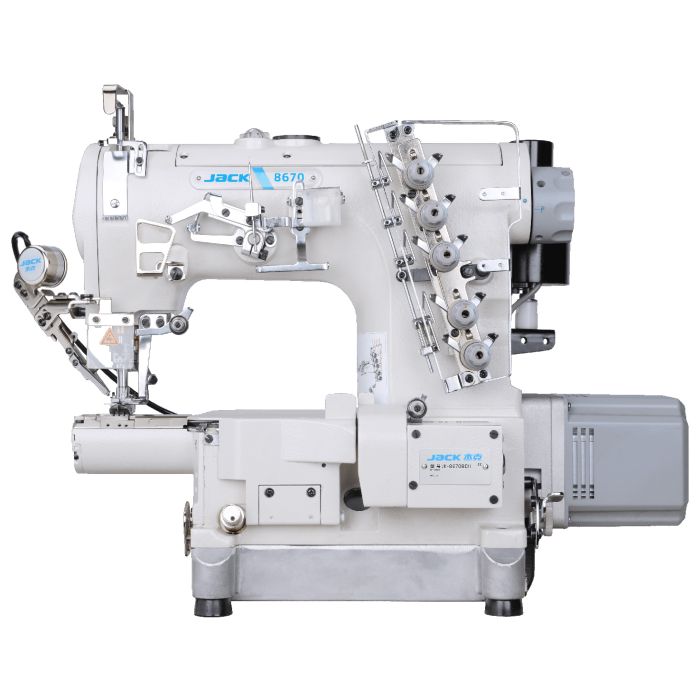

Jack JK-8670BDII-01CB/UT
- Small Cylinderbed Interlock

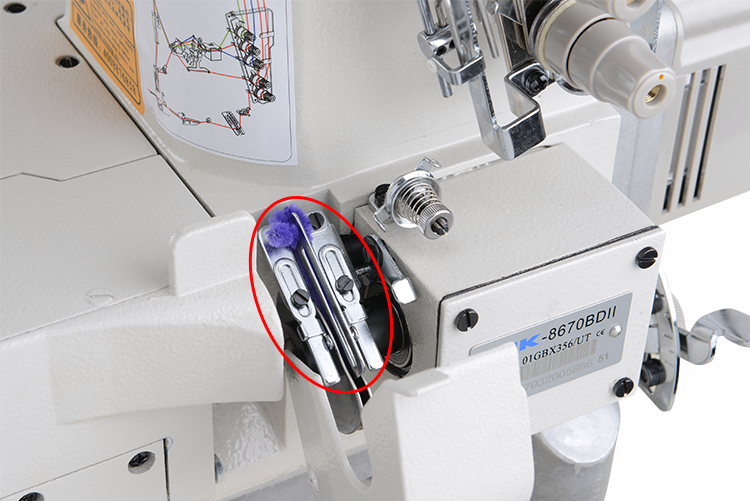

Automatic Thread Trimmer

Up and down thread trimmer, the lower knife set adjustment screw is movable ensuring a wide trimming range, less hassle, longer life, high efficiency, 100% accurate cutting.

Automatic Thread Trimmer

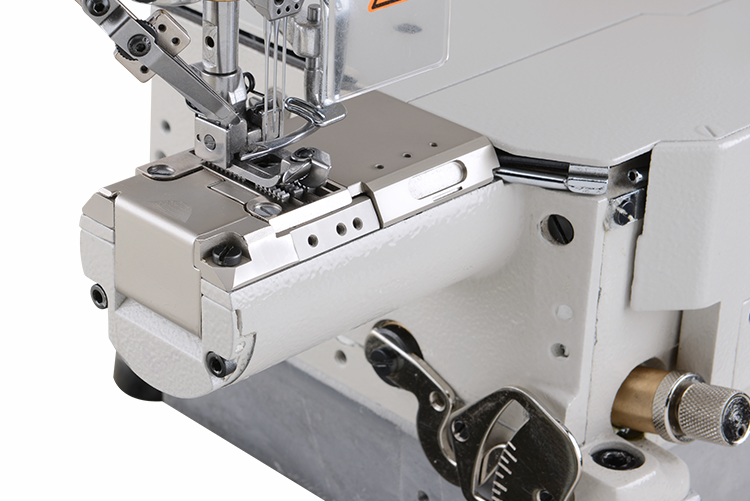

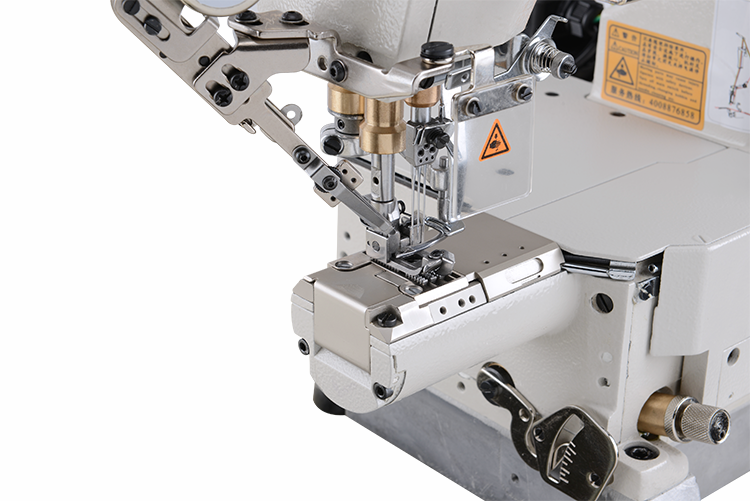

Small Cylinderbed

Very small 180mm perimeter arm particularly suitable for sewing T-shirt sleeves for children.

Small Cylinderbed

Anti-Winding Cam

Prevents the thread from tangling to the cam. The cam is external and can be opened to facilitate the threading of the machine: comfortable, fast and precise.

Anti-Winding Cam

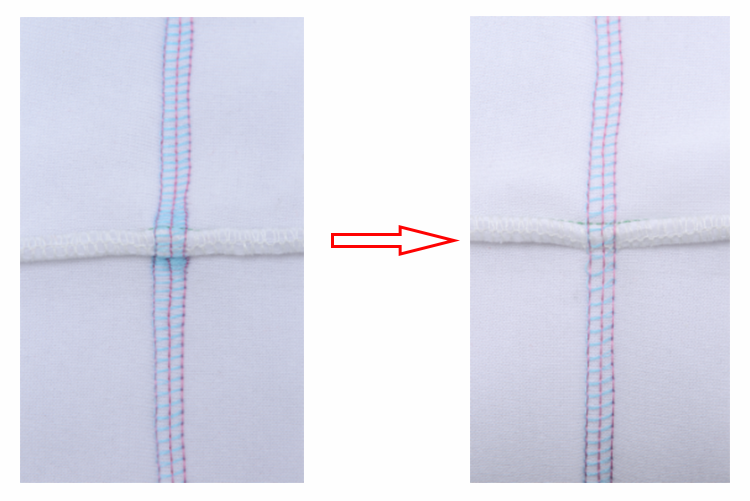

Efficient Feeding On Cross Sewing

The slope of the presser foot is optimized, the seams are not in the way, the stitches are uniform.

Efficient Feeding On Cross Sewing

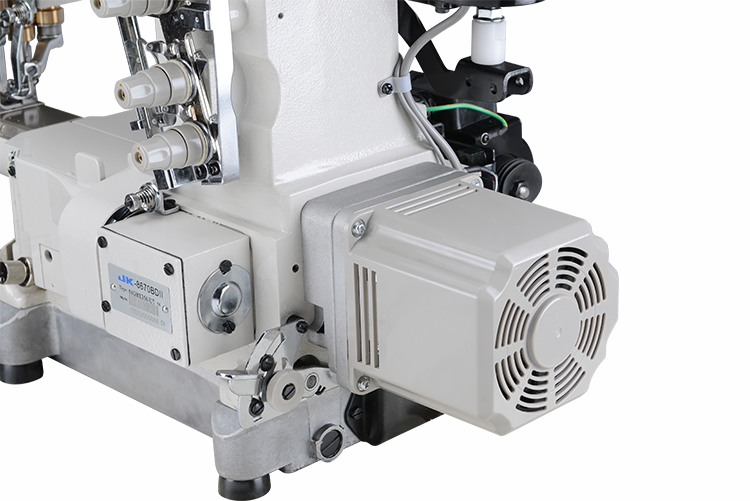

Direct Drive Motor

The integrated fan into the motor allows it to cool down quickly, delaying the aging time of the electronic components and extending the life of the motor. It save up to 71% of energy.

Direct Drive Motor

Technical Specifications

Model Jack JK-8670BDII-01CB/UT
Function Plain Seaming
Needle UY128GAS #11-14
No. of Needles 3
No. of Threads 5
Stitch Length 1.5-3.6mm
Stitch Width 5.6 / 6.4 mm
Differential Ratio 0.8-1.4
Presser Foot Lifting Height 6.2mm
Max Speed 4500 s.p.m
Volume 680 x 420 x 630 mm
Weight 50kg / 60kg

More Information

Part No JACKJK8670BDII01CBUT
Weight (KG) 90.000000
Manufacturer Jack
