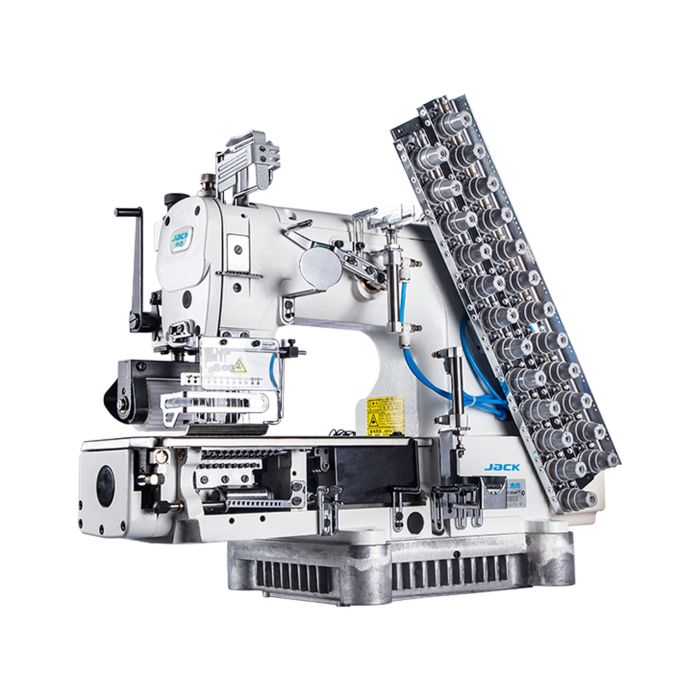

JACK JK-8009HF-04064-254P 4N 1/4-1-1/4 GAUGE V BELT TYPE

Part No JACKJK8009HF04064254
Jack JK-8009HF-04064-254P - Power Saving 4-Needle Interlock, with Thread-Trimming (V-Belt Type)
Pricing and Availability on Request

Description / JACK JK-8009HF-04064-254P 4N 1/4-1-1/4 GAUGE V BELT TYPE

Jack JK-8009HF-04064-254P
- Power Saving 4-Needle Interlock, with Thread-Trimming (V-Belt Type)

Automatic Thread Trimmer

The automatic thread cutting at the end of the seam allows you not to cut it manually, greatly improving production efficiency.

Automatic Thread Trimmer

Automatic Footlifter

When sewing is finished, the machine will automatically raise the presser foot by activating the automatic thread trimmer.

Automatic Footlifter

Multifunction

Thanks to its structure it is possible to change the distance between the needles, moreover the threading of the machine is facilitated thanks to the release of the hook holder.

Multifunction

Heavy Duty Material? No Problem

With the puller, the feeding becomes uniform and particularly suitable for thick and difficult feeding materials.

Heavy Duty Material? No Problem

Various Types Of Work

Suitable for attaching elastic, attaching ribbons, on the front of shirts.

Various Types Of Work

Jeans?

Sure! The JK-8009HF is suitable for sewing the waistband!

Jeans?

Technical Specification

Model Jack JK-8009HF-04064-254P
Needle Gauge 1/4" - 1" - 1/4"
Needle U0113 14-16#
Number of Needles 4
Number of Threads 8
Stitch Length (mm) 1.7-4.0
Stitch Width (mm) 6.4/7.9/8.7/9.5
Presser Foot Lifting Height (mm) 8
Max Speed (s.p.m) 3500
Volume (mm) 615x400x605
Weight (kg) 52.5/57.5

Product Attachments

No attachments found.

More Information

Part No JACKJK8009HF04064254
Weight (KG) 91.000000
Manufacturer Jack
