JACK JK-2030GHC-4Q COMPLETE MACHINE WITH FOOT LIFTER

Contact Us for Quote
Contact Us for Pricing and Availability
Part No
JACKJK2030GHC4QC
Contact Us for Quote

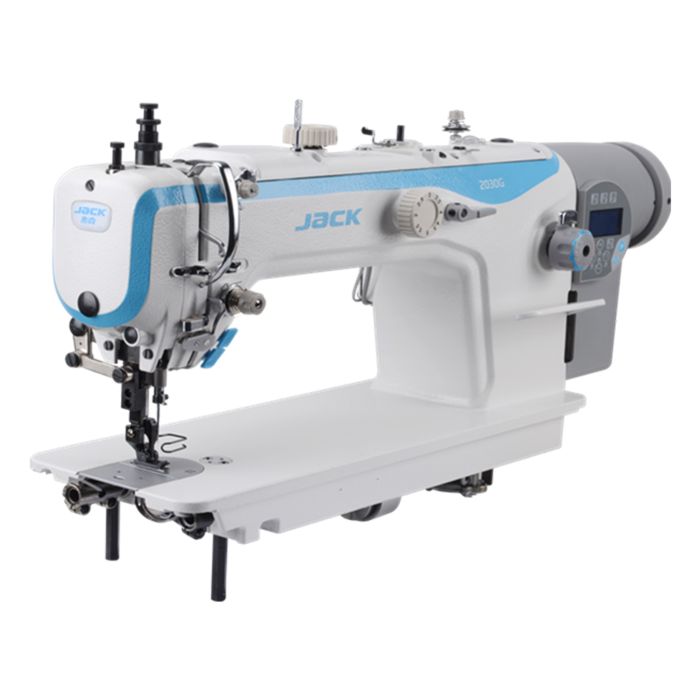

Jack JK-2030GHC-4Q

Top & Bottom Feeding Computerized Lockstitch

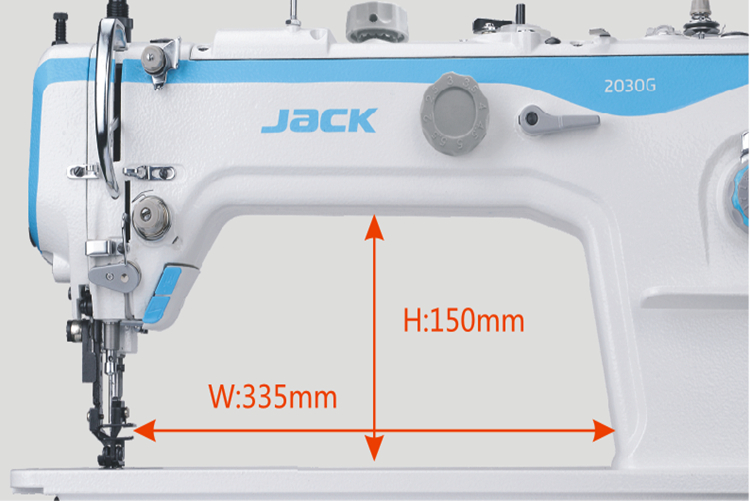

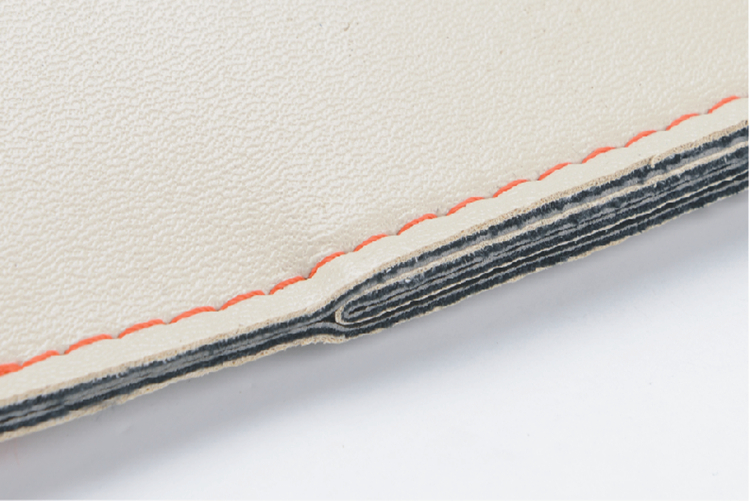

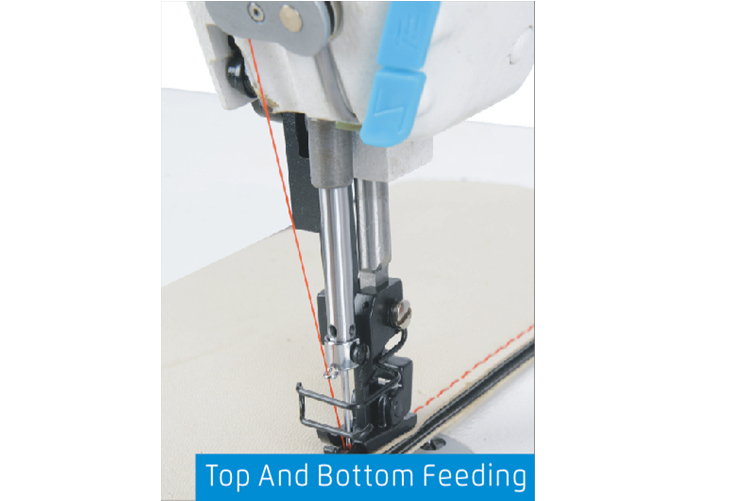

1-needle lockstitch machine designed for sewing thicker materials (eg leather, upholstery materials), equipped with an energy-saving motor built directly into the machine head (Direct Drive system). This solution guarantees quiet operation and low power consumption. The double transport (bottom teeth and upper – rolling foot) ensures perfect movement of the upper and lower layers of the sewn materials. The machine has a clear operating panel built into the head and LED illumination at the needle bar. Extended arm – the distance from the body to the needle bar is 33.5 cm.

Automatic functions

  • auto bartacking option
  • thread trimmer
  • needle positioning
  • foot lift

Technical parameters

  • sewing speed: up to 2200 stitches / min

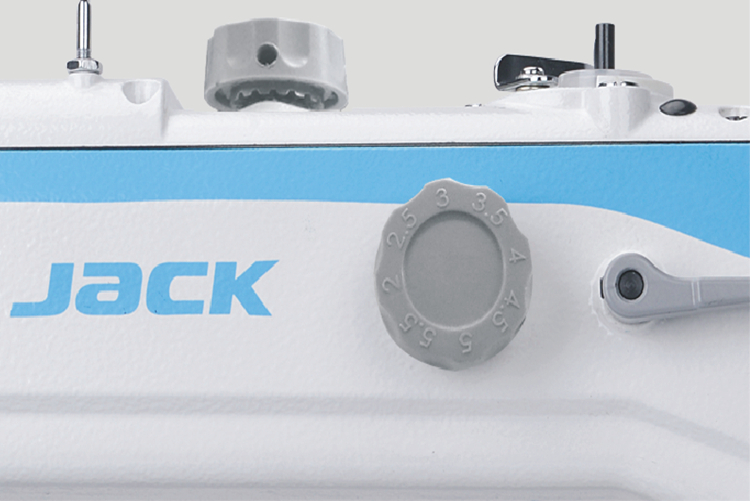

  • stitch length: up to 9 mm
  • presser foot lift: 5-13 mm

Technical Specification

ModelNeedlesNumber of threadsStitch length (mm)Presser foot lift (mm)Sewing speed: stitches / min
2030G-4QDPx17 20-23#21-98-162200
More Information
Part No JACKJK2030GHC4QC
Weight (KG) 81.000000
Manufacturer Jack
