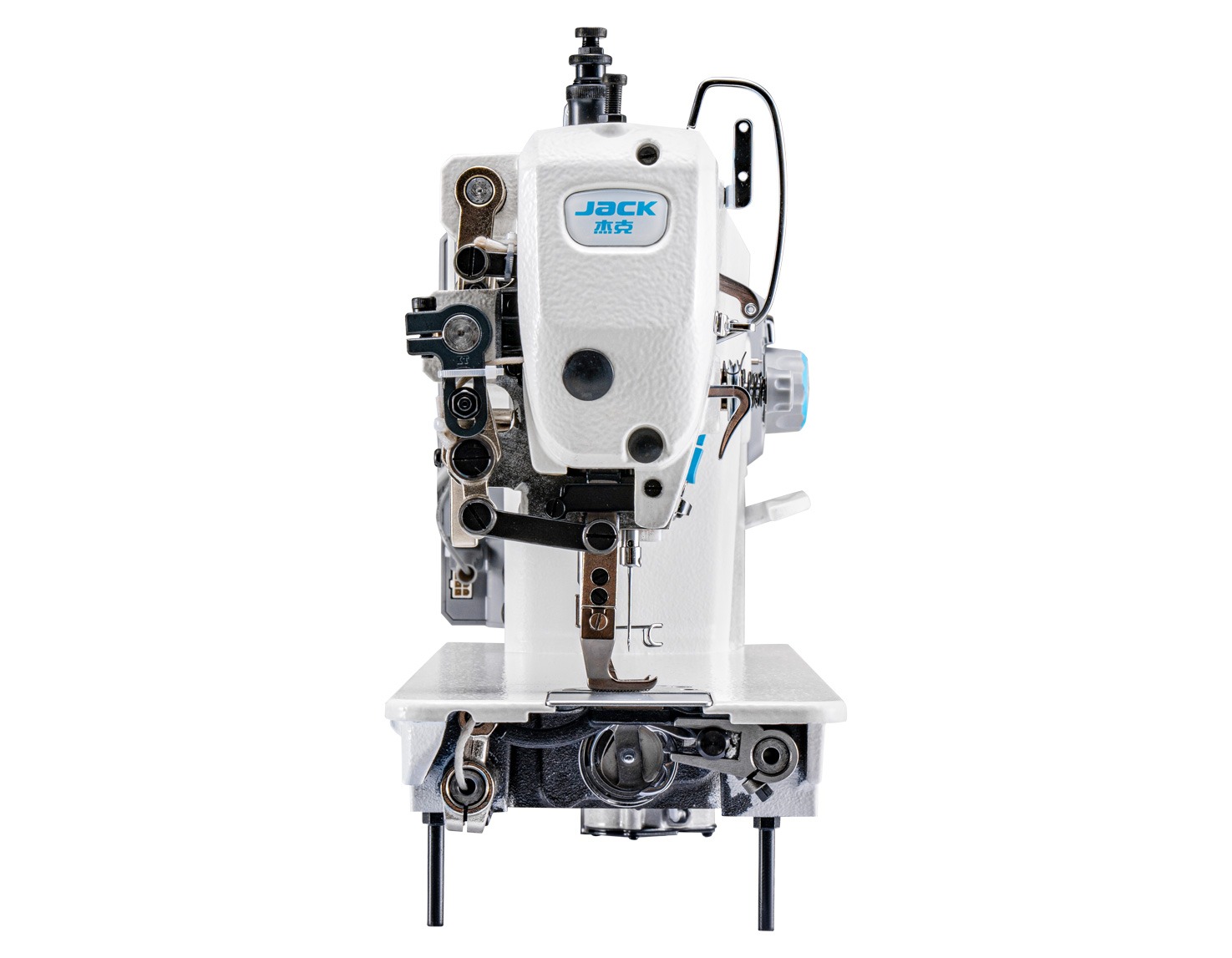

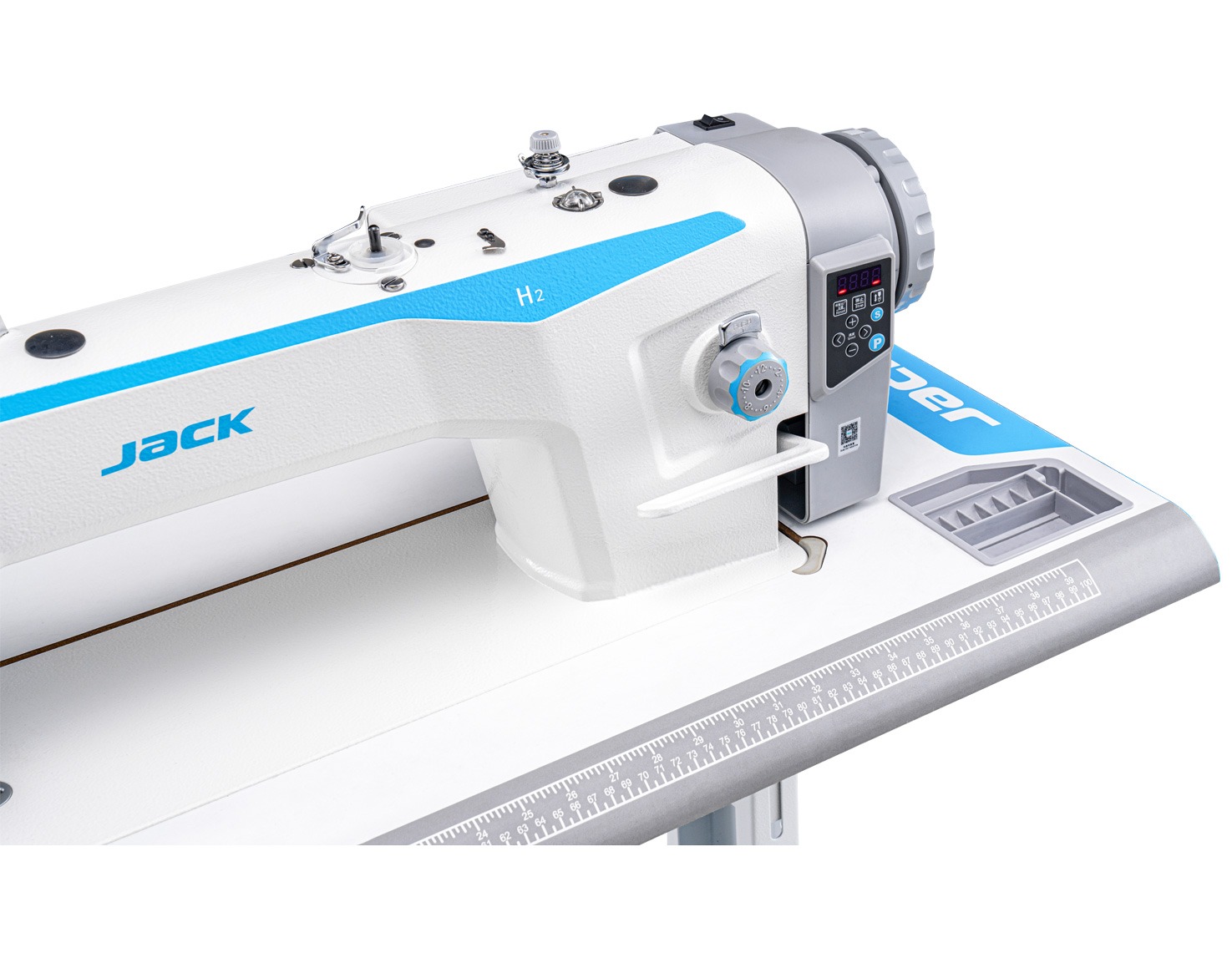

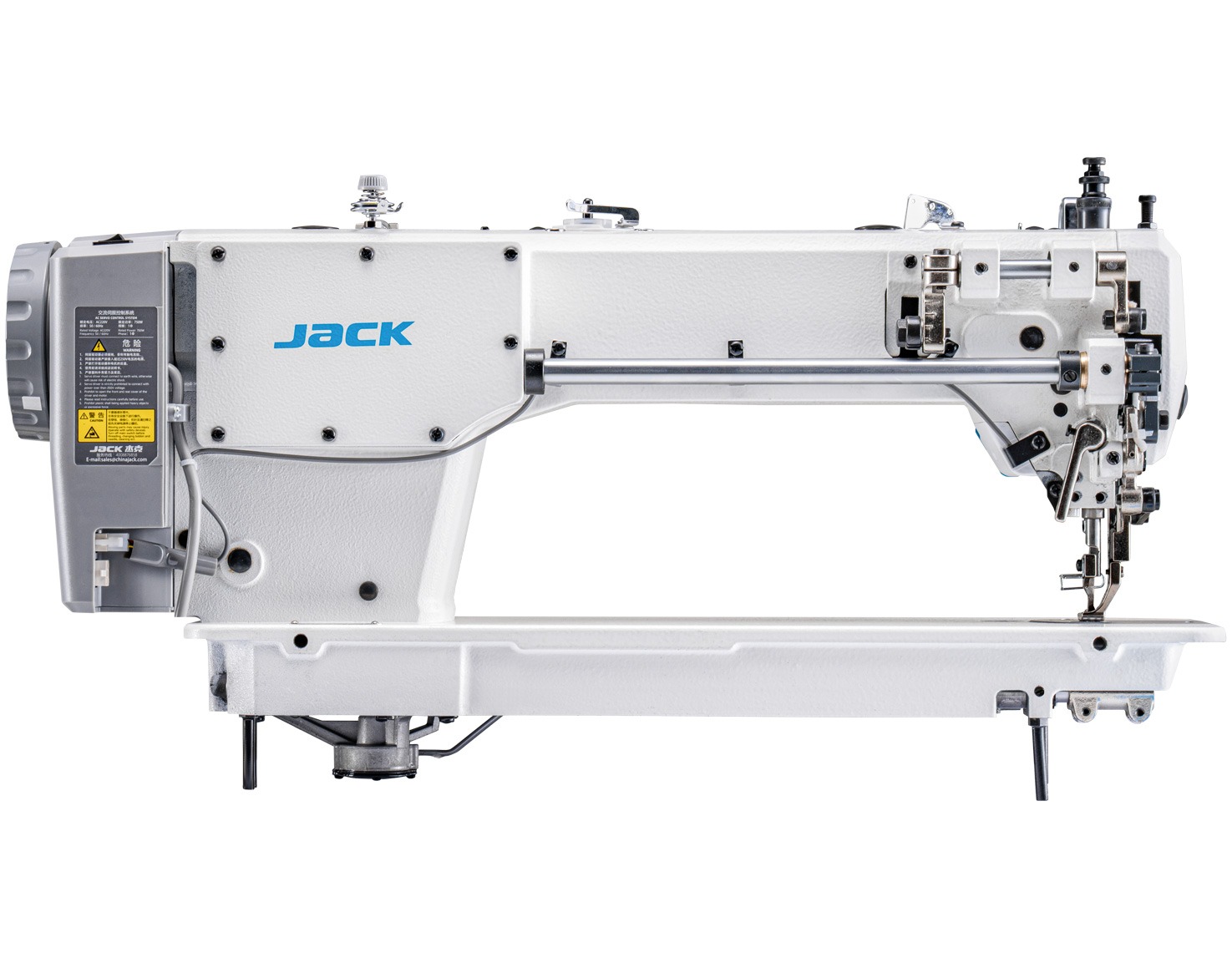

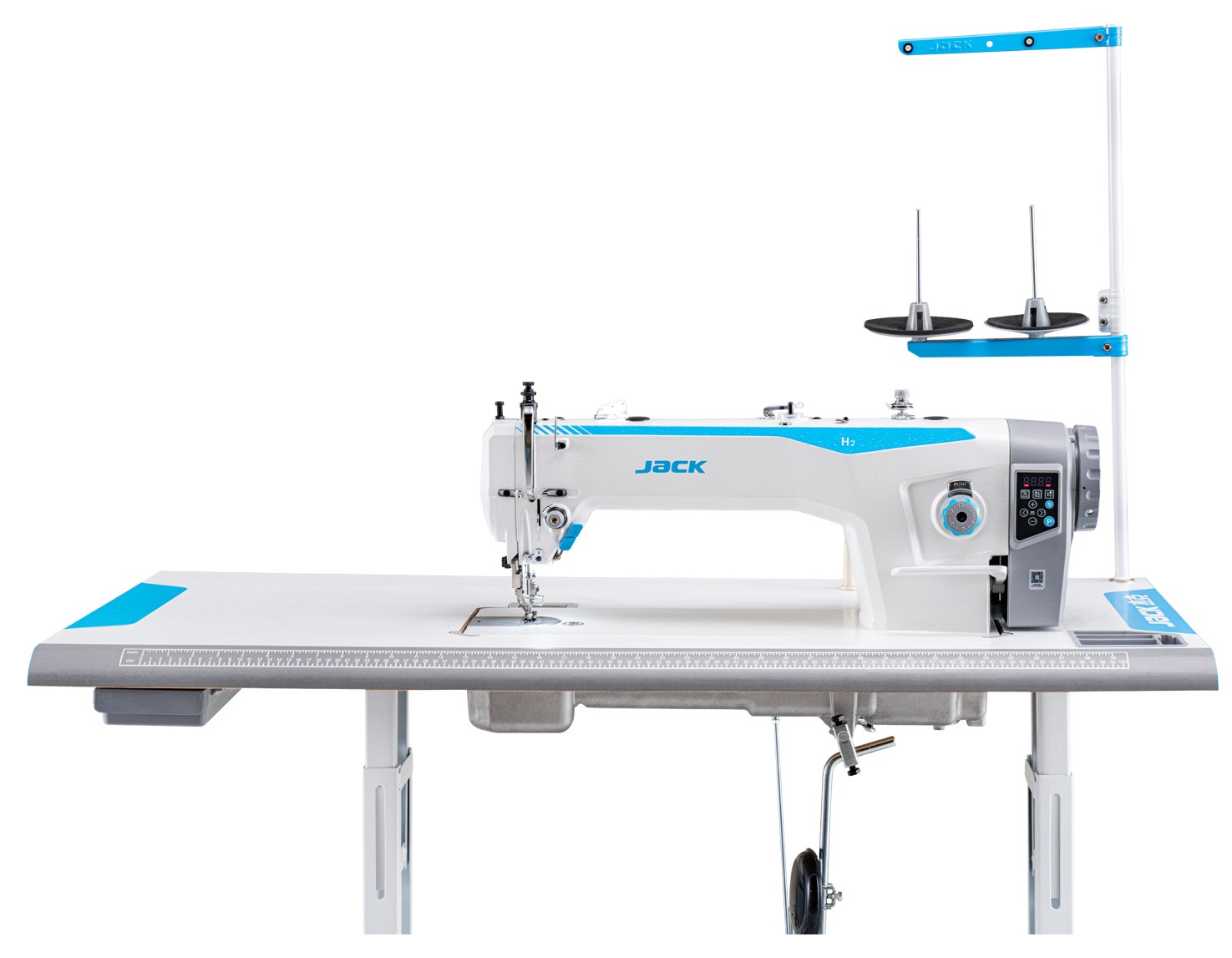

JACK H2-A-LC-12 LONG ARM WALKING FOOT MACHINE COMPLETE

Part No JACKH2ALC12
Jack H2-A-LC-12 - Long Arm Basic Direct Drive Top Feed Lockstitch Machine with 12mm Stitch Length. Designed for sewing thicker materials such as leather and upholstery fabrics, this 1-needle lockstitch machine is equipped with a built-in energy-saving Direct Drive motor. This integration ensures quiet operation and reduced power consumption. The machine features needle positioning, allowing precise control during sewing. Its double transport system—comprising lower feed dogs and an upper rolling foot—ensures smooth and consistent movement of both fabric layers, even on challenging materials. An intuitive control panel is integrated into the machine head for easy operation, and an LED light at the needle bar provides clear, focused illumination.
Pricing and Availability on Request
Have a Question? Let us advise you

If you've got a question about our products, call us on +44 (0)161 763 6969 to speak to our team or get in touch here.

Delivery Information

We offer free delivery on every online order over £200 (Net, UK Mainland only — restrictions may apply).

For international orders, the minimum order value we're able to process is £20.00 (Net).

International delivery methods include Economy and Express, with rates calculated at checkout. Please note: Economy delivery to EU27 countries is currently suspended.

Read more about our delivery options on our Freight Charges Explained page.

Description / JACK H2-A-LC-12 LONG ARM WALKING FOOT MACHINE COMPLETE

Jack H2-A-LC-12
- Long Arm Basic Direct Drive Top Feed Lockstitch Machine with 12mm Stitch Length.

Designed for sewing thicker materials such as leather and upholstery fabrics, this 1-needle lockstitch machine is equipped with a built-in energy-saving Direct Drive motor. This integration ensures quiet operation and reduced power consumption. The machine features needle positioning, allowing precise control during sewing. Its double transport system—comprising lower feed dogs and an upper rolling foot—ensures smooth and consistent movement of both fabric layers, even on challenging materials. An intuitive control panel is integrated into the machine head for easy operation, and an LED light at the needle bar provides clear, focused illumination.

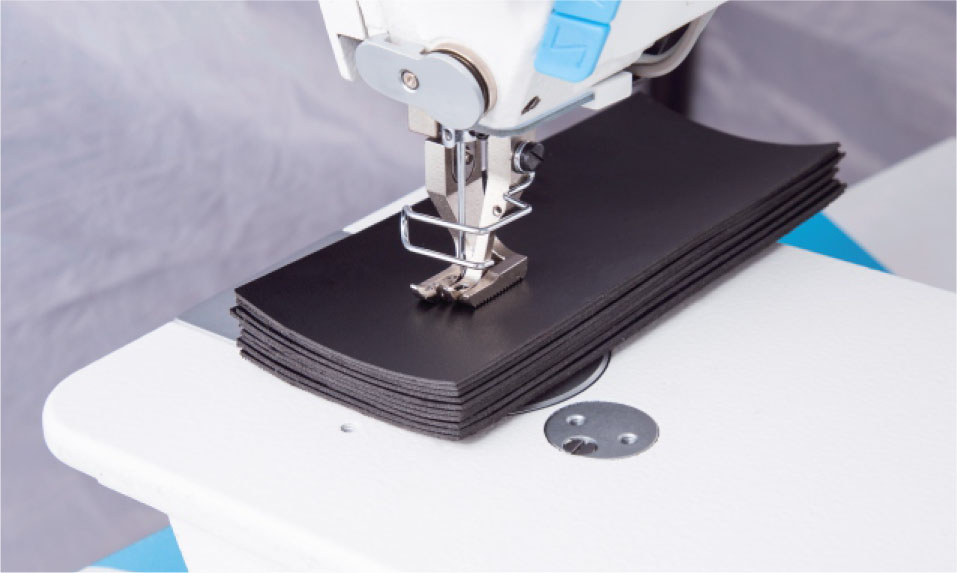

For Heavy Materials

Equipped with top feed and a powerful 750W motor, this machine is built for durability and performance on heavy materials. It can sew up to 10 layers of medium to light leather with excellent results.

For Heavy Materials

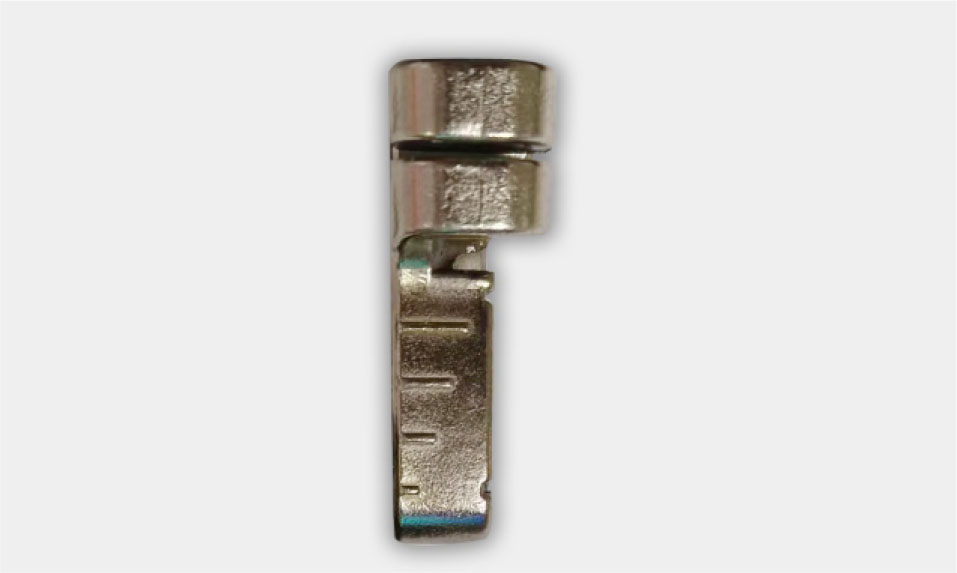

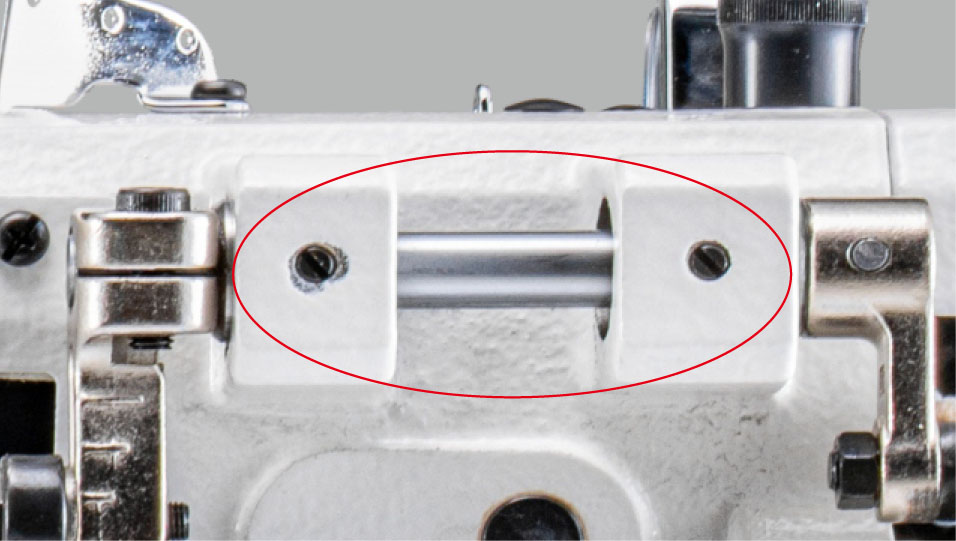

Sealed Presser Foot Bar

Features solid grease lubrication, eliminating the risk of oil stains on fabrics and ensuring cleaner sewing results.

Sealed Presser Foot Bar

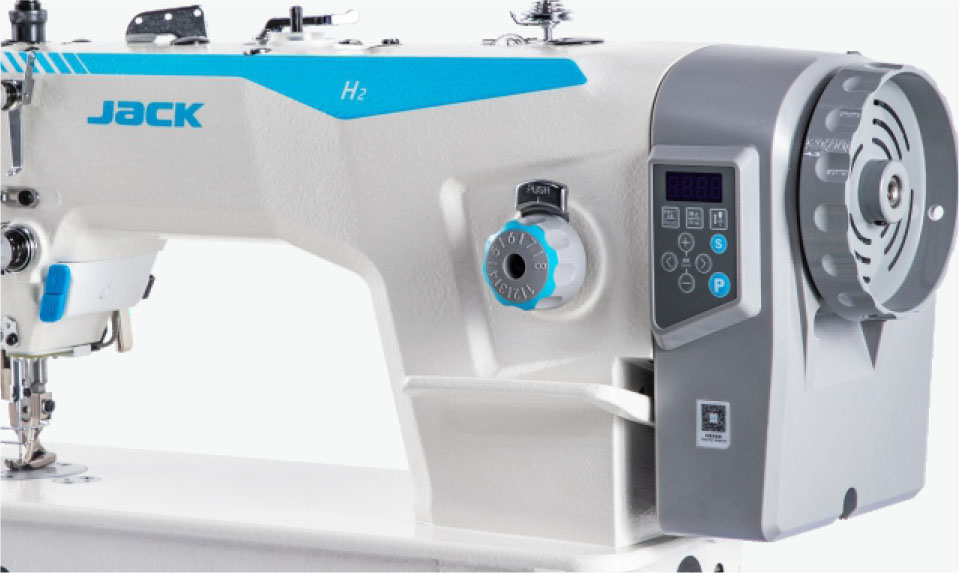

Direct Drive Coaxial Motor

Designed to minimize energy loss, this motor delivers fast, stable, and quiet performance while enhancing the machine’s durability.

Direct Drive Coaxial Motor

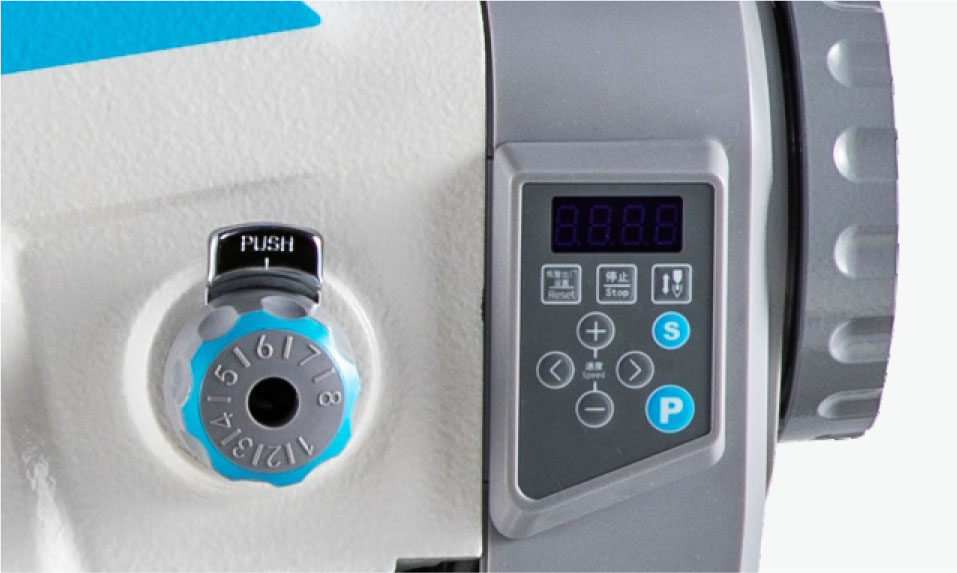

Easy-to-Use Control Panel

Provides quick access to essential functions, along with a dedicated button for restoring factory settings with a single touch.

Easy-to-Use Control Panel

LED Light

Equipped with three adjustable levels of LED lighting, it ensures clear visibility during operation, enhancing comfort and reducing eye strain.

LED Light

Cooling Fan

The handwheel features an integrated cooling system that helps reduce motor temperature. Combined with electronic control, it enhances component strength and extends overall durability.

Cooling Fan

Technical Specification

Model Jack H2-A-LC-12
Application Normal Material

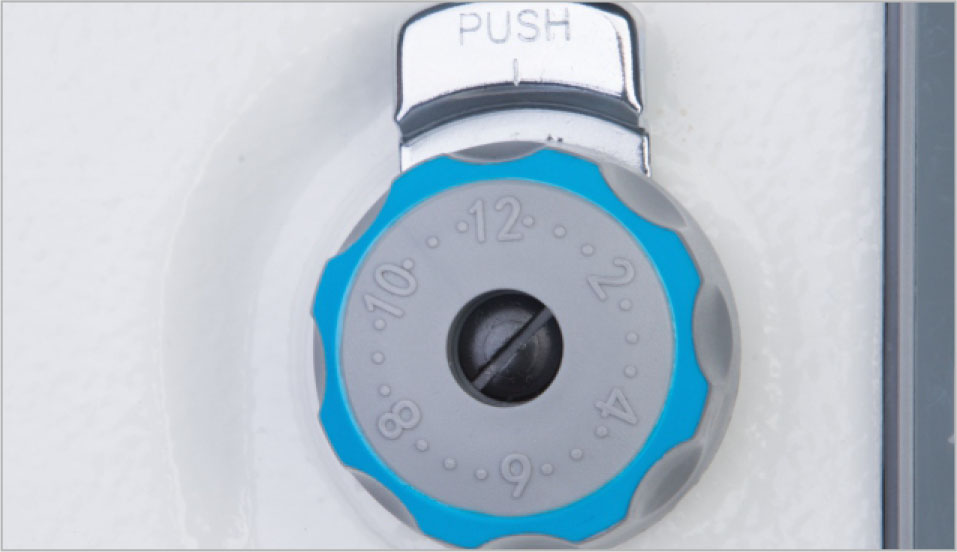

Stitch Length Up To 12mml
Needle DPx17 20-23#
Threads 2
Presser Foot Lifting Height (mm) 7.5-16
Max Sewing Speed (S.P.M) 2200
Volume (mm) 725x285x580
Weight (KG) 40.5/43

Product Attachments

No attachments found.

More Information

Part No JACKH2ALC12
Weight (KG) 74.000000
Manufacturer Jack
