JACK C5T-4-M03/333 2X4 MM D/D TOP FEED 4TH STRAIGHT KNIFE COMPLETE
Description / JACK C5T-4-M03/333 2X4 MM D/D TOP FEED 4TH STRAIGHT KNIFE COMPLETE

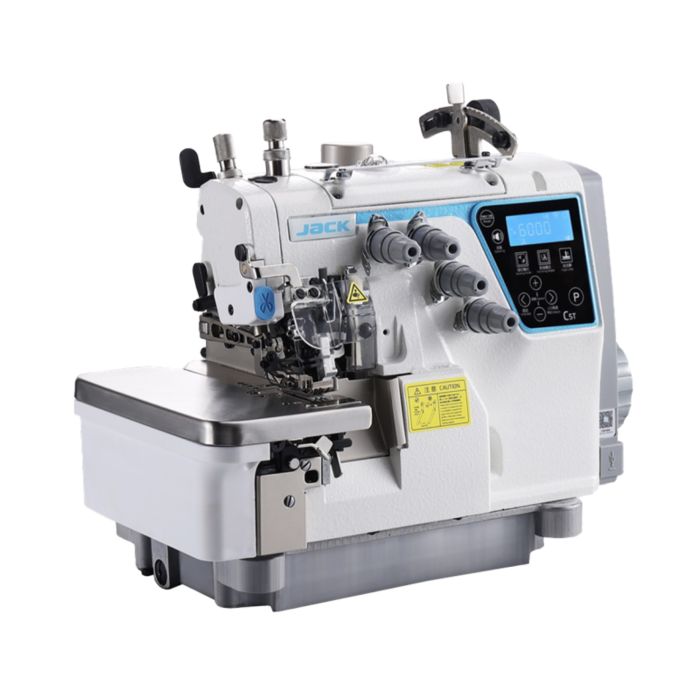

Jack C5T-4-M03/333
- 4-Thread, Integrated differential feeding, high speed computerised overlock machine.
The Jack C5T is a high-speed, integrated differential feed overlock machine designed for superior performance on heavy materials. Engineered for durability, precision, and ease of use, it offers exceptional feeding power, advanced anti-split-layer technology, and intelligent features for efficient long-piece sewing.

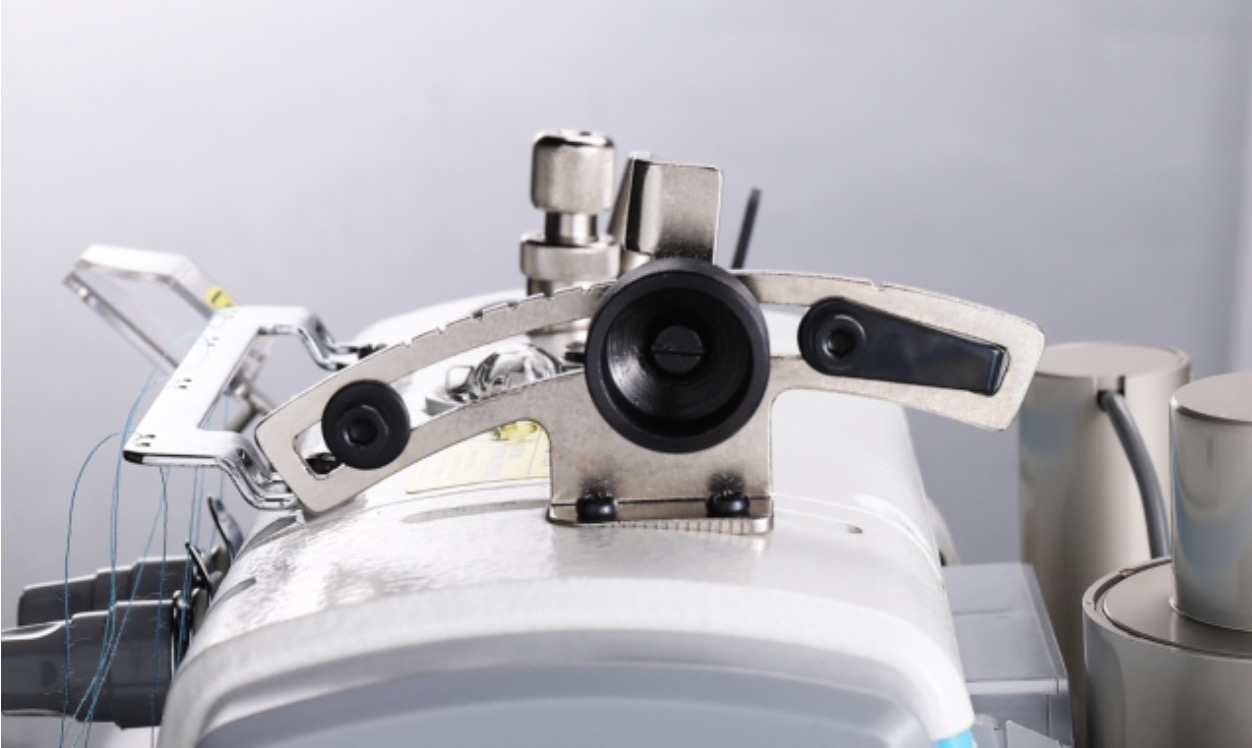

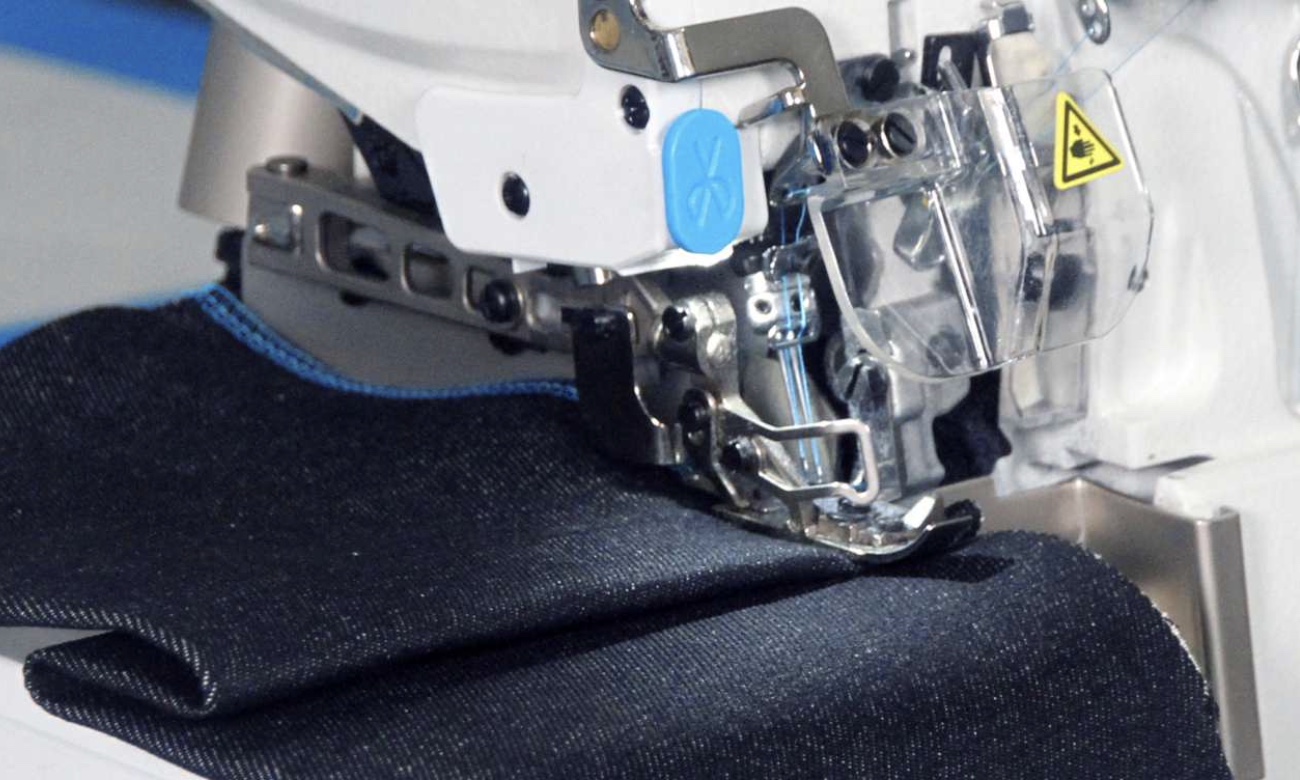

Top Feed
An adjustable gear makes it easy to set the differential ratio between the upper and lower feed, ensuring smooth fabric handling across various materials.

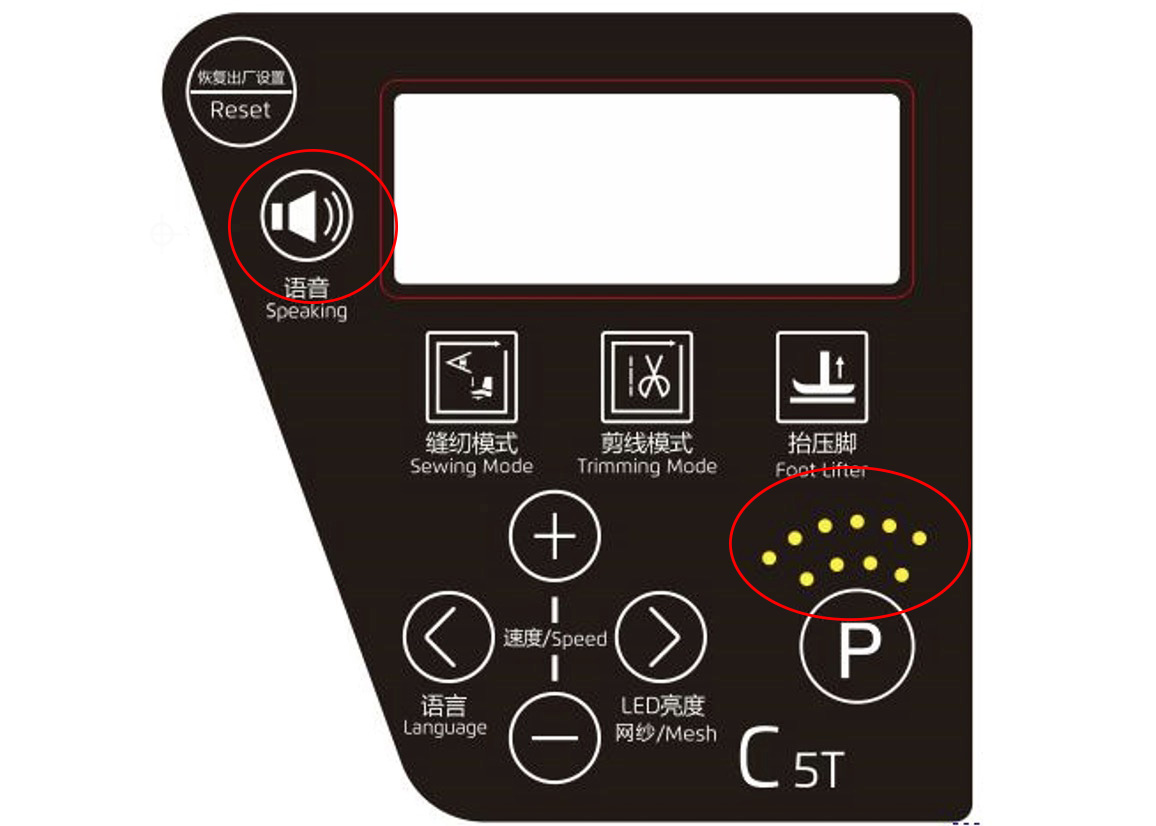

Voice Guide
Learn how to use new functions through the built-in voice guide. In case of errors, press the VOICE button for instant troubleshooting assistance and step-by-step solutions.

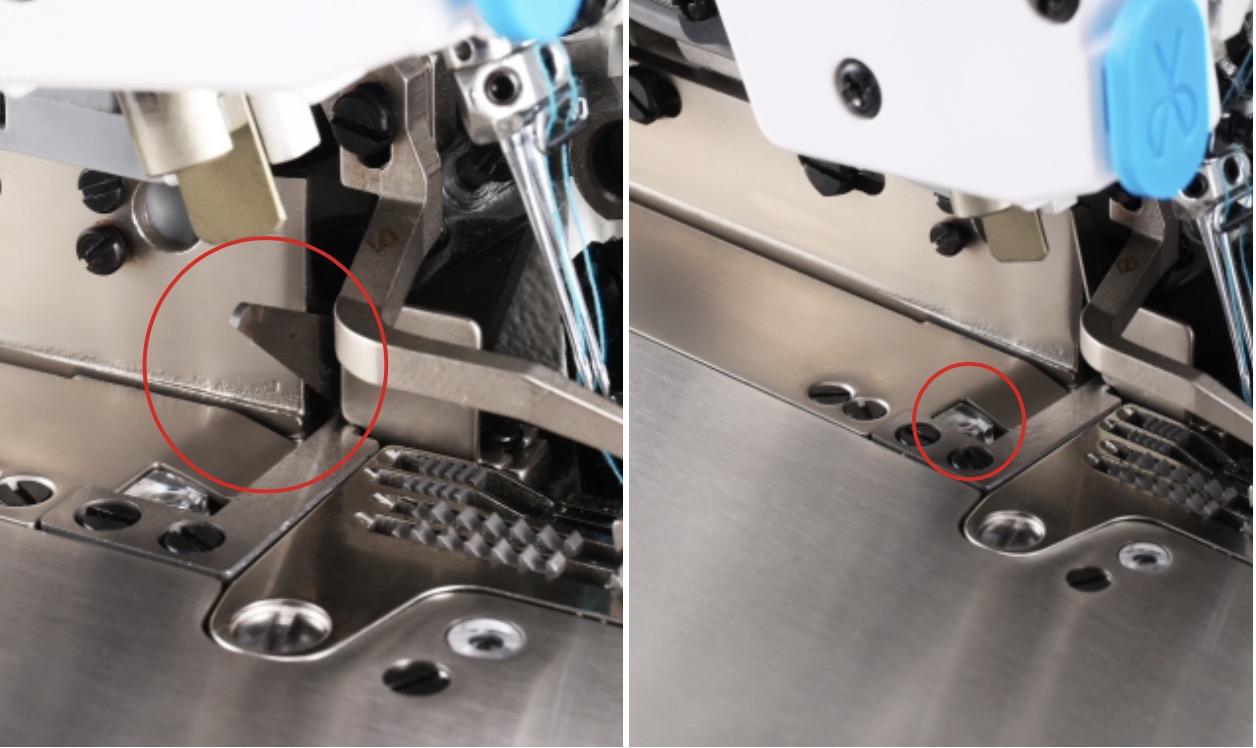

Automatic Chaincut
Equipped with photocells, the electronic cutter automatically activates at the beginning and/or end of the seam, ensuring clean finishes with no manual intervention.

Automatic Footlifter
The presser foot is electronically controlled and automatically lifted before and/or after sewing, thanks to integrated photocells—improving efficiency and ease of operation.

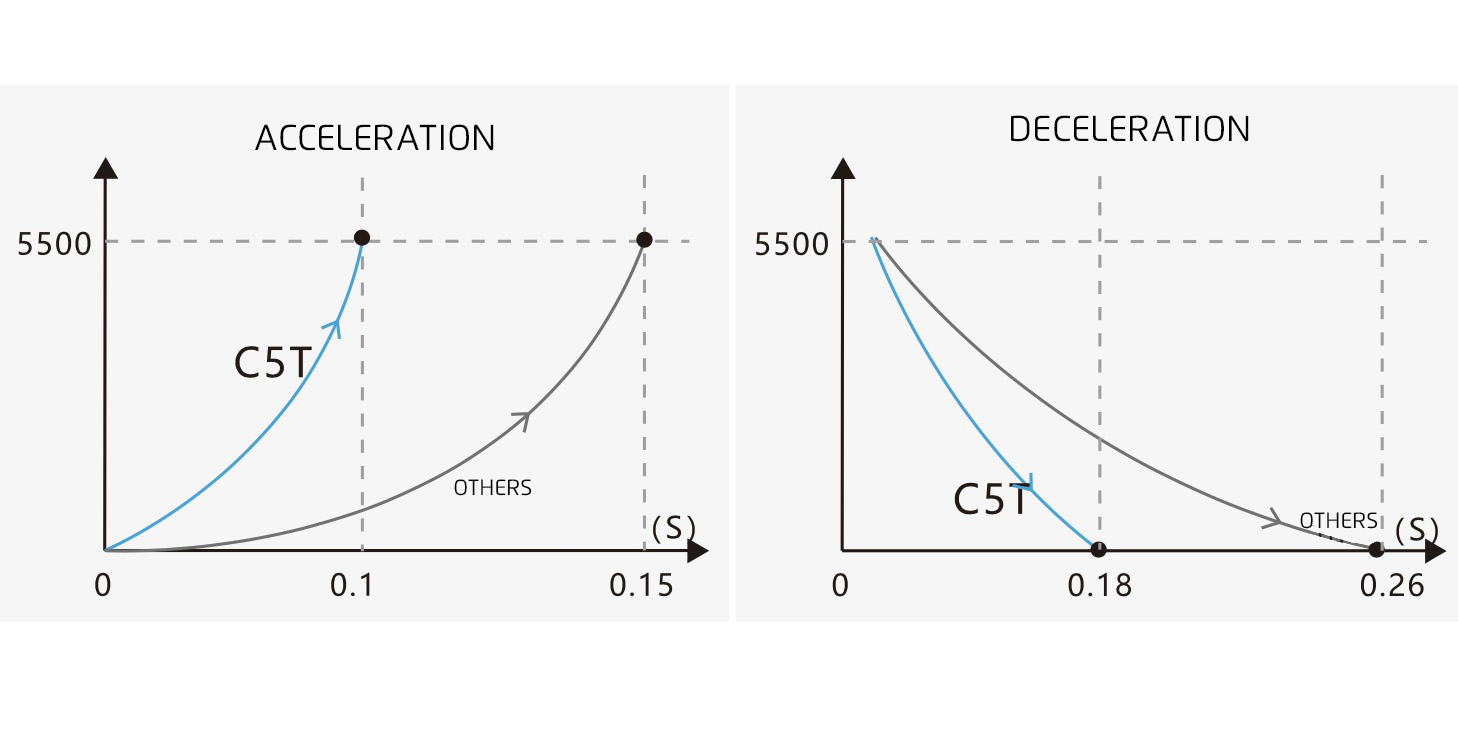

Acceleration and Deceleration
Enhanced responsiveness with 14.3% faster reaction time: accelerates from 0 to 5500 RPM in just 100ms and decelerates back to 0 in 180ms for precise and efficient control.

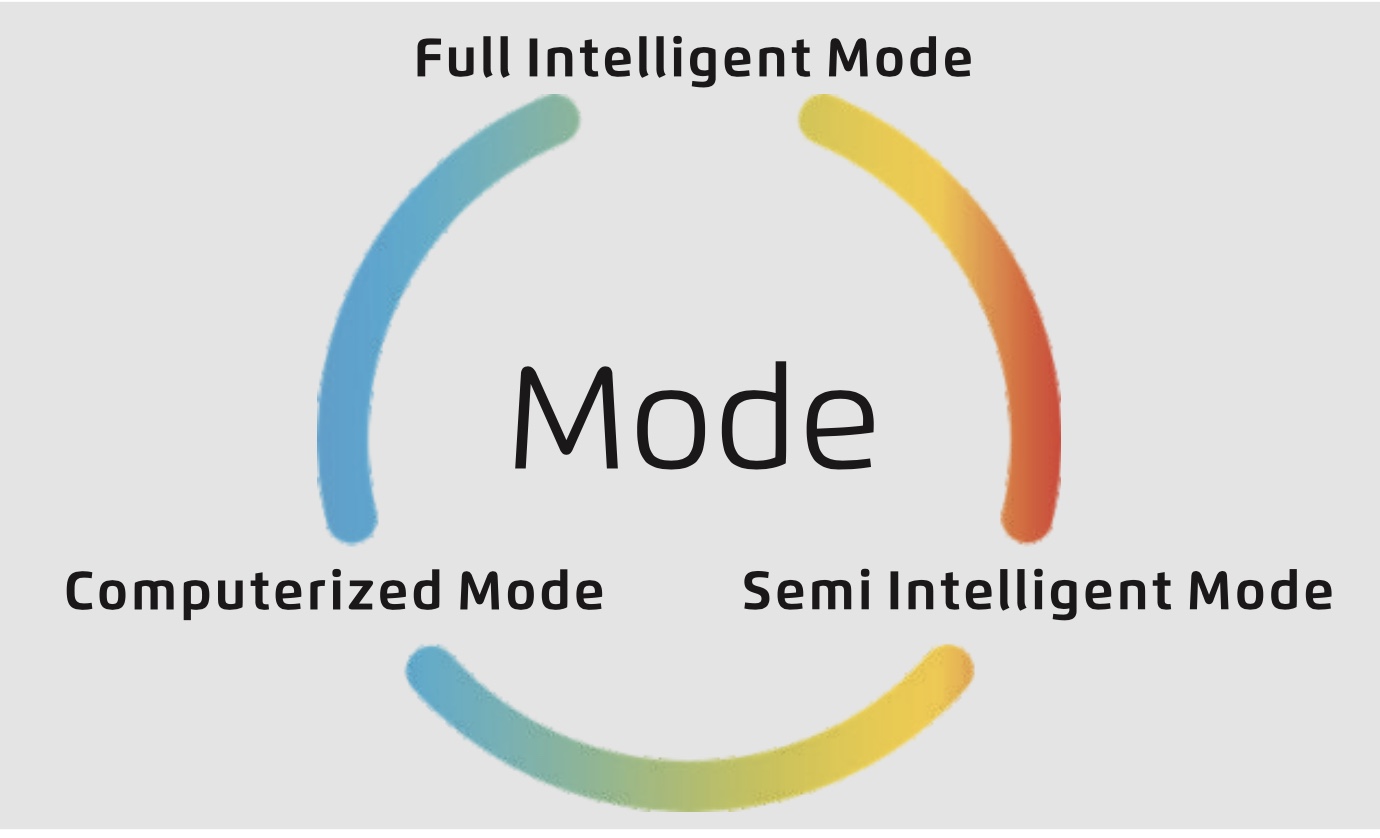

Three Sewing Modes
Choose from three flexible modes:
- Manual: Full control using the pedal.
- Semi-Automatic: Pedal for sewing, with automatic thread trimming and presser foot lift via photocells.
- Automatic: Fully operated by photocells—no pedal required.

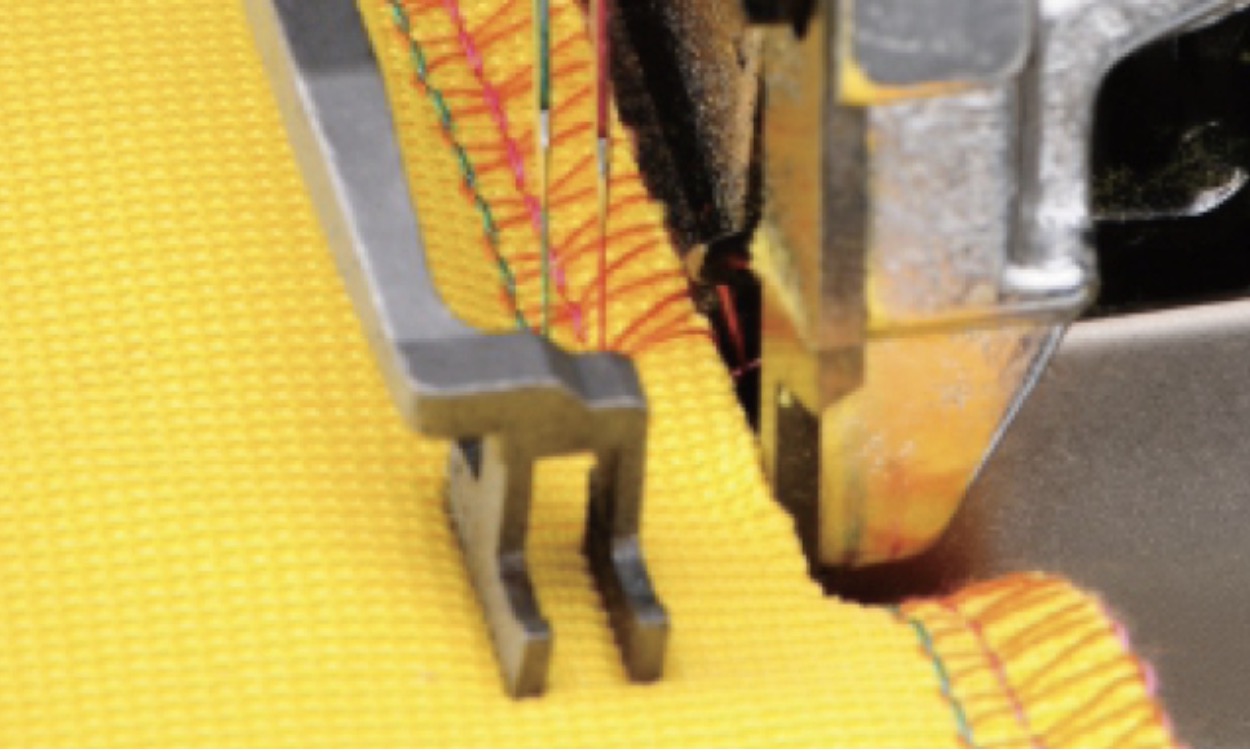

Wide Adaptability
The dual-feed system enhances fabric handling, making it easy to sew a wide range of materials with precision and consistency.

Mesh Fabric Mode
Prevents false starts when sewing thin or transparent fabrics like tulle or organza by disabling photocell activation until proper fabric contact is detected—ensuring flawless stitching from the first stitch.

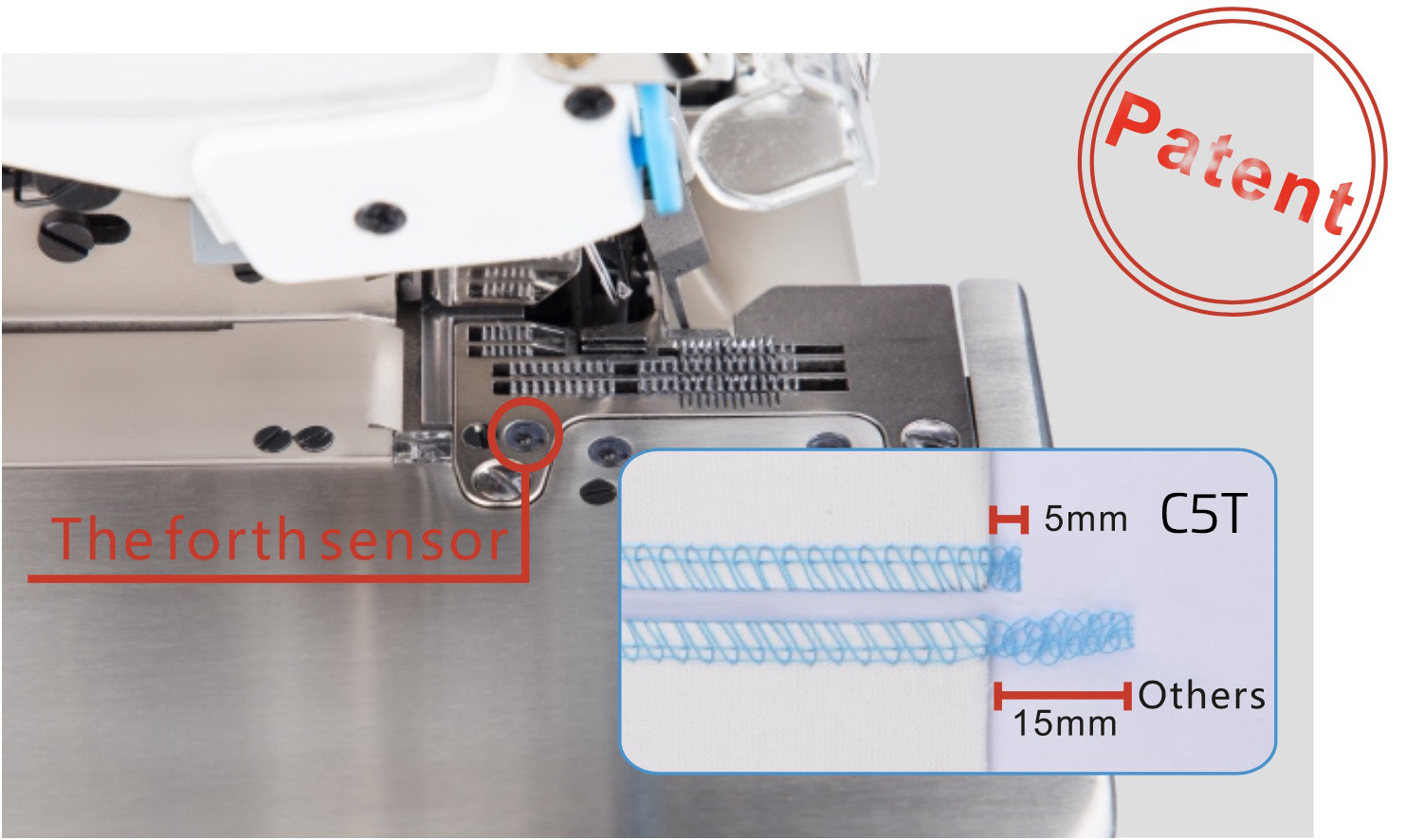

Short Thread Cut
The automatic electric trimmer, triggered by photocells, cuts the thread precisely—8mm at the front and 5mm at the back—minimizing waste and eliminating the need for manual trimming.

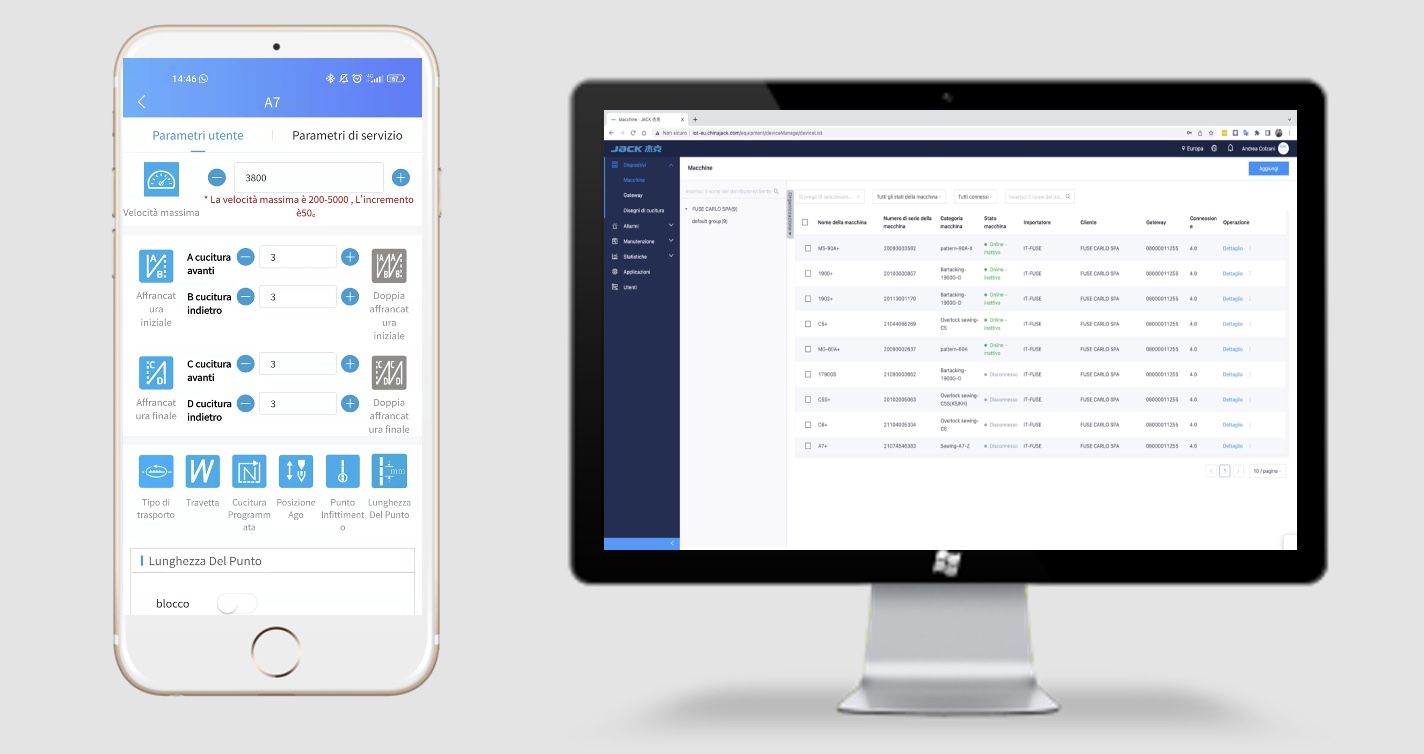

Industry 4.0
With the integrated Wi-Fi module, you can monitor productivity and adjust machine parameters remotely via the app.
Note: One Jack gateway is required for every 50 machines.

Technical Specification
Model | Jack C5T-4-M03/333 |
---|---|
Application | 4-Thread Overlock |
Function | Medium / Light |
Needle | DCx27 #11 |
No. of Needles | 2 |
Needle Distance | 2 |
Stitch Width | 4mm |
Stitch Length | 4.6mm |
Differential Ratio | 0.7-2 |
Presser Foot Lifting Height | 5.5mm |
Max Speed | 6000 s.p.m |
Volume | 505 x 360 x 565 mm |
Weight | 29.2kg / 39.8kg |
More Information
Part No | JACKC5T4M03333 |
---|---|
Weight (KG) | 66.000000 |
Manufacturer | Jack |
