BROTHER S-6280A-813II SINGLE NEEDLE MEDIUM WEIGHT DIRECT DRIVE AUTOMATIC LOCKSTICH MACHINE
Part No
BROS6280A813
Brother S-6280A-813 Single Needle Direct Drive Straight Lock Stitcher (Medium-Weight Materials) with Thread Trimmer and Presser Foot Lifter
Contact Us for Pricing and Availability
Description / BROTHER S-6280A-813II SINGLE NEEDLE MEDIUM WEIGHT DIRECT DRIVE AUTOMATIC LOCKSTICH MACHINE
Brother S-6280A-813
Single Needle Direct Drive Straight Lock Stitcher (Medium-Weight Materials) with Thread Trimmer and Presser Foot Lifter
with direct drive motor and electric presser foot lifter, the machine offers user-friendly operation an high-speed sewing

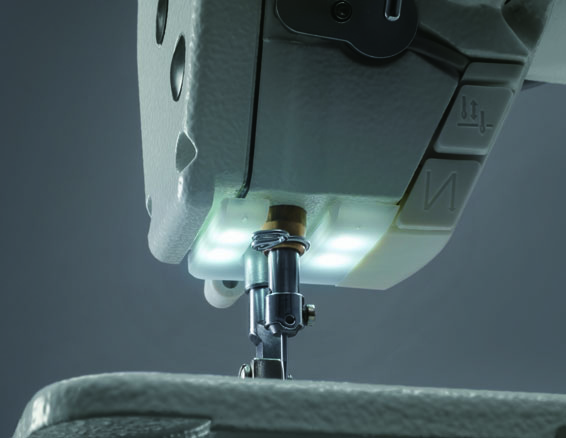

LED Light Equipped as Standard
Handy LED light are equipped at the both side of the needle as a standard for better operation, and it prevents shadows on the garment.

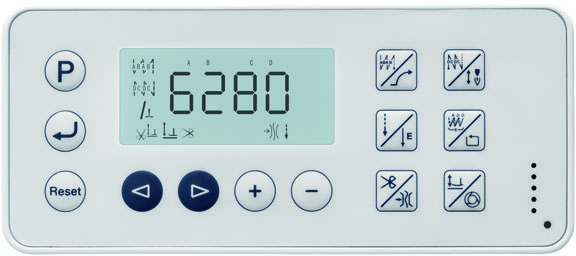

User-friendly Operation Panel l
Easy-to-understand key layout and display.
Electric Presser Foot Lifter
It increases productivity and it reduces the sound compared with mechanical pressure.

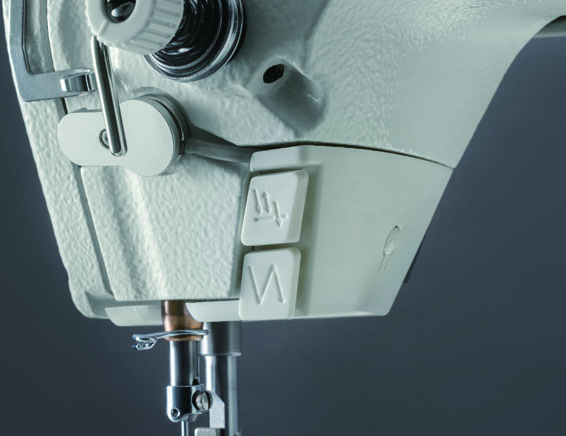

High Operability with 2 Hand Switches
You can assign the function to each switch with various combinations, and it enables your operator to use the machine efficiently.
Technical Specification
| Model | Brother S-6280A-813 |
|---|---|
| Max. Sewing Speed | 5,000 sti/min |
| Max. Stitch Length | 5mm |
| Thread Trimmer Type | Single Action Thread Trimming Mechanism (Ordinary Type) |
| Thread Presser | Standard Equipment |
| Hand Switch | Standard Equipment |
| LED Light | Standard Equipment |
| Electric Presser Foot Lifter | Standard Equipment |
| Height of Presser Foot Lifter | Knee Lifter: 10-15mm Automatic Presser Bar Lifter: 12mm |
| Needle (DBx1 / DBx5) | #11 - #18 |
| Height of Feed Dog | 0.9mm |
| Motor | AC Servo Motor |
| Weight | 36KG |
| Power | Single-Phase: 200-240V Max. Electric Power Consumption: 400VA |
More Information
| Part No | BROS6280A813 |
|---|---|
| Weight (KG) | 43.000000 |
| Manufacturer | Brother |
