BROTHER BE-438HS HEAD ONLY LOCKSTITCH BUTTON SEWING MACHINE
Description / BROTHER BE-438HS HEAD ONLY LOCKSTITCH BUTTON SEWING MACHINE
Brother BE-438HS Nexio
- Electronic Direct Drive Lockstitch Minimum Lubrication Button Sewer (Short remaining thread spec.).
With the world's top-class sewing speed and prevention of thread breakage with a needle cooler, the machine has increase productivity. It also has superior quality, usability, and reduceds maintenance cost.

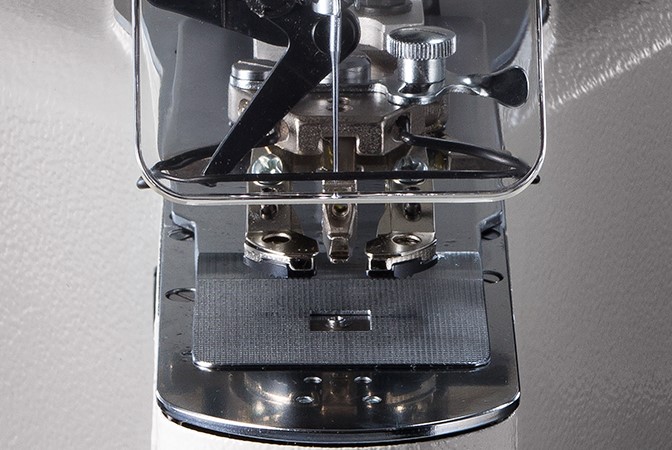

Wide variety of sewing capability due to renewed button clamp
Set button smoothly
Renewed button clamp enables to set a button more smoothly.
It enables to sew a large button(20-30mm) as well.
BE-438H can sew a large button(20-30mm) as option. You can sew more applications with this sewing machine.
Productivity improvement by World’s Top-class Sewing Speed and IoT
Overwhelmingly Superior Productivity with Sewing Speed 3,300sti/min
KE-430H provides 3,300sti/min and contributes to enhance productivity.
Productivity Improvement with IoT
NEXIO series are IoT applicable models. The visualization by connecting sewing machine and computer technology enables the customer to analyze, manage processes and speed up productivity improvement and maintenance work.

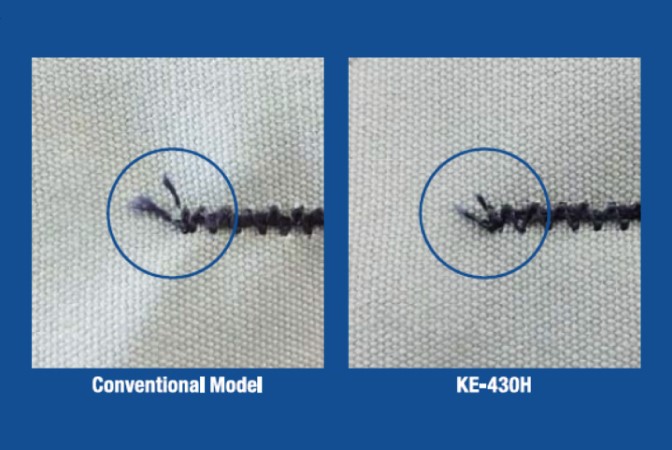

Reduction of Disposition of Thread Ends (Short Remaining Thread)
Thread trimmer driven by stepping motor cuts the thread more shortly, stably and quietly than conventional mechanical thread trimmer. It reduces hand trimming work after sewing.
Also, the thread nipper, equipped as standard, minimizes thread cast off at sewing start and bird’s nest.
Beautiful and Highly-reproducible Sewing Quality
Thread Tension can be Set as Numerical Value by Digital Tension
You can adjust the tension appropriately for the material being sewn without relying on individual feel. It provides higher production management and sewing reproducibility.
Clean Sewing without Oil Staining
HS models are minimum lubrication and they supply limited oil only to the needle bar and thread take-up and prevent oil from being dispersed, realizing clean sewing for your valued product.
Superior Usability as Everyone can Use Easily and Reliably

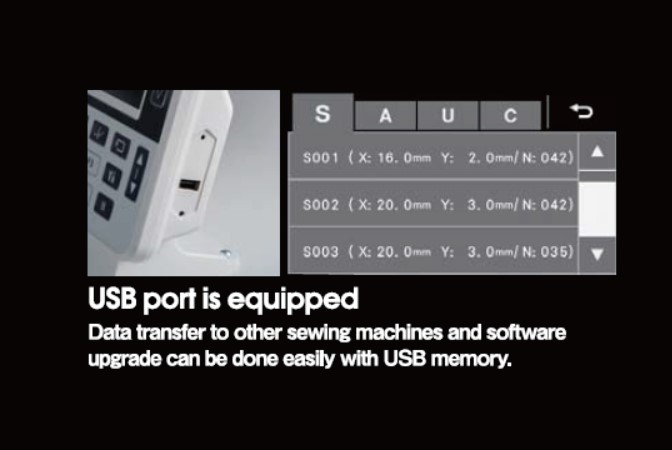

User-intuitive Color LCD with Touch Panel
Equipped the Color LCD with touch panel and indicates display items with illustration icons, offering use-intuitive operation. It is very easy to set cycle program. Also, sewing patterns, sewing speed, magnification and upper thread tension can be memorized easily as user programs.
Reduction of Maintenance Cost as No Need for Grease-up Work.
There is no need for grease-up work at connecting rod because it adopts oil lubricating. It reduces maintenance work.
Low Noise and Low Vibration for Stress-Free Operation
Low Noise and Low Vibration for Stress-Free Operation
Wide variety of sewing capability due to enlarged sewing area
Sewing area can be expanded from 40mmx30mm to 50mmx40mm as option. It enables to sew more applications such as hook and loop fastener and applique.
Technical Specification
| Model | Brother BE-438HS |
|---|---|
| Application | Button attaching |
| Lubrication | Minimum lubrication |
| Max. sewing speed | 2,800sti/min |
| Max. sewing area | Max.6.4x6.4mm |
| Dimensions of buttons that can be sewn | Outer diameter of buttons 8-30mm*1 |
| Stitch length | 0.05～6.4mm |
| Feed mechanism | Y-θintermittent feed mechanism (pulse-motor driven mechanism) |
| No. of stitches | Variable (Refer to "Program List" for details on the number of stitches for sewing patterns that are already preset) |
| Max.No. of stitches | 5,000 stitches/pattern |
| Work clamp lifter | Pulse motor drive system |
| Work clamp height / Button clamp height | Max. 13mm |
| Rotary hook | Shuttle hook (double shuttle hook, optional) |
| Digital tension | - |
| Thread wiper | Standard equipment |
| Thread trimmer | Standard equipment |
| Thread nipper | Standard equipment |
| Data storage method | Internal flash memory (Data addition is available with external memory) |
| No. of cycle programs | 30 cycle (50 programs for each cycle) |
| No. of stored data | 64 sewing patterns are set already (up to 512 patterns can be added. Total number of stitches of stored data which can be added is within 500,000*2) |
| Motor | AC servo motor 550W (Direct Drive) |
| Weight | Machine head: Approx. 57kg Operation panel: Approx. 0.4kg Control box: Approx. 9kg |
| Power supply | Single-phase 100V/200V, 3 phase 220V/380V/400V 400VA (For single-phase 100V and 3-phase 380V/400V, the trans box is require |
