The use of the advanced controlled, heavy duty feed mechanism provides excellent, superb stitch quality and tight stitching even for extra-heavy sewing applications.
Also, the upper thread feeding device which supplies the necessary length of upper thread at the start of sewing, preventing the thread from pulling-out regardless of the material feeding amount.

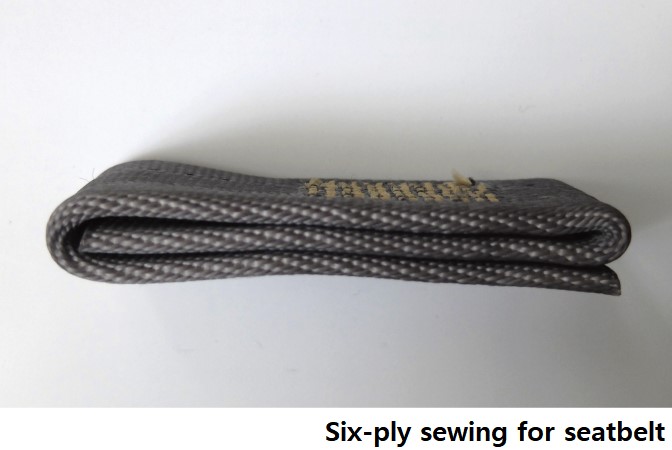

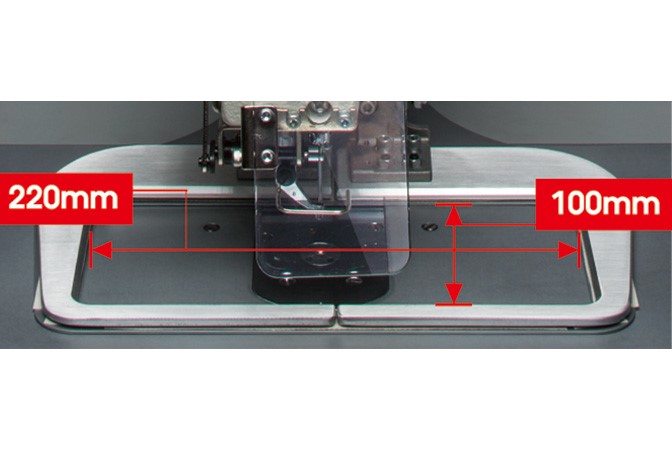

The sewing area is enlarged to 220mmx100mm, compared to the previous model. It is suitable not only for seatbelt sewing but also for webbing materials.

Treble hook is equipped as standard so that the frequency of bobbin changes can be reduced, leading to productivity enhancement.

Higher rigid feed mechanism was adopted while achieving the world's top-class sewing speed of 2,800 sti/min. With its accurate stitch point, the machine can perform beautiful stitching with stable thread tightening.

Higher rigid feed mechanism was adopted while achieving the world's top-class sewing speed of 2,800 sti/min. With its accurate stitch point, the machine can perform beautiful stitching with stable thread tightening.

The upper thread tension can be digitalized with the Digital Tension, providing stable stitching. No more relying on individual feel. When thread breakage is detected, sewing operation is stopped automatically and warning is given to the operator, leading to the less detectives.

Powerful motor(550W) outputs large amounts of torque even at slow speeds so that strong needle penetration force can be obtained. If the needle penetration resistance increases, vibration control(intermittent impact) automatically increases the penetration force.

This machine is the most energy-saving programmable electronic pattern sewing machine among in its class, while realizing high-speed sewing and strong needle penetration force.

It realized stable thread tightening at low tension sewing. Excessive or insufficient pressing by the stepping foot can be prevented, enabling a finish with uniform thread tightening.

You can select a desired work clamp lowering operation from two patterns by changing the memory switch settings (Two-step lowering or One-step lowering). (BAS-341H/342H only)

The driver can be adjusted from the side without tilting the sewing machine. This reduces time taken for adjustment and improves productivity when materials are changed.

The work clamp can be replaced quickly by loosening the two screws (BAS-311HN/326H), and four screws (BAS-341H/342H). When replacing the feed plate, align the reference holes of needle plate and the feed plate.

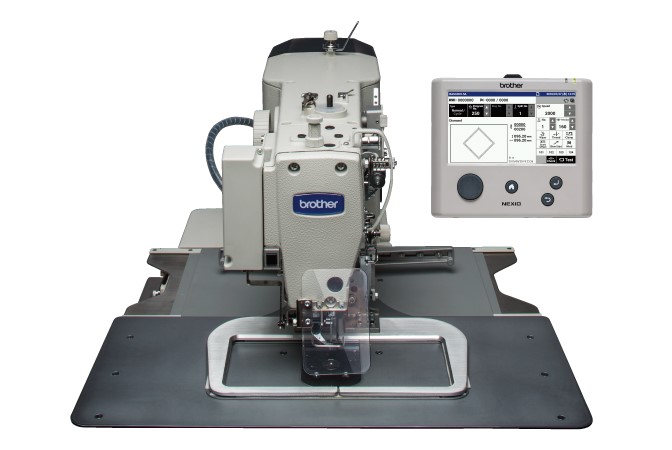

7-inch large screen and easy programming functions via LCD touch panel enable an intuitive operation. It is easily understood without the instruction manual or previous experience in fewer steps.

Program Creating
Program creation can be available easily with illustration icons.

Program Selection
The information regarding the program is seen at one screen. The setting change is available on it.

Memory Switch Settings
The detail of Memory switch settings can be checked on the panel without the manuals.

File Selection
The preview of the program can be seen on the panel.

Manual Display
The mistakable preparations such as Threading the upper thread, Winding the lower thread can be checked on the panel.

Error Message Display
When an error occurs, the error message and solution are displayed on the panel, helping reduce the downtime.

Multimedia Support
Supporting the SD card (1 slot), USB (2 port). An expansion port is also supported, enabling to connect with a bar code reader etc.
