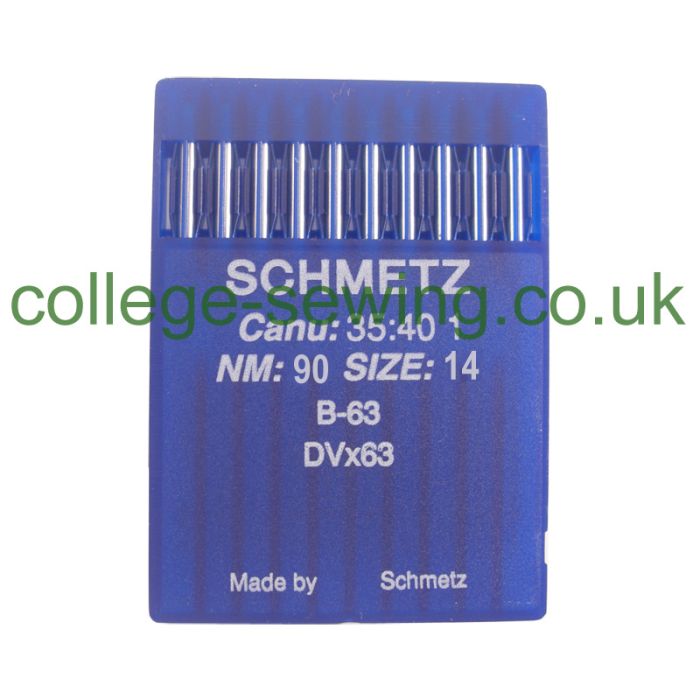

B63 SIZE 90 PACK OF 10 NEEDLES SCHMETZ
Part No
B63X90
Schmetz 35:40 1 - B-63, DVX63, RIM 63 - NM 90 / Size 14 - STANDARD (Normal round point) Packet of 10 Needles.
£4.61
In Stock
Description / B63 SIZE 90 PACK OF 10 NEEDLES SCHMETZ
Schmetz 35:40 1 - B-63, DVX63, RIM 63 - NM 90 / Size 14 - STANDARD (Normal round point) Packet of 10 Needles.
STANDARD (Normal round point)
The normal round point is the standard point form and has a slim, conical shape. No point supplement "R" is mentioned in the system code.
Needle Specification
| Customary Needle Designations | B-63, DVX63, RIM 63 |
|---|---|
| CANU | 35:40 1 |
| NM / Size | NM: 90 / Size: 14 |
| Point Style | STANDARD (Normal round point) |
| Type of Coating | Chrome |

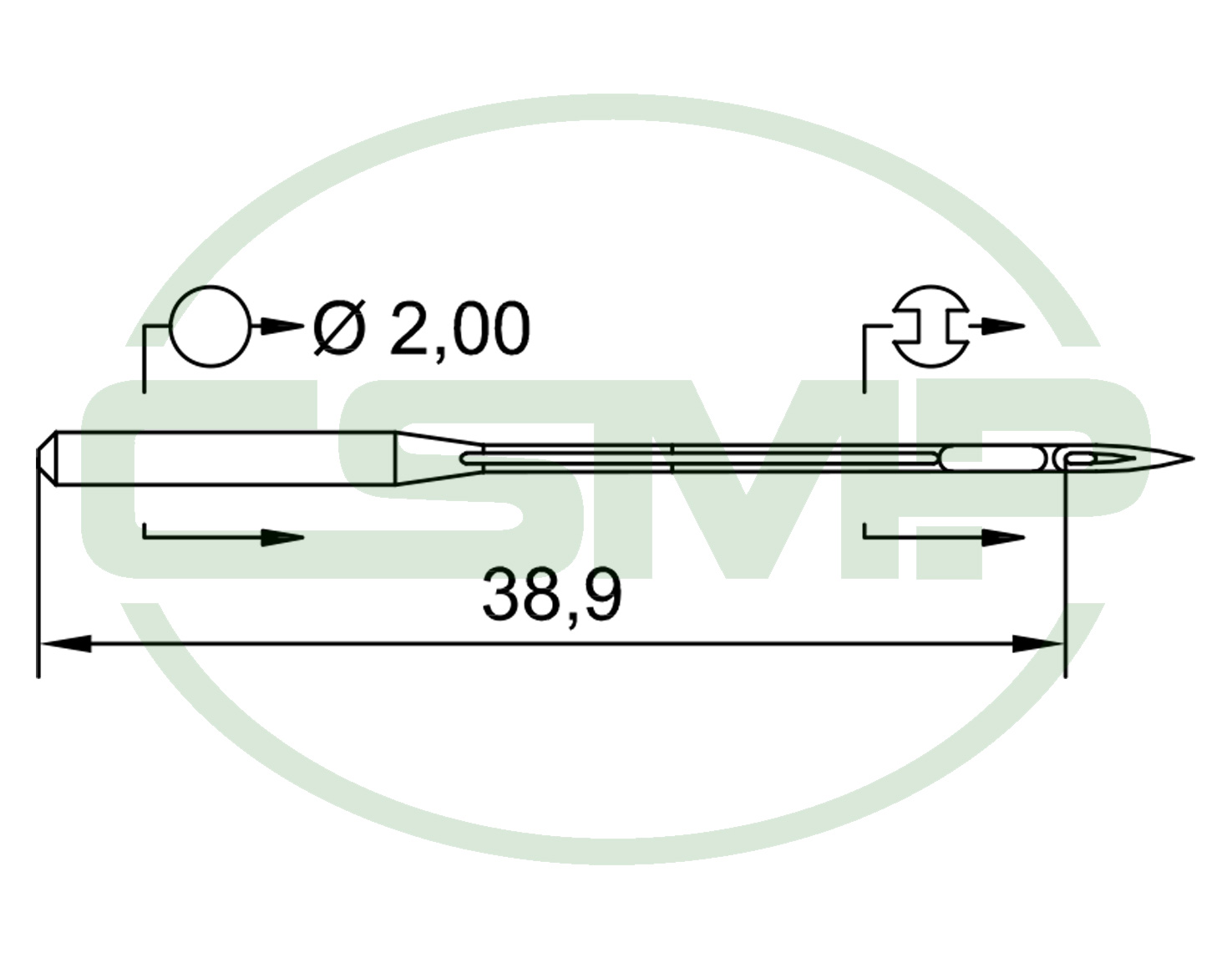

| Shank-ø | 2 mm |
| Overall Length | 43.7 mm |
| Length to Eye | 38.9 mm |
| Shank Flattening | Without shank flattening |
| Blade Shape | Straight |
| Number of Grooves | 3 |
| Stitch Type | Chainstitch |
More Information
| Part No | B63X90 |
|---|---|
| Weight (KG) | 0.015000 |
| Manufacturer | Schmetz |
| Needle Size | NM 90 / Size 14 |
| Mat. No. | 755114 |
