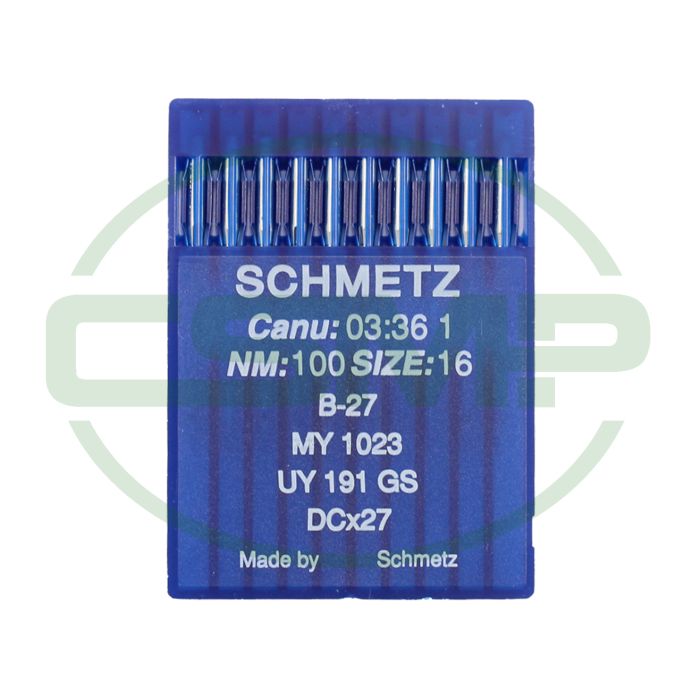

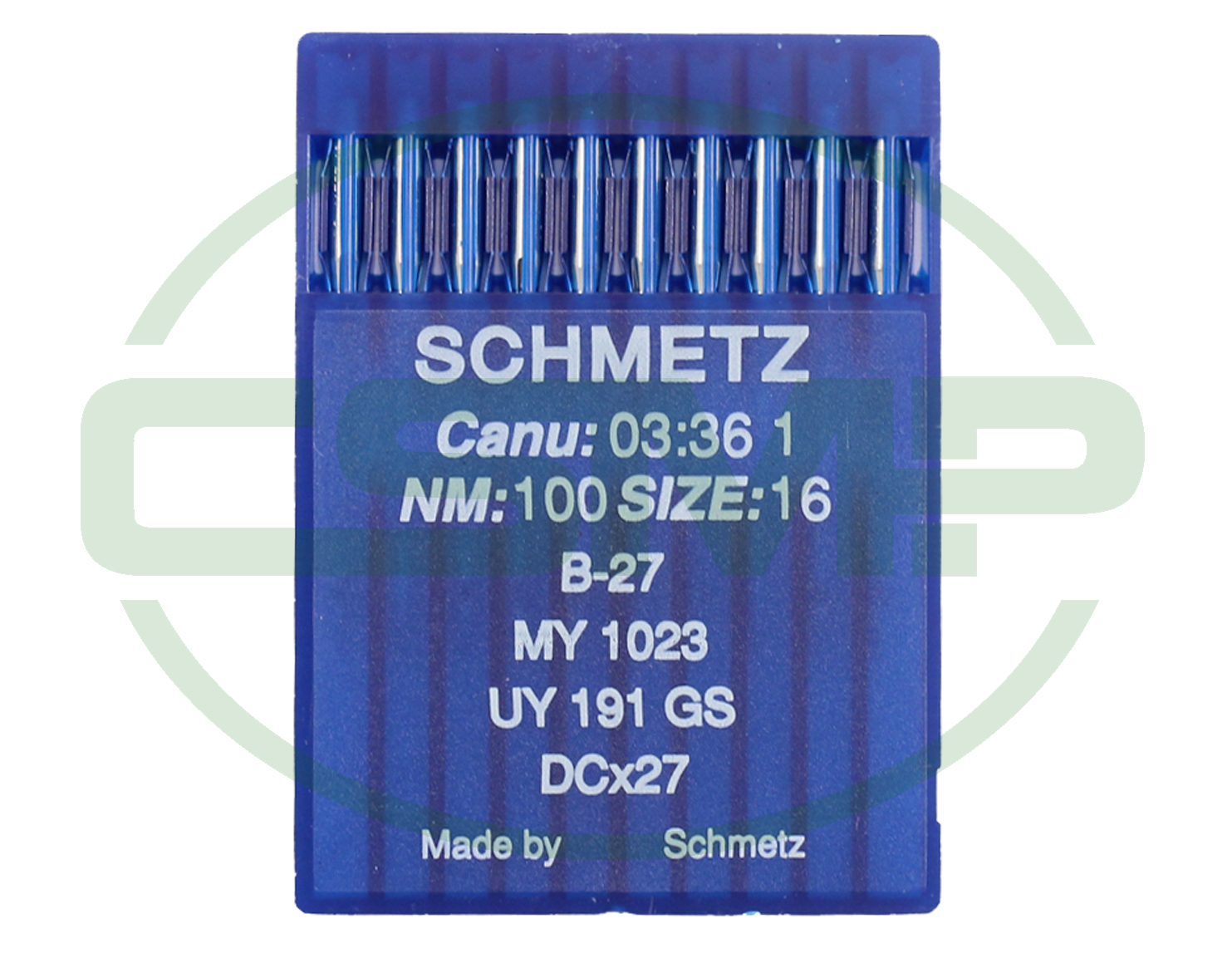

B27 SIZE 100 PACK OF 10 NEEDLES SCHMETZ
Part No
B27X100
Schmetz 03:36 1 - B-27, MY 1023, UY 191 GS, DCX27, RIM 27 - NM 100 / Size 16 - STANDARD (Normal round point) Packet of 10 Needles.
£2.92
In Stock
Description / B27 SIZE 100 PACK OF 10 NEEDLES SCHMETZ
Schmetz 03:36 1 - B-27, MY 1023, UY 191 GS, DCX27, RIM 27 - NM 100 / Size 16 - STANDARD (Normal round point) Packet of 10 Needles.
STANDARD (Normal round point)
The normal round point is the standard point form and has a slim, conical shape. No point supplement "R" is mentioned in the system code.

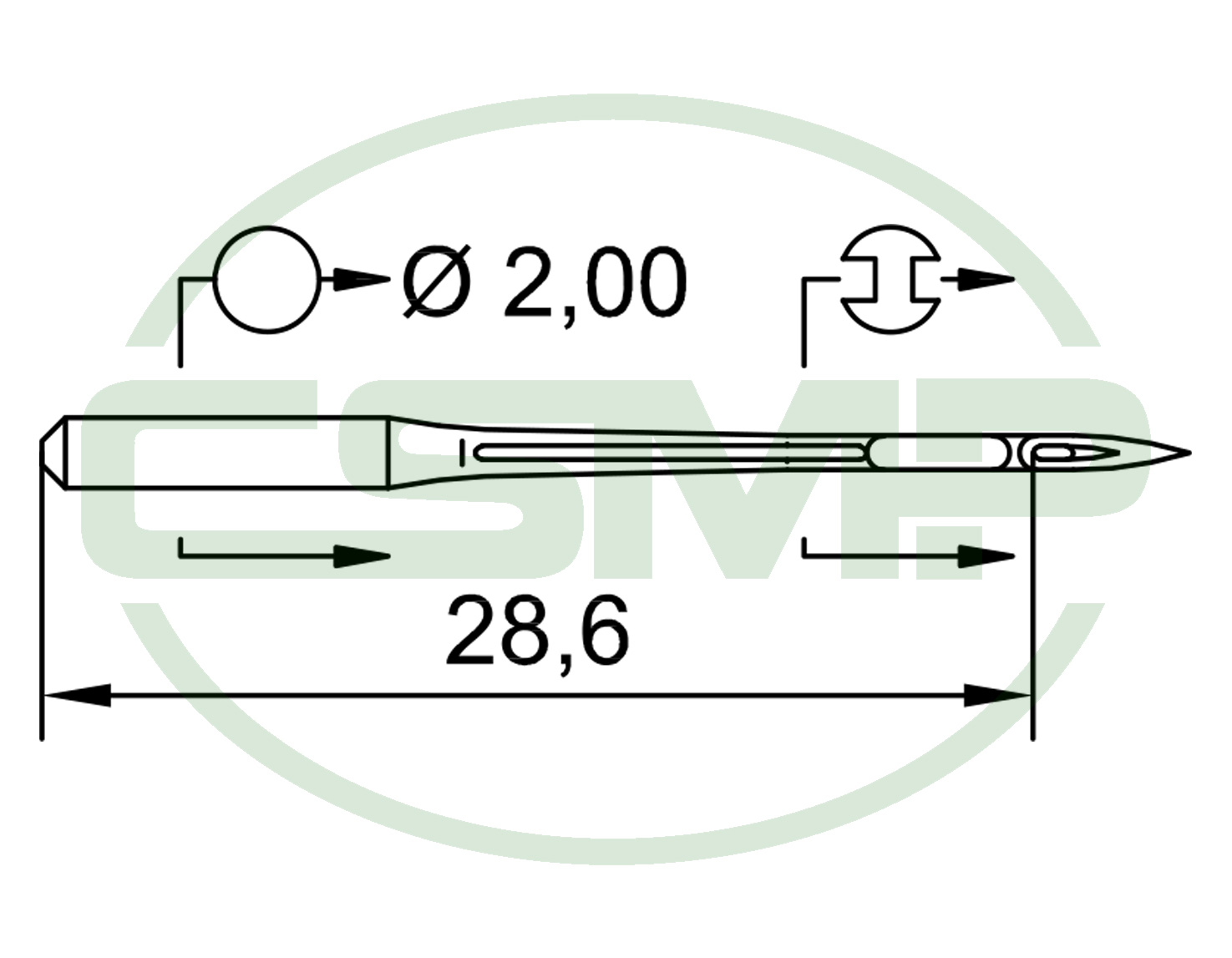

Needle Specification
| Customary Needle Designations | B-27, MY 1023, UY 191 GS, DCX27, RIM 27 |
|---|---|
| CANU | 03:36 1 |
| NM / Size | NM: 100 / Size: 16 |
| Point Style | STANDARD (Normal round point) |
| Type of Coating | Chrome |
| Shank-ø | 2.00 mm |
| Overall Length | 33.1 mm |
| Length to Eye | 28.6 mm |
| Shank Flattening | Without shank flattening |
| Blade Shape | Straight |
| Number of Grooves | 3 |
| Stitch Type | Chainstitch |
More Information
| Part No | B27X100 |
|---|---|
| Weight (KG) | 0.007000 |
| Manufacturer | Schmetz |
| Needle Size | NM 100 / Size 16 |
| Mat. No. | 702404 |
