287WKH SIZE 65 PACK OF 10 NEEDLES SCHMETZ
Part No
287WKHX65
Schmetz 13:22 1 - 287 WK, 287 WK H, DBX287 WKH - NM 65 / Size 9 - STANDARD (Normal round point) Packet of 10 Needles.
£4.39
In Stock
Description / 287WKH SIZE 65 PACK OF 10 NEEDLES SCHMETZ
Schmetz 13:22 1 - 287 WK, 287 WK H, DBX287 WKH - NM 65 / Size 9 - STANDARD (Normal round point) Packet of 10 Needles.
STANDARD (Normal round point)
The normal round point is the standard point form and has a slim, conical shape. No point supplement "R" is mentioned in the system code.
Needle Specification
| Customary Needle Designations | 287 WK, 287 WK H, DBX287 WKH |
|---|---|
| CANU | 13:22 1 |
| NM / Size | NM: 65 / Size: 9 |
| Point Style | STANDARD (Normal round point) |
| Type of Coating | Chrome |

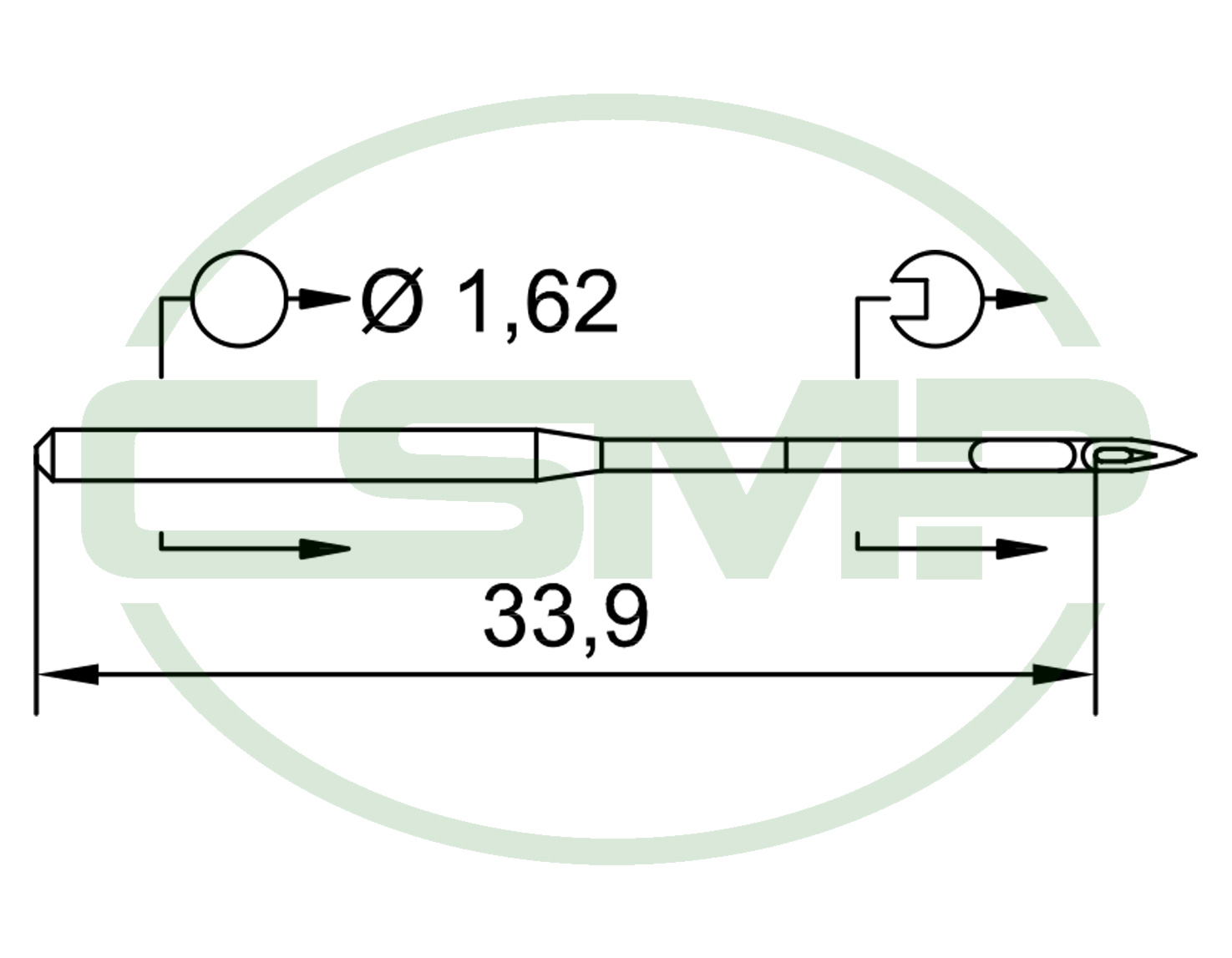

| Shank-ø | 1.62 mm |
| Overall Length | 36.7 mm |
| Length to Eye | 33.9 mm |
| Shank Flattening | Without shank flattening |
| Blade Shape | Straight |
| Number of Grooves | 1 |
| Stitch Type | Lockstitch |
More Information
| Part No | 287WKHX65 |
|---|---|
| Weight (KG) | 0.015000 |
| Manufacturer | Schmetz |
| Needle Size | NM 65 / Size 9 |
| Mat. No. | 712104 |
