2331F SD1 SIZE 110 PACK OF 10 NEEDLES SCHMETZ DISCONTINUED
Part No
2331FSD1X110
Schmetz 49:07ME1 - 2331 F SD1, 48.50 SD1, EBX2 SD1 - NM 110 / Size 18 - SD1 (Round point with small triangular tip) Packet of 10 Needles.
£9.40
In Stock
Description / 2331F SD1 SIZE 110 PACK OF 10 NEEDLES SCHMETZ DISCONTINUED
Schmetz 49:07ME1 - 2331 F SD1, 48.50 SD1, EBX2 SD1 - NM 110 / Size 18 - SD1 (Round point with small triangular tip) Packet of 10 Needles.
SD1 (Round point with small triangular tip)
This round point with a very small triangular incision cuts approx. 10 % of the stitch hole, 90 % is displaced by the conical round point "R". The result is a straight seam and a tidy seam appearance. The incision is smaller than with a cutting point.

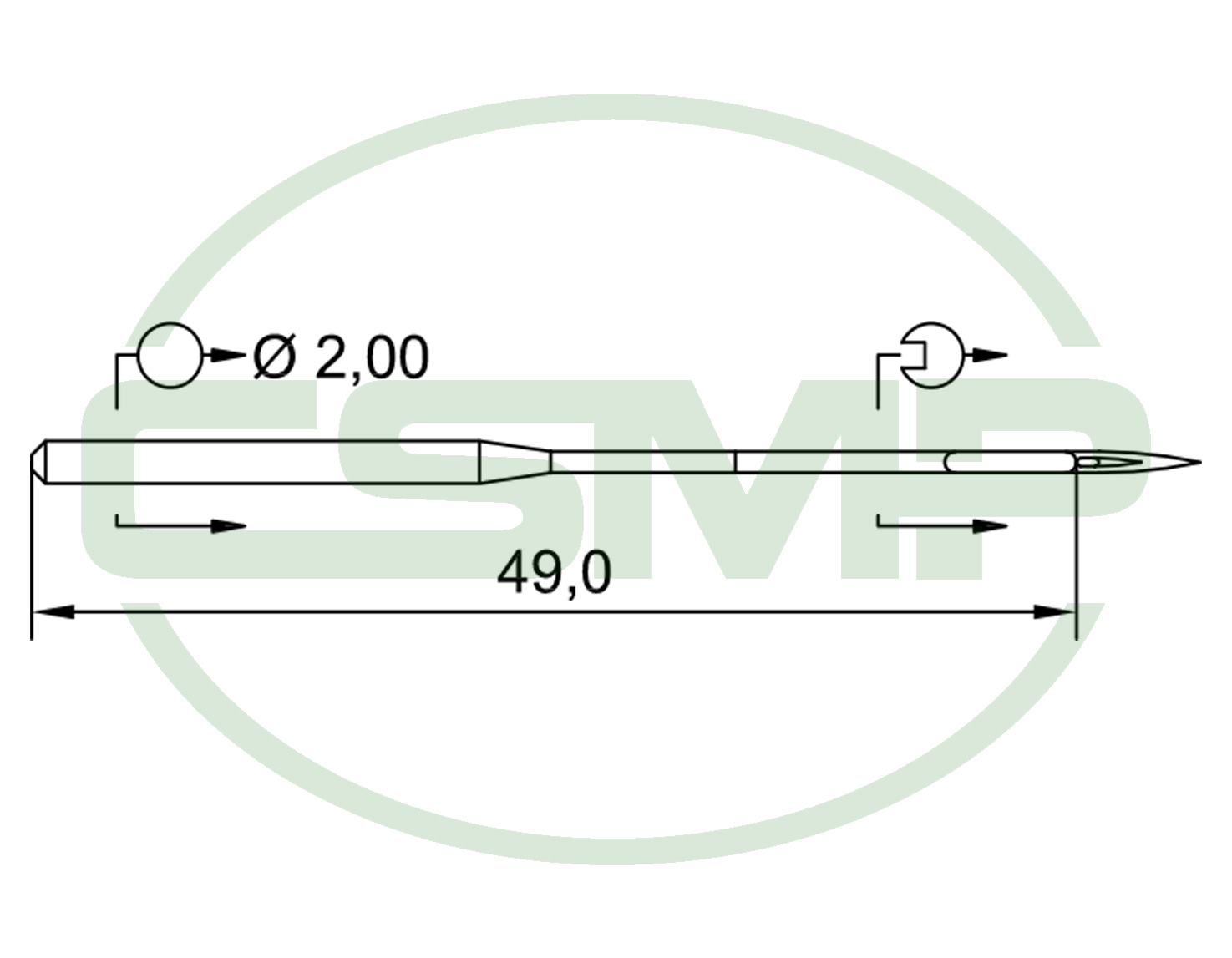

Needle Specification
| Customary Needle Designations | 2331 F SD1, 48.50 SD1, EBX2 SD1 |
|---|---|
| CANU | 49:07ME1 |
| NM / Size | NM: 110 / Size: 18 |
| Point Style | SD1 (Round point with small triangular tip) |
| Type of Coating | Chrome |
| Shank-ø | 2 mm |
| Overall Length | 54.8 mm |
| Length to Eye | 49 mm |
| Shank Flattening | With shank flattening |
| Flattening° | 90° |
| Blade Shape | Straight |
| Number of grooves | 1 |
| Stitch Type | Lockstitch |
More Information
| Part No | 2331FSD1X110 |
|---|---|
| Weight (KG) | 0.015000 |
| Manufacturer | Schmetz |
| Needle Size | NM 110 / Size 18 |
