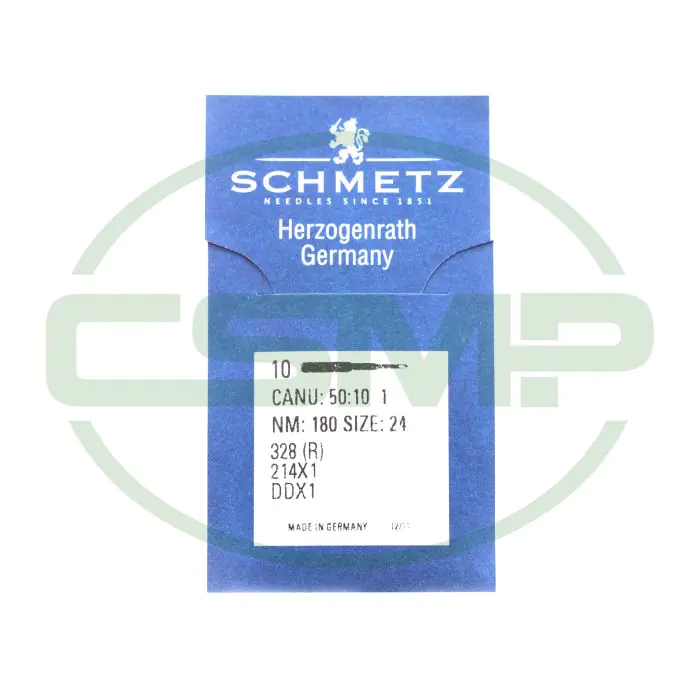

214X1 SIZE 180 PACK OF 10 NEEDLES SCHMETZ
Part No
214X1X180
Schmetz 50:10 1 - 328 (R), 214X1, DDX1 - NM 180 / Size 24 - STANDARD (Normal round point) Packet of 10 Needles.
£7.25
In Stock
Description / 214X1 SIZE 180 PACK OF 10 NEEDLES SCHMETZ
Schmetz 50:10 1 - 328 (R), 214X1, DDX1 - NM 180 / Size 24 - STANDARD (Normal round point) Packet of 10 Needles.
STANDARD (Normal round point)
The normal round point is the standard point form and has a slim, conical shape. No point supplement "R" is mentioned in the system code.
Needle Specification
| Customary Needle Designations | 328 (R), 214X1, DDX1 |
|---|---|
| CANU | 50:10 1 |
| NM / Size | NM: 180 / Size: 24 |
| Point Style | STANDARD (Normal round point) |
| Type of Coating | Chrome |

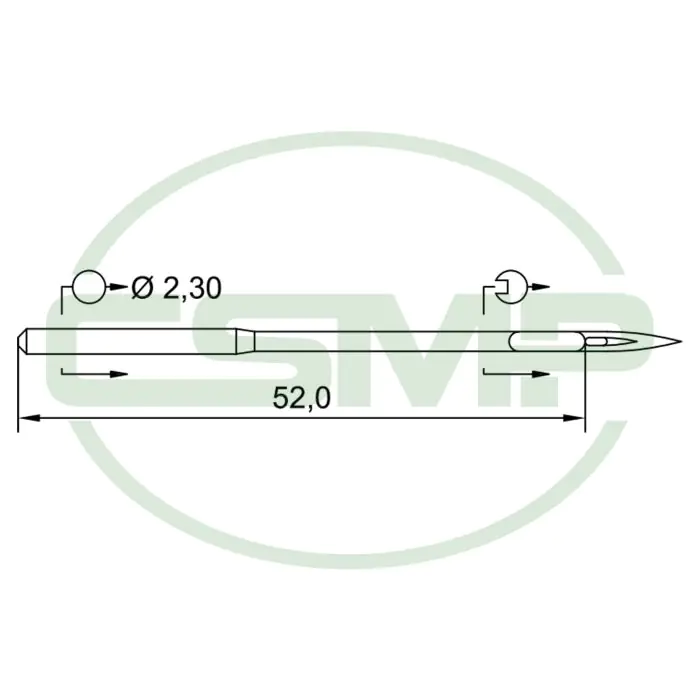

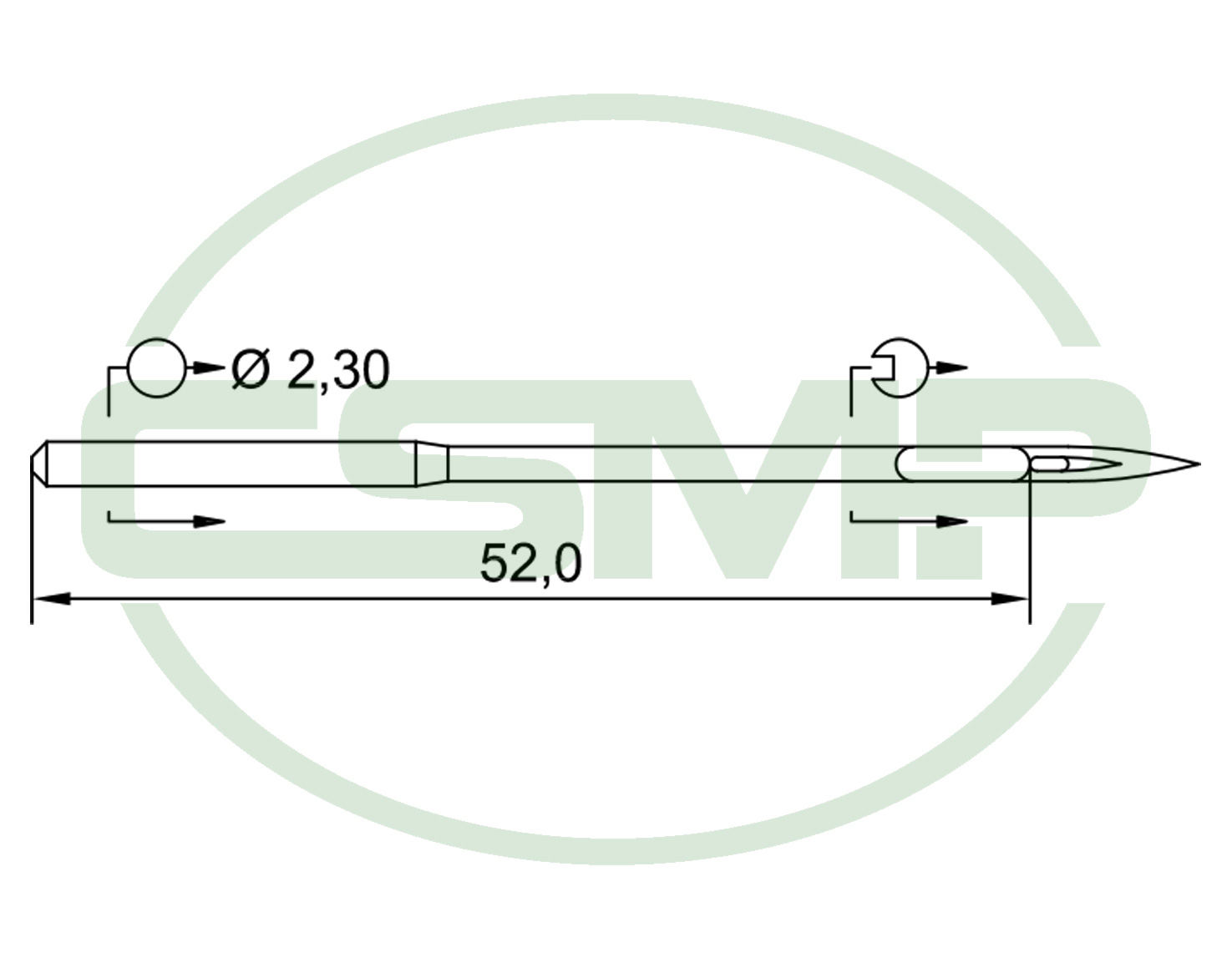

| Shank-ø | 2.3 mm |
| Overall Length | 60.8 mm |
| Length to Eye | 52 mm |
| Shank Flattening | Without shank flattening |
| Blade Shape | Straight |
| Number of Grooves | 1 |
| Stitch Type | Lockstitch |
More Information
| Part No | 214X1X180 |
|---|---|
| Weight (KG) | 0.015000 |
| Manufacturer | Schmetz |
| Needle Size | NM 180 / Size 24 |
| Mat. No. | 782304 |
