175X3 SIZE 90 PACK OF 10 NEEDLES SCHMETZ
Part No
175X3X90
Schmetz 44:15JB1 - 2018, 175X3, TQX3 - NM 90 / Size 14 - STU (Heavy rounded point for button sewing) Packet of 10 Needles.
£5.41
In Stock
Description / 175X3 SIZE 90 PACK OF 10 NEEDLES SCHMETZ
Schmetz 44:15JB1 - 2018, 175X3, TQX3 - NM 90 / Size 14 - STU (Heavy rounded point for button sewing) Packet of 10 Needles.
STU (Heavy rounded point for button sewing)
The normal round point is the standard point form and has a slim, conical shape. No point supplement "R" is mentioned in the system code.
Needle Specification
| Customary Needle Designations | 2018, 175X3, TQX3 |
|---|---|
| CANU | 44:15JB1 |
| NM / Size | NM: 90 / Size: 14 |
| Point Style | STU (Heavy rounded point for button sewing) |
| Type of Coating | Chrome |

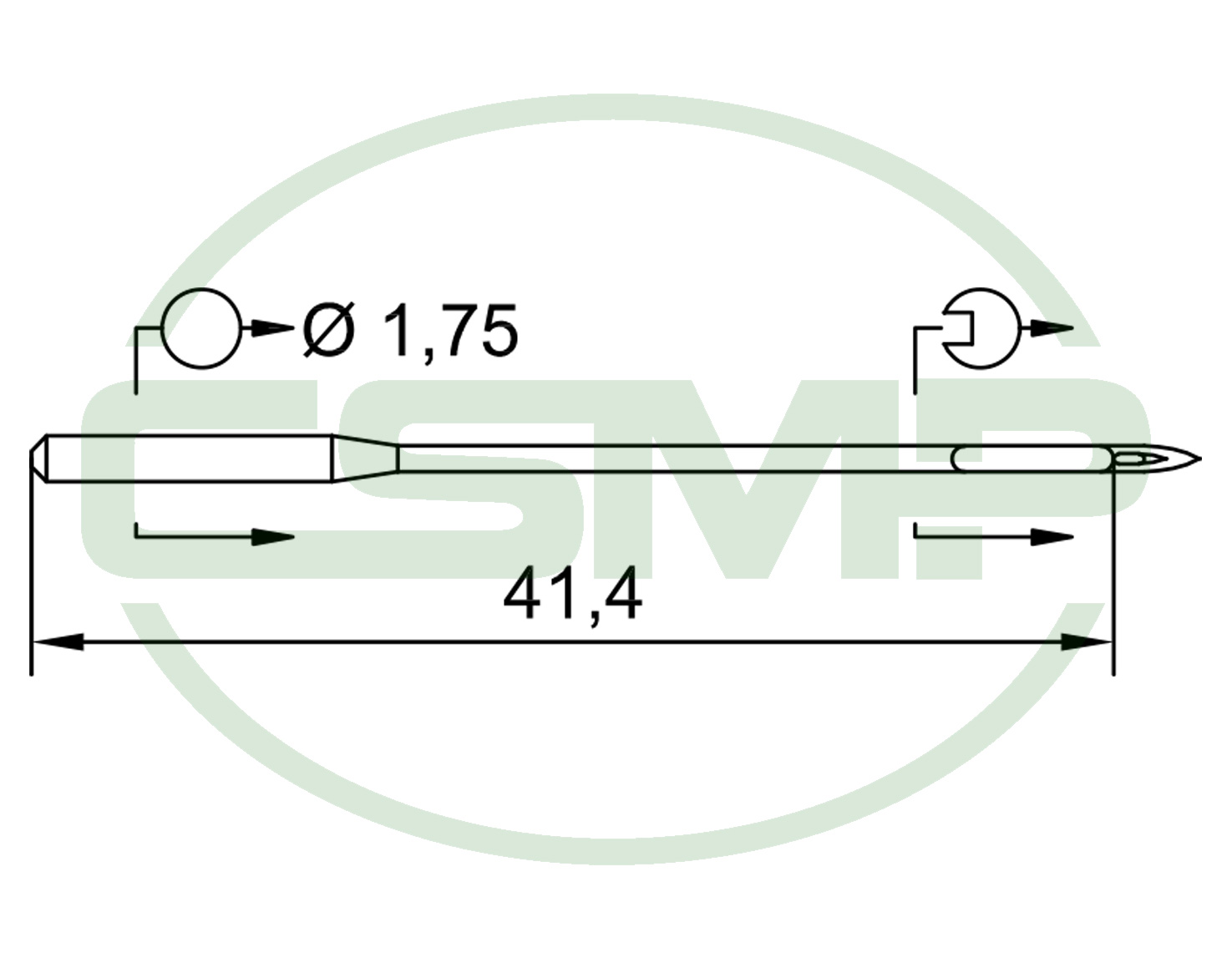

| Shank-ø | 1.75 mm |
| Overall Length | 44.7 mm |
| Length to Eye | 41.4 mm |
| Shank Flattening | Without shank flattening |
| Blade Shape | Straight |
| Number of Grooves | 1 |
| Stitch Type | Lockstitch |
More Information
| Part No | 175X3X90 |
|---|---|
| Weight (KG) | 0.015000 |
| Manufacturer | Schmetz |
| Needle Size | NM 90 / Size 14 |
| Mat. No. | 767314 |
