16X231 SIZE 110 PACK OF 10 NEEDLES SCHMETZ
Part No
16X231X110
Schmetz 14:25 1 - DBX1, 16X231, 287 WH, 1738 (A) - NM 110 / Size 18 - STANDARD (Normal round point) Packet of 10 Needles.
£1.90
In Stock
Description / 16X231 SIZE 110 PACK OF 10 NEEDLES SCHMETZ
Schmetz 14:25 1 - DBX1, 16X231, 287 WH, 1738 (A) - NM 110 / Size 18 - STANDARD (Normal round point) Packet of 10 Needles.
STANDARD (Normal round point)
The normal round point is the standard point form and has a slim, conical shape. No point supplement "R" is mentioned in the system code.
Needle Specification
| Customary Needle Designations | DBX1, 16X231, 287 WH, 1738 (A) |
|---|---|
| CANU | 14:25 1 |
| NM / Size | NM: 110 / Size: 18 |
| Point Style | STANDARD (Normal round point) |
| Type of Coating | Chrome |

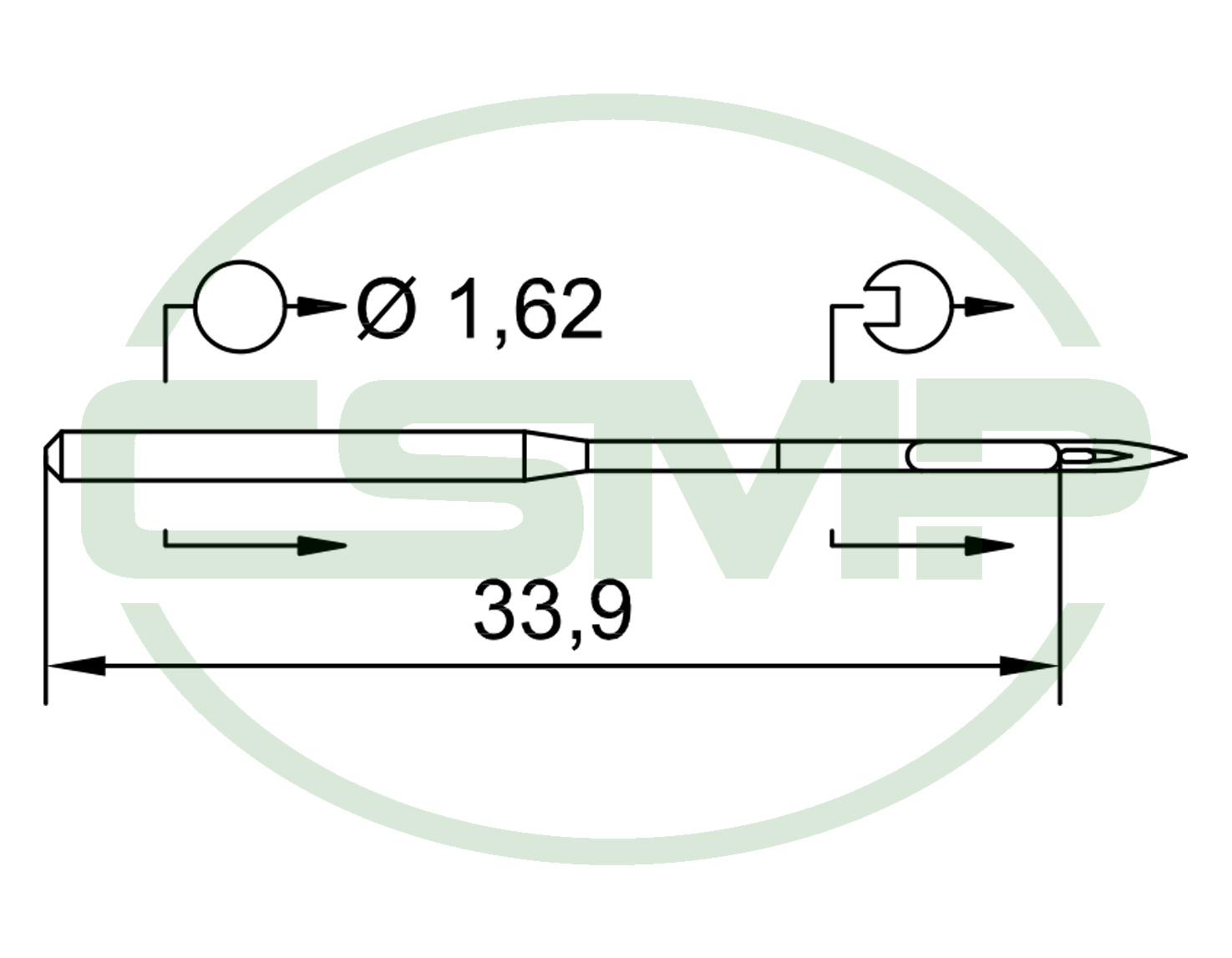

| Shank-ø | 1.62 mm |
| Overall Length | 37.3 mm |
| Length to Eye | 33.9 mm |
| Shank Flattening | Without shank flattening |
| Blade Shape | Straight |
| Number of Grooves | 1 |
| Stitch Type | Lockstitch |
More Information
| Part No | 16X231X110 |
|---|---|
| Weight (KG) | 0.007000 |
| Manufacturer | Schmetz |
| Needle Size | NM 110 / Size 18 |
| Mat. No. | 714974 |
