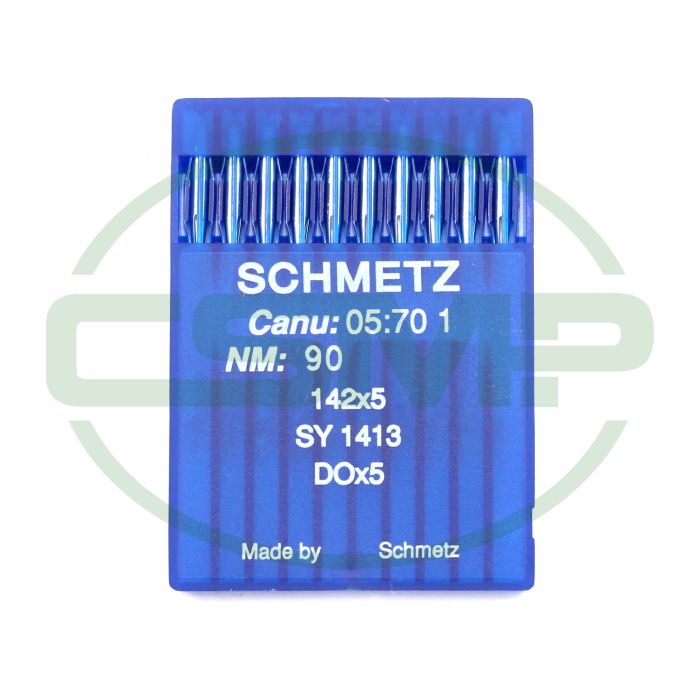

142X5 SIZE 90 PACK OF 10 NEEDLES SCHMETZ
Part No
142X5X90
Schmetz 05:70 1 - 142X5, SY 1413, DOX5 - NM 90 / Size 14 - STANDARD (Normal round point) Packet of 10 Needles.
£5.04
Only 5 Left In Stock!
Description / 142X5 SIZE 90 PACK OF 10 NEEDLES SCHMETZ
Schmetz 05:70 1 - 142X5, SY 1413, DOX5 - NM 90 / Size 14 - STANDARD (Normal round point) Packet of 10 Needles.
STANDARD (Normal round point)
The normal round point is the standard point form and has a slim, conical shape. No point supplement "R" is mentioned in the system code.
Needle Specification
| Customary Needle Designations | 142X5, SY 1413, DOX5 |
|---|---|
| CANU | 05:70 1 |
| NM / Size | NM: 90 / Size: 14 |
| Point Style | STANDARD (Normal round point) |
| Type of Coating | Chrome |
| Shank-ø | 2 mm |
| Overall Length | 35.7 mm |
| Length to Eye | 31.2 mm |
| Shank Flattening | Without shank flattening |
| Blade Shape | Straight |
| Number of grooves | 3 |
| Stitch Type | Chainstitch |
More Information
| Part No | 142X5X90 |
|---|---|
| Weight (KG) | 0.015000 |
| Manufacturer | Schmetz |
| Needle Size | NM 90 / Size 14 |
| Mat. No. | 706294 |
