135X17 SD1 SIZE 140 PACK OF 10 NEEDLES SCHMETZ
Part No
135X17SD1X140

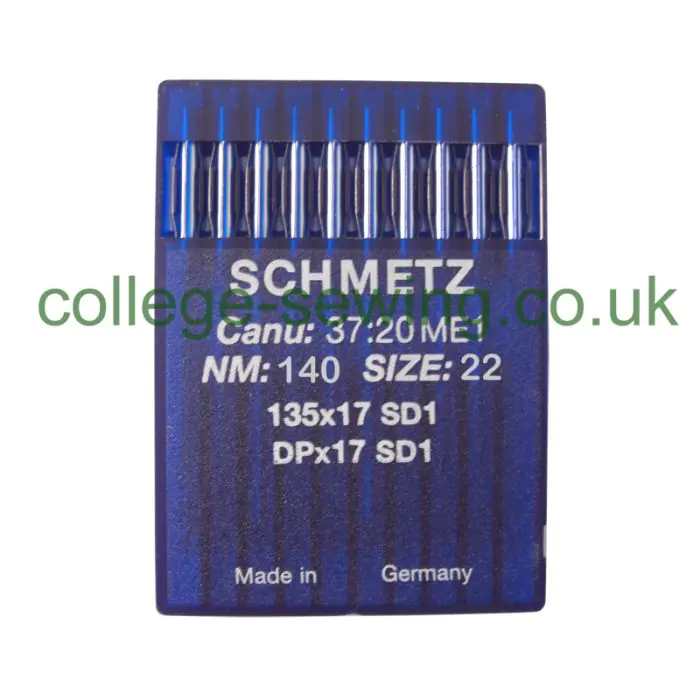

Schmetz 37:20ME1 - 135X17 SD1, DPX17 SD1 - NM 140 / Size 22 - SD1 (Round point with small triangular tip) Packet of 10 Needles.
£4.68
In Stock
Description / 135X17 SD1 SIZE 140 PACK OF 10 NEEDLES SCHMETZ
Schmetz 37:20ME1 - 135X17 SD1, DPX17 SD1 - NM 140 / Size 22 - SD1 (Round point with small triangular tip) Packet of 10 Needles.
DH (Half triangular point)
This round point with a very small triangular incision cuts approx. 10 % of the stitch hole, 90 % is displaced by the conical round point "R". The result is a straight seam and a tidy seam appearance. The incision is smaller than with a cutting point.
Needle Specification
| Customary Needle Designations | 135X17 SD1, DPX17 SD1 |
|---|---|
| CANU | 37:20ME1 |
| NM / Size | NM: 140 / Size: 22 |
| Point Style | SD1 (Round point with small triangular tip) |
| Type of Coating | Chrome |

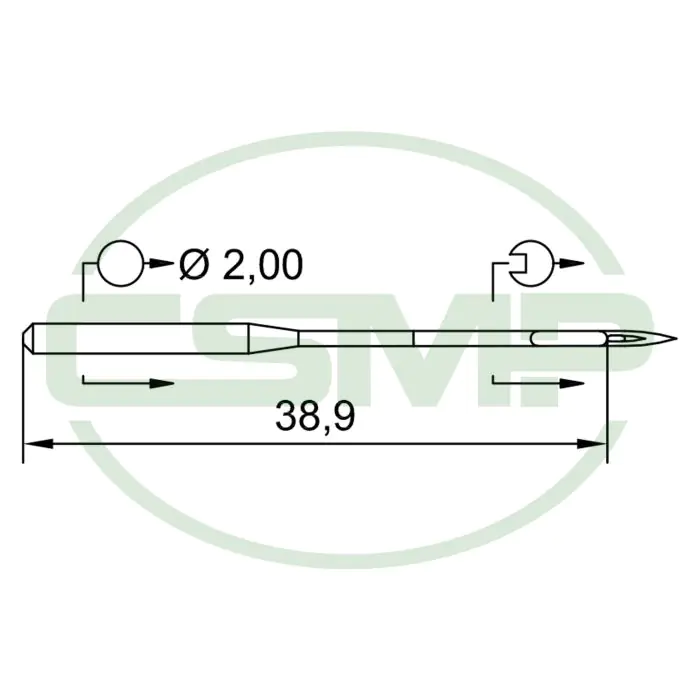

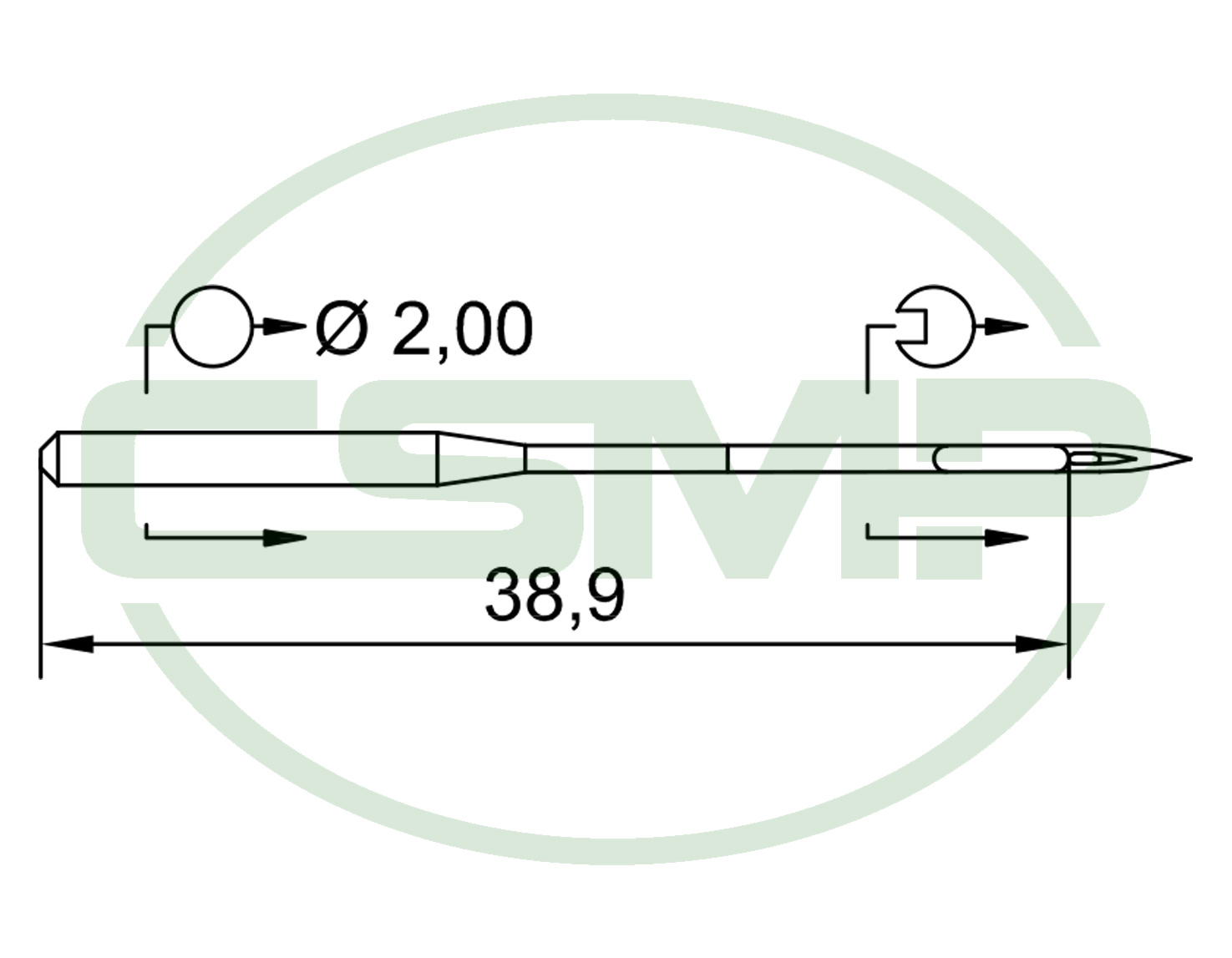

| Shank-ø | 2 mm |
| Overall Length | 43.9 mm |
| Length to Eye | 38.9 mm |
| Shank Flattening | Without shank flattening |
| Blade Shape | Straight |
| Number of Grooves | 1 |
| Stitch Type | Lockstitch |
More Information
| Part No | 135X17SD1X140 |
|---|---|
| Weight (KG) | 0.015000 |
| Manufacturer | Schmetz |
| Needle Size | NM 140 / Size 22 |
