135X17 SAN5 GEBEDUR SIZE 160 PACK OF 10 NEEDLES GROZ BECKERT
Have a Question? Let us advise you
If you've got a question about our products, call us on +44 (0)161 763 6969 to speak to our team or get in touch here.
Delivery Information
We offer free delivery on every online order over £200 (Net, UK Mainland only — restrictions may apply).
For international orders, the minimum order value we're able to process is £20.00 (Net).
International delivery methods include Economy and Express, with rates calculated at checkout. Please note: Economy delivery to EU27 countries is currently suspended.
Read more about our delivery options on our Freight Charges Explained page.
Description / 135X17 SAN5 GEBEDUR SIZE 160 PACK OF 10 NEEDLES GROZ BECKERT

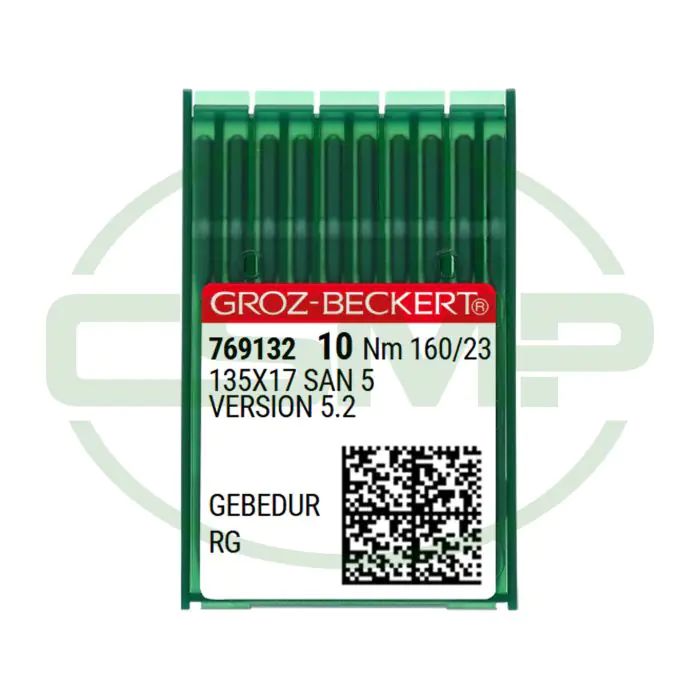

Groz Beckert - 135X17 SAN 5 GEBEDUR - NM 160 / Size 23 - RG (Normal round point with small ball) GEBEDUR™ Packet of 10 Needles.
R (Regular Round Point)
- Slightly rounded shape of the point
- Suitable for knitted and woven fabrics and microfiber
- Standard point for chainstitch as well as single and multihead embroidery
- Perfectly suited for button sewing
Groz Beckert GEBEDUR™ Coating
GEBEDUR™ needles developed and patented by Groz-Beckert are coated with titanium nitride, which gives them their characteristic golden appearance. This coating provides the needles with a higher degree of hardness than standard needles. Therefore, GEBEDUR™ needles offer a better protection against wear and damage, particularly in the point and eye area. This superior wear resistance results in a consistently high standard of seam quality and a longer service life for needles, which ultimately means improved productivity. This makes for a needle capable of coping with any situation, no matter how extreme the requirements.
SAN™ 5.2 for the processing of technical textiles
The SAN™ 5.2 special application needle is suitable for processing extremely hard materials or material combinations. The reinforced blade increases the stability of the needle and the enlarged eye enables the use of thick sewing threads. The double point groove improves the thread guidance in linear and, above all, multidirectional sewing processes. In addition, the scarf chamfers on both sides ensure an optimum loop pick-up by the hook or looper. The GEBEDUR™ coating increases the wear protection of the needle, especially in the point and eye area.
Needle Specification
| Customary Needle Designations | VERSION 5.2, 37:20 | |
|---|---|---|
| Further Point Designations | STU, STUB, S BALL, SET RT, EH, H SET, NEW RD, R STU, R | |
| NM / Size | NM: 160 / Size: 23 | |
| Type of Coating | GEBEDUR™ | |

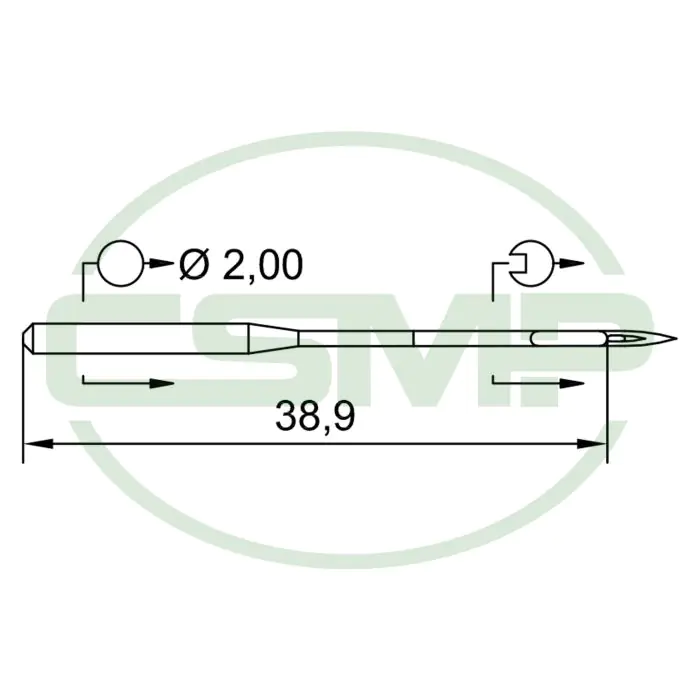

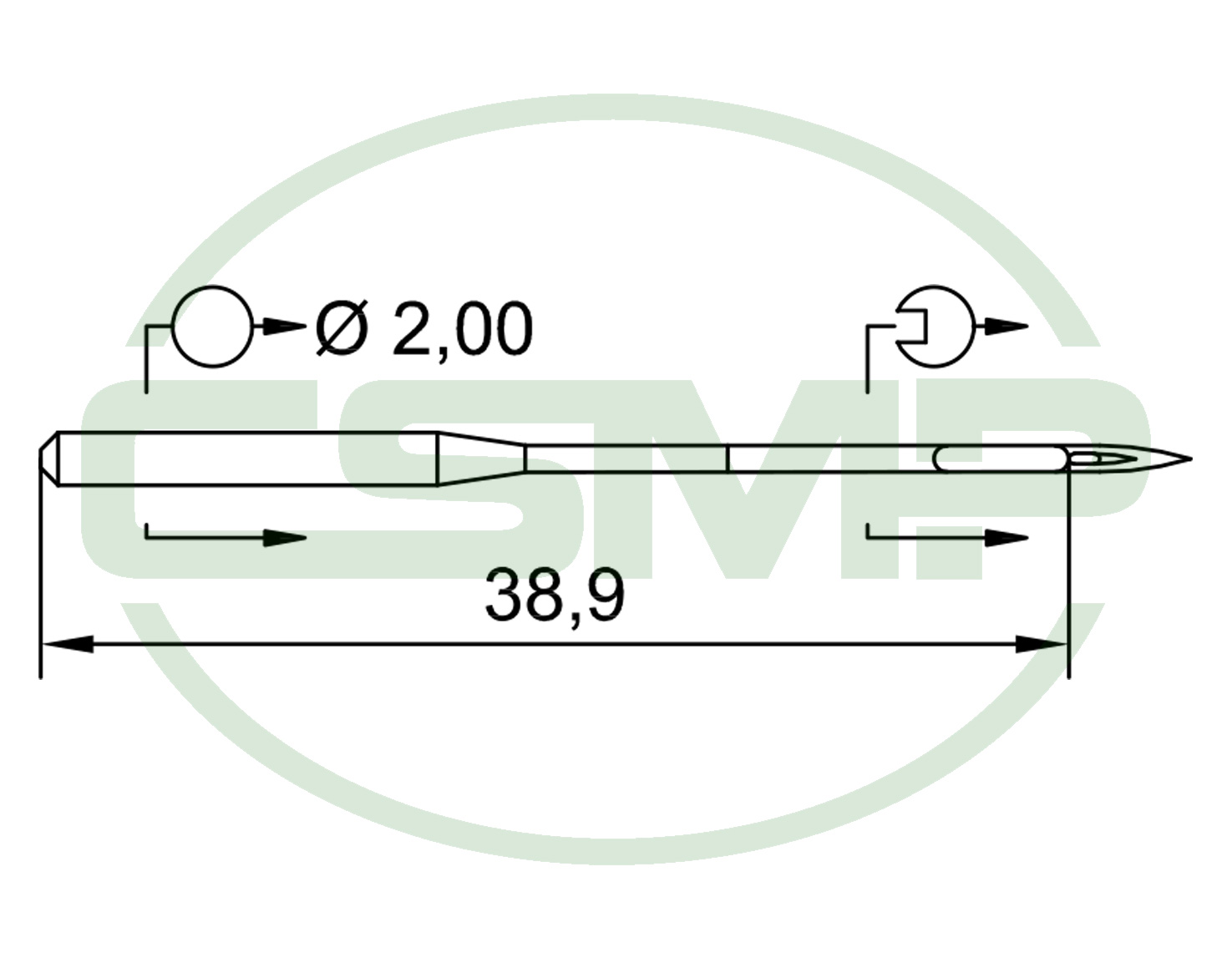

| Shank-ø | 2 mm | |
| Overall Length | 43.7 mm | |
| Length to Eye | 38.9 mm | |
| Needle Form Description | Straight needle with single groove and scarf | |
| Special application needle | SAN™ 5 for the processing of technical textiles | |
| Technical Sewing Application | Double lock stitch | |
| Stitch Type Class | 300 | |
| Special | Point groove left | |
| Recommended For | Technical textiles, Woven fabrics | |
| Examples of Use | Cushions, Airbags, Seat belts, Tents, Canvas covers, Foils, Plastic welts, Nets |
More Information
| Part No | 135X17SAN5GEBX160 |
|---|---|
| Weight (KG) | 0.015000 |
| Manufacturer | Groz Beckert |
| Needle Size | NM 160 / Size 23 |
| Mat. No. | 769132 |
