134 SAN6 GEBEDUR SIZE 140 GROZ BECKERT PACK OF 10 NEEDLES
Description / 134 SAN6 GEBEDUR SIZE 140 GROZ BECKERT PACK OF 10 NEEDLES

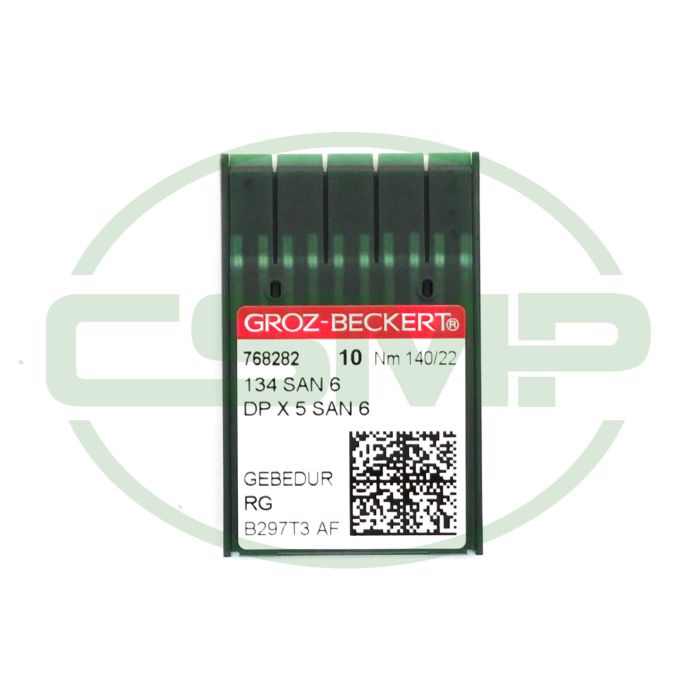

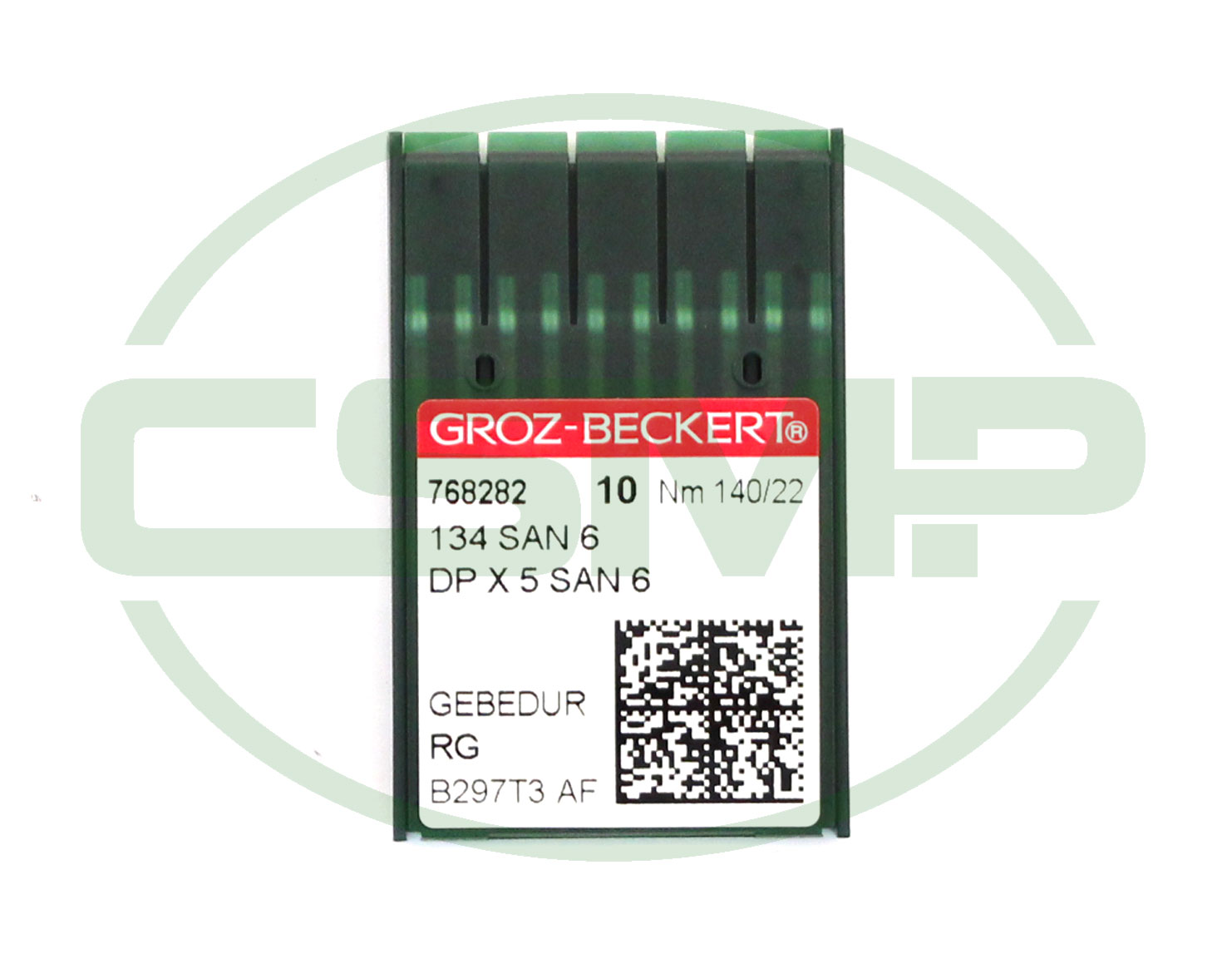

Groz Beckert - 134 SAN 6 GEBEDUR - NM 140 / Size 22 - R (Regular Round Point) GEBEDUR™ Packet of 10 Needles.
R (Regular Round Point)
- Slightly rounded shape of the point
 - Suitable for knitted and woven fabrics and microfiber
 - Standard point for chainstitch as well as single and multihead embroidery
 - Perfectly suited for button sewing

Groz Beckert GEBEDUR™ Coating
	GEBEDUR™ needles developed and patented by Groz-Beckert are coated with titanium nitride, which gives them their characteristic golden appearance. This coating provides the needles with a higher degree of hardness than standard needles. Therefore, GEBEDUR™ needles offer a better protection against wear and damage, particularly in the point and eye area. This superior wear resistance results in a consistently high standard of seam quality and a longer service life for needles, which ultimately means improved productivity. This makes for a needle capable of coping with any situation, no matter how extreme the requirements.
SAN™ 6 for the processing of medium-weight and heavy woven fabrics
	Due to its increased stability and the resulting higher deflection resistance, the SAN™ 6 special application needle is ideal for processing medium-weight and heavy woven fabrics, such as those used to make jeans or workwear. In addition, its special geometry ensures a secure loop pick-up and its larger eye allows the sewing thread to slide through unhindered, even when using thicker threads. The GEBEDUR™ coating increases the wear protection of the needle, especially in the point and eye area.
Needle Specification
| Customary Needle Designations | DPX5 SAN 6, 20:05 |
|---|---|
| Further point designations | STU, STUB, S BALL, SET RT, EH, H SET, NEW RD, R STU, R |
| NM / Size | NM: 140 / Size: 22 |
| Type of Coating | GEBEDUR™ |
| Special application needle | SAN™ 6 for the processing of middle-hard and hard woven fabrics (f. ex. Denim) |

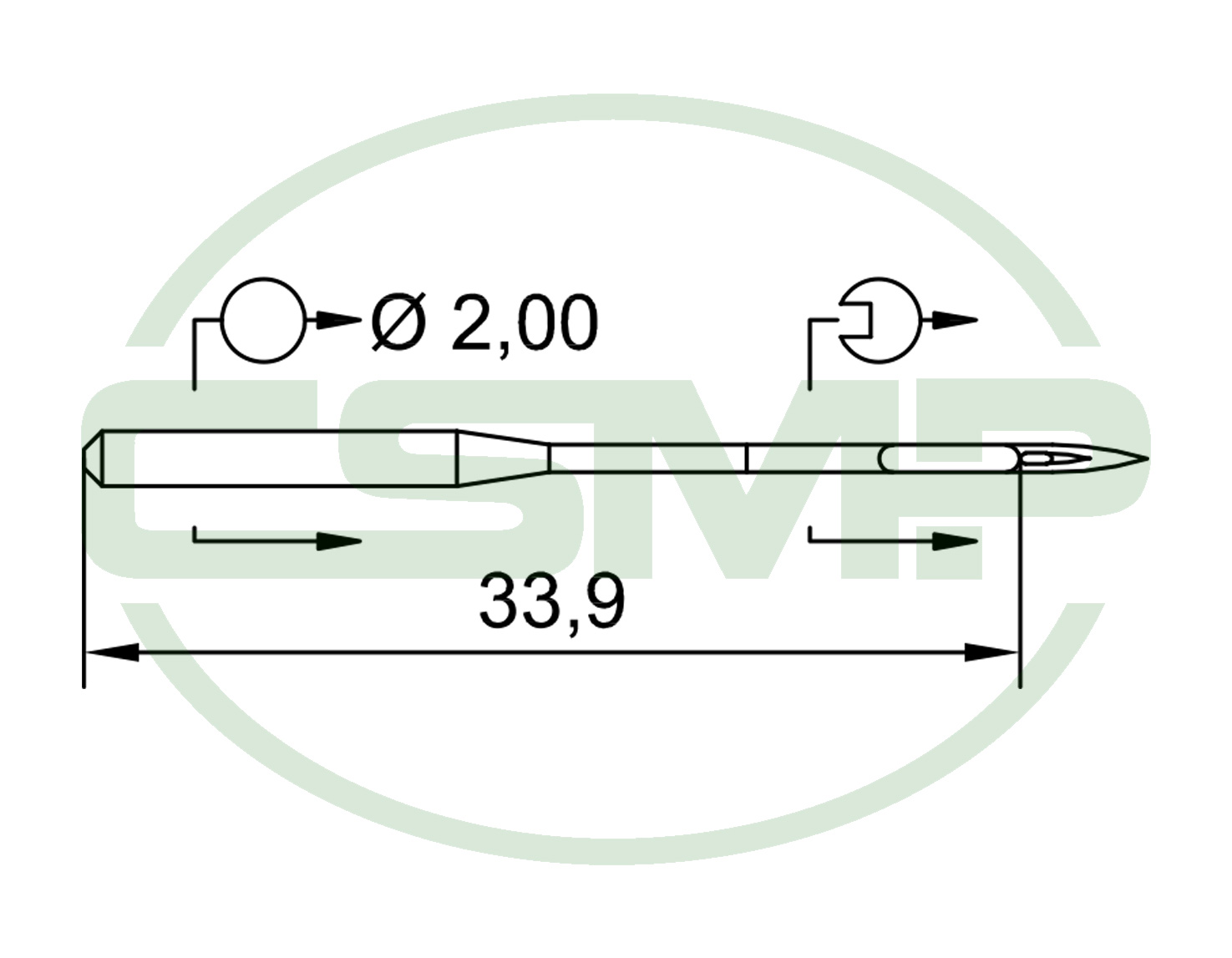

| Shank-ø | 2 mm |
| Overall Length | 38.9 mm |
| Length to Eye | 33.9 mm |
| Needle Form Description | Straight needle with single groove and scarf |
| Technical Sewing Application | Double lock stitch |
| Stitch Type Class | 300 |
| Recommended For | Medium-weight to heavy woven fabrics, Technical textiles |
| Examples of Use | Jeans, Workwear, Cushions, Airbags, Tents, Seat belts, Nets |
More Information
| Part No | 134SAN6GEBEDURX140 |
|---|---|
| Weight (KG) | 0.015000 |
| Manufacturer | Groz Beckert |
| Needle Size | NM 140 / Size 22 |
| Mat. No. | 768282 |
