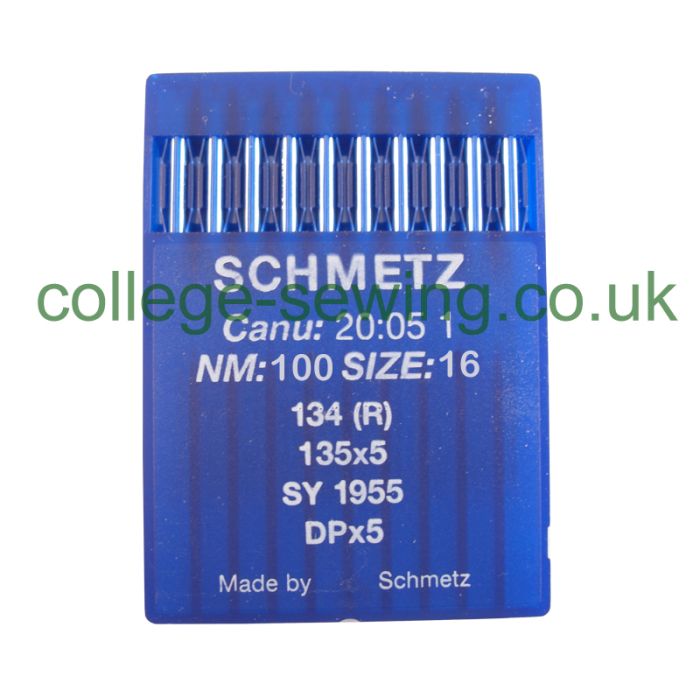

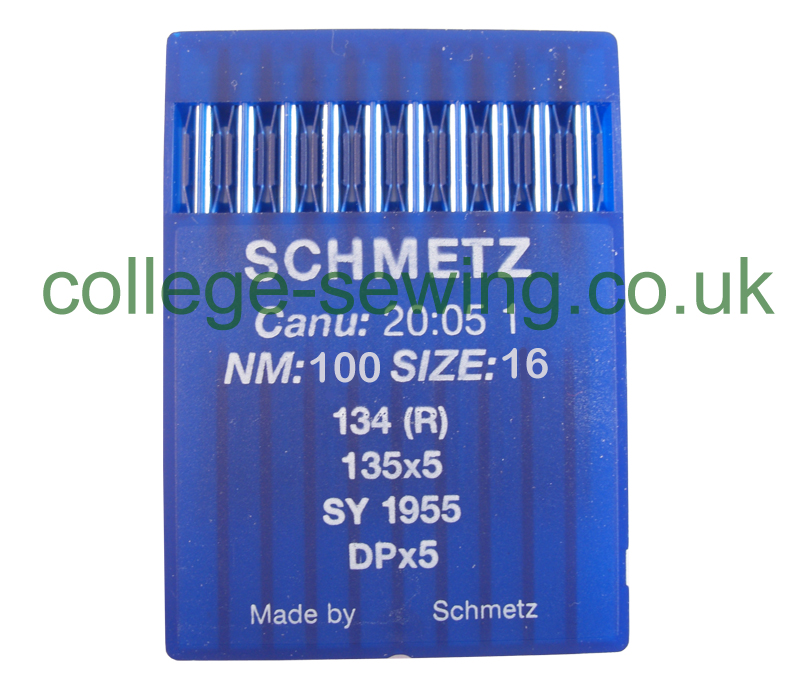

134R SIZE 100 PACK OF 10 NEEDLES SCHMETZ
Part No
134RX100
Schmetz 20:05 1 - 134 (R), 135X5, SY 1955, DPX5 - NM 100 / Size 16 - STANDARD (Normal round point) Packet of 10 Needles.
£1.90
In Stock
Description / 134R SIZE 100 PACK OF 10 NEEDLES SCHMETZ
Schmetz 20:05 1 - 134 (R), 135X5, SY 1955, DPX5 - NM 100 / Size 16 - STANDARD (Normal round point) Packet of 10 Needles.

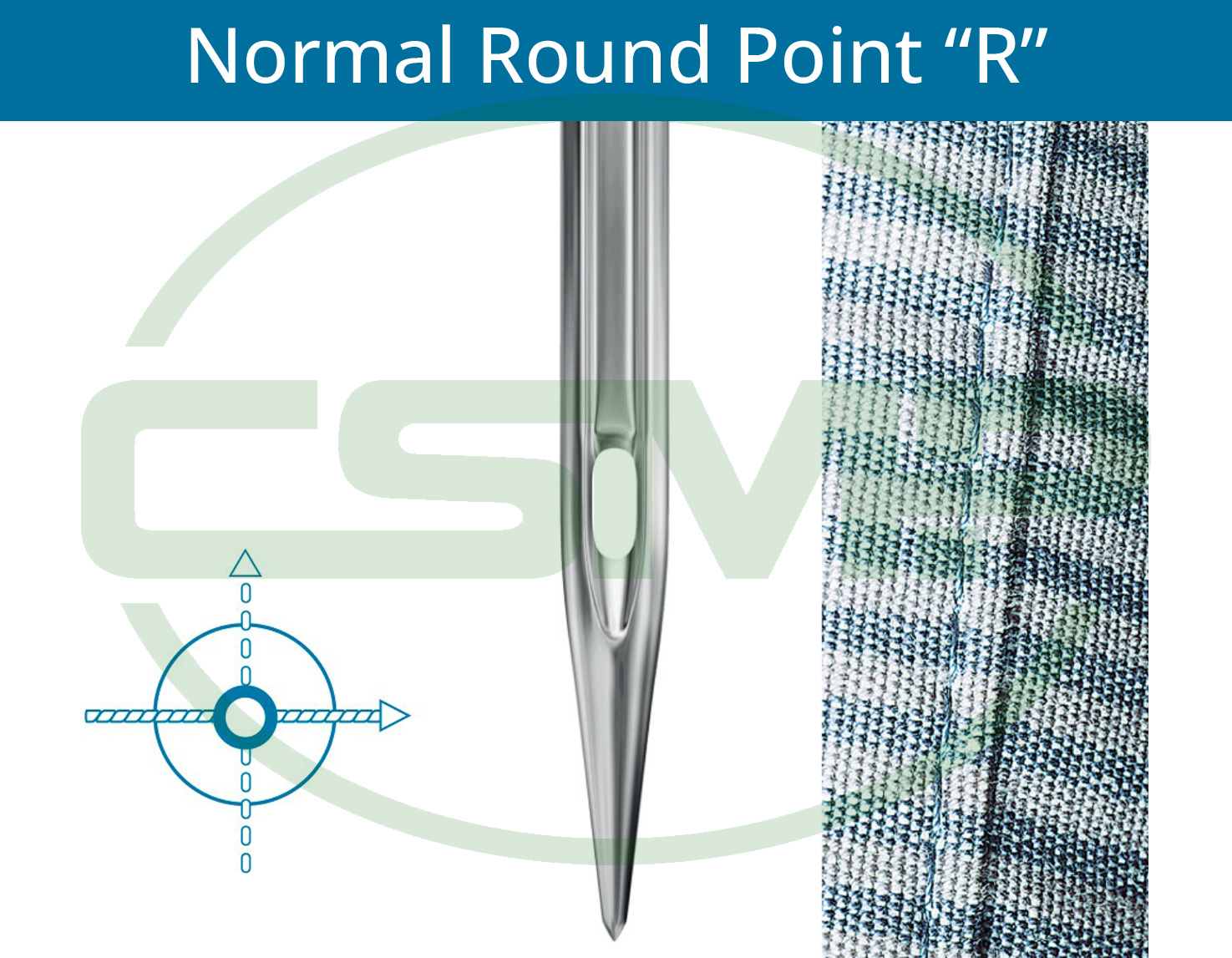

STANDARD (Normal round point)
The normal round point is the standard point form and has a slim, conical shape. No point supplement "R" is mentioned in the system code.
Needle Specification
| Customary Needle Designations | 134 (R), 135X5, SY 1955, DPX5 |
|---|---|
| CANU | 20:05 1 |
| NM / Size | NM: 100 / Size: 16 |
| Point Style | STANDARD (Normal round point) |
| Type of Coating | Chrome |

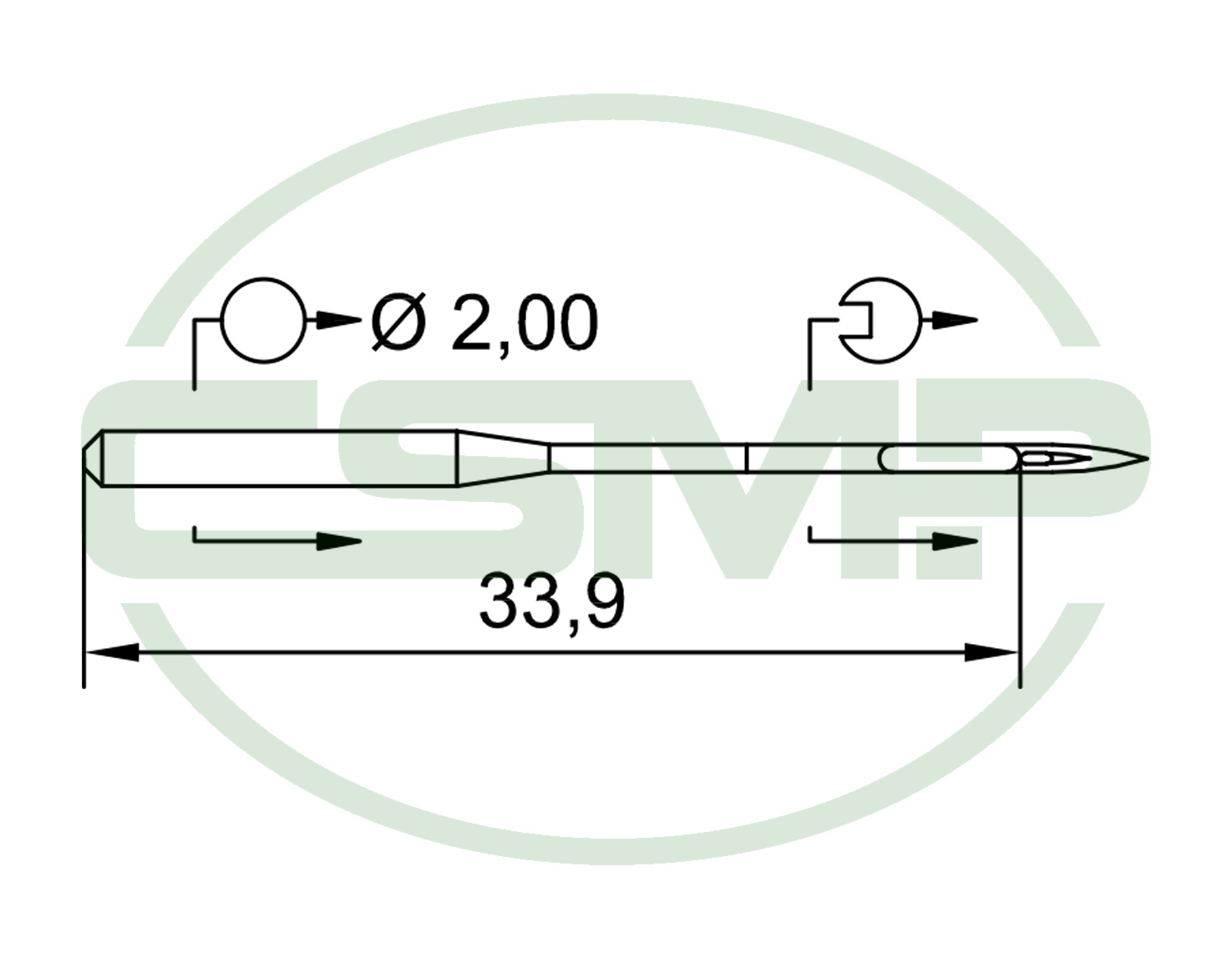

| Shank-ø | 2 mm |
| Overall Length | 37.7 mm |
| Length to Eye | 33.9 mm |
| Shank Flattening | Without shank flattening |
| Blade Shape | Straight |
| Number of Grooves | 1 |
| Stitch Type | Lockstitch |
More Information
| Part No | 134RX100 |
|---|---|
| Weight (KG) | 0.008000 |
| Manufacturer | Schmetz |
| Needle Size | NM 100 / Size 16 |
| Mat. No. | 726154 |
