Description / 134KKP SIZE 90 PACK OF 10 NEEDLES

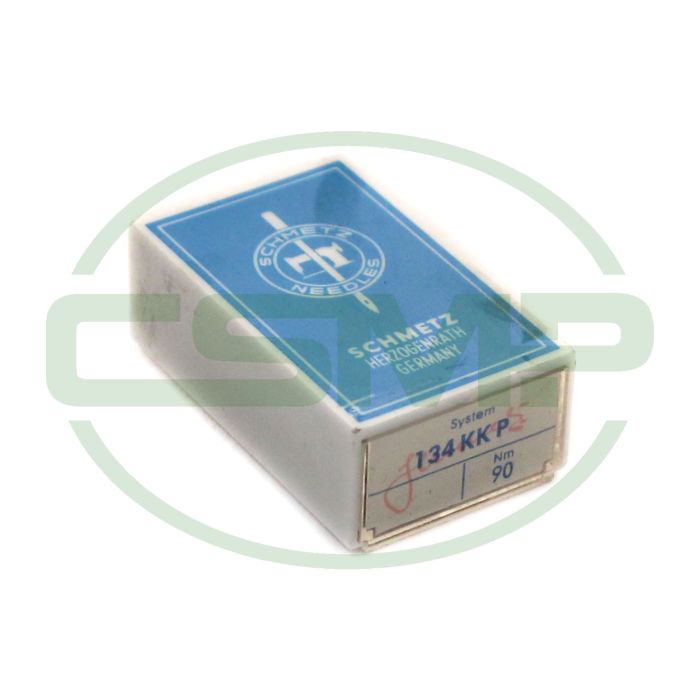

Schmetz 18:60DL1 - 134 KK P, PFX134 KK P - NM 90 / Size 14 - P (Narrow wedge point) Packet of 10 Needles.
P (Narrow wedge point)
By using this cutting point, you create a lenticular incision that is made at right angles to the seam direction. The result is a seam with high strength. Needles with the narrow wedge point "PCL" have a left twist groove below the eye for hooks positioned to the right of the needle. Accordingly, "PCR" has a right twist groove below the eye for hooks positioned to the left of the needle. It is particularly useful as the lefthand needle on the twin needle lockstitch machine.

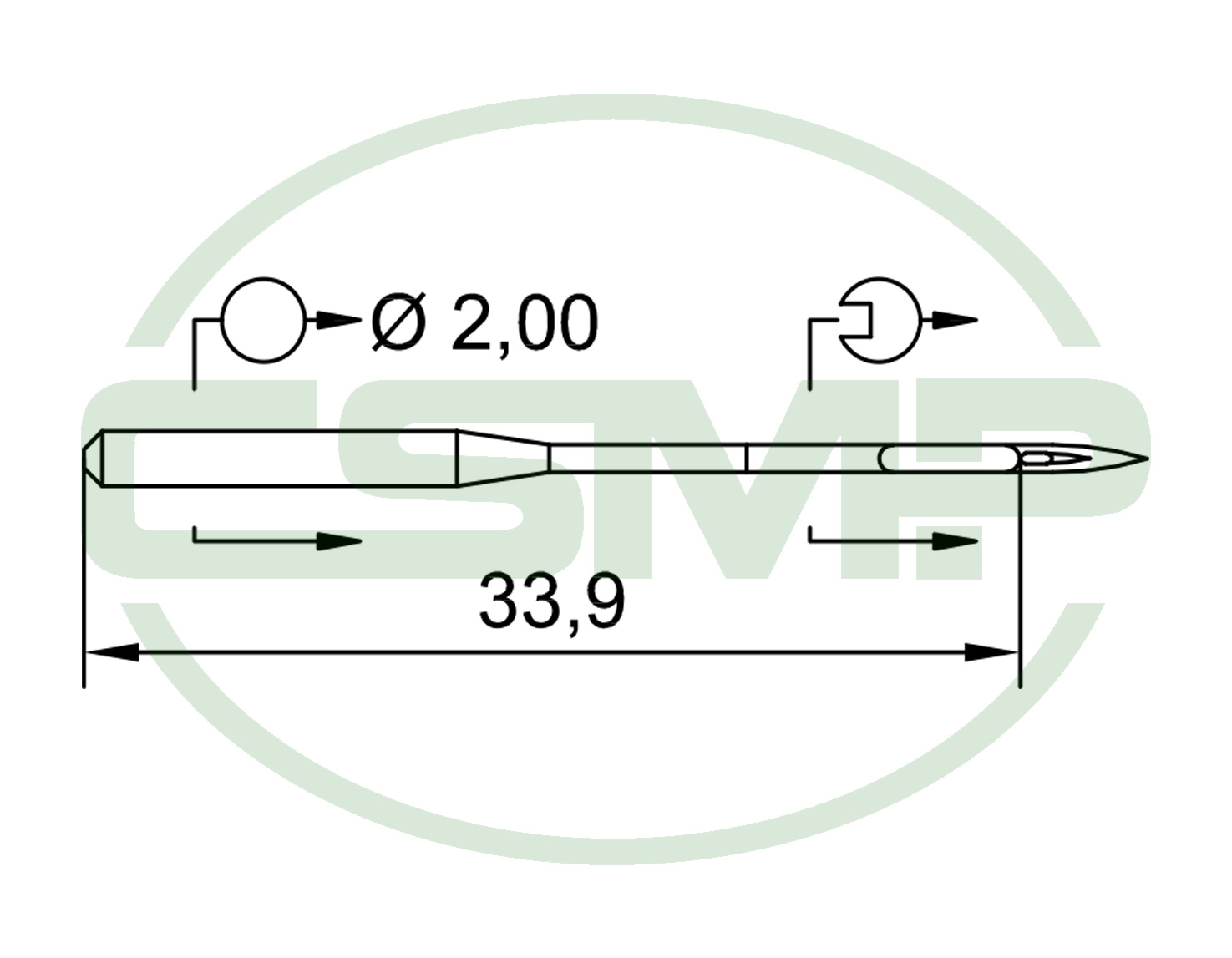

Needle Specification
| Customary Needle Designations | 134 KK P, PFX134 KK P |
|---|---|
| CANU | 18:60DL1 |
| NM / Size | NM: 90 / Size: 14 |
| Point Style | P (Narrow wedge point) |
| Type of Coating | Chrome |
| Shank-ø | 2 mm |
| Overall Length | 38.3 mm |
| Length to Eye | 33.9 mm |
| Shank Flattening | Without shank flattening |
| Blade Shape | Straight |
| Number of grooves | 1 |
| Stitch Type | Lockstitch |
More Information
| Part No | 134KKPX90 |
|---|---|
| Weight (KG) | 0.015000 |
| Manufacturer | Universal / Generic |
| Needle Size | NM 90 / Size 14 |
| Mat. No. | 729154 |
