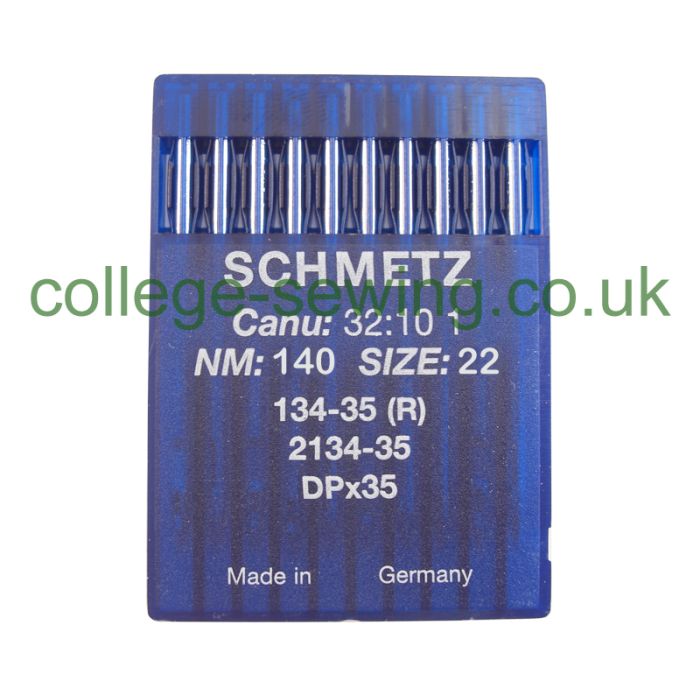

134-35R SIZE 140 PACK OF 10 NEEDLES SCHMETZ
Part No
13435RX140
Schmetz 32:10 1 - 134-35 (R), 2134-35, DPX35 - NM 140 / Size 22 - STANDARD (Normal round point) Packet of 10 Needles.
£4.00
In Stock
Description / 134-35R SIZE 140 PACK OF 10 NEEDLES SCHMETZ
Schmetz 32:10 1 - 134-35 (R), 2134-35, DPX35 - NM 140 / Size 22 - STANDARD (Normal round point) Packet of 10 Needles.
STANDARD (Normal round point)
The normal round point is the standard point form and has a slim, conical shape. No point supplement "R" is mentioned in the system code.

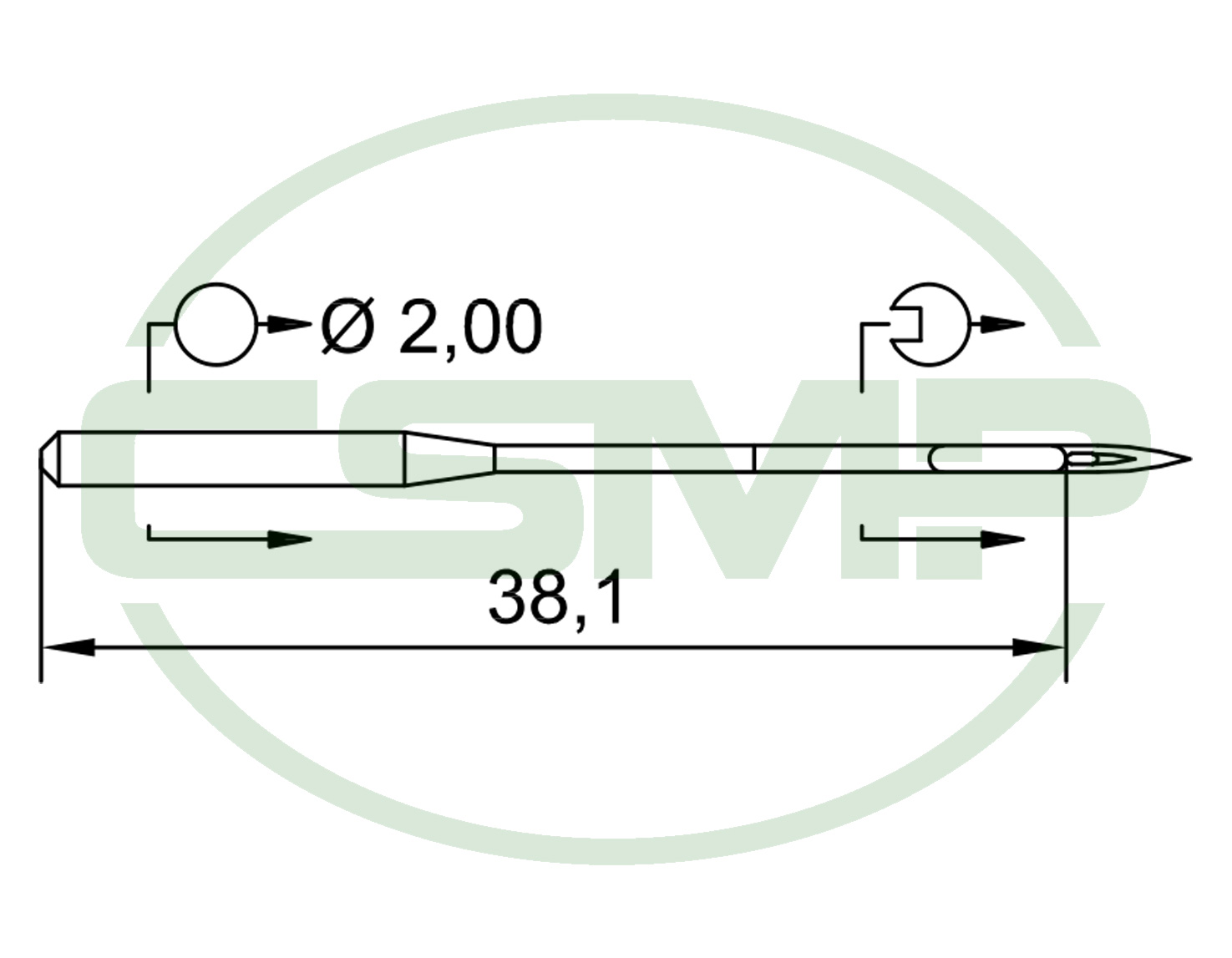

Needle Specification
| Customary Needle Designations | 134-35 (R), 2134-35, DPX35 |
|---|---|
| CANU | 32:10 1 |
| NM / Size | NM: 140 / Size: 22 |
| Point Style | STANDARD (Normal round point) |
| Type of Coating | Chrome |
| Shank-ø | 2 mm |
| Overall Length | 42.3 mm |
| Length to Eye | 38.1 mm |
| Shank Flattening | Without shank flattening |
| Blade Shape | Straight |
| Number of Grooves | 1 |
| Stitch Type | Lockstitch |
More Information
| Part No | 13435RX140 |
|---|---|
| Weight (KG) | 0.008000 |
| Manufacturer | Schmetz |
| Needle Size | NM 140 / Size 22 |
| Mat. No. | 745994 |
