134-35LR SIZE 170 PACK OF 10 NEEDLES SCHMETZ
Part No
13435LRX170
Schmetz 32:10AX1 - 134-35 LR, DPX35 LR - NM 170 / Size - LR (Leather / Reverse twist point) Packet of 10 Needles.
£4.25
Only 21 Left In Stock!
Description / 134-35LR SIZE 170 PACK OF 10 NEEDLES SCHMETZ
Schmetz 32:10AX1 - 134-35 LR, DPX35 LR - NM 170 / Size - LR (Leather / Reverse twist point) Packet of 10 Needles.
LR (Leather / Reverse twist point)
With this cutting point you achieve a lenticular incision. This is done at a 45° angle to the seam direction. The result is a decorative seam inclined slightly towards the left.

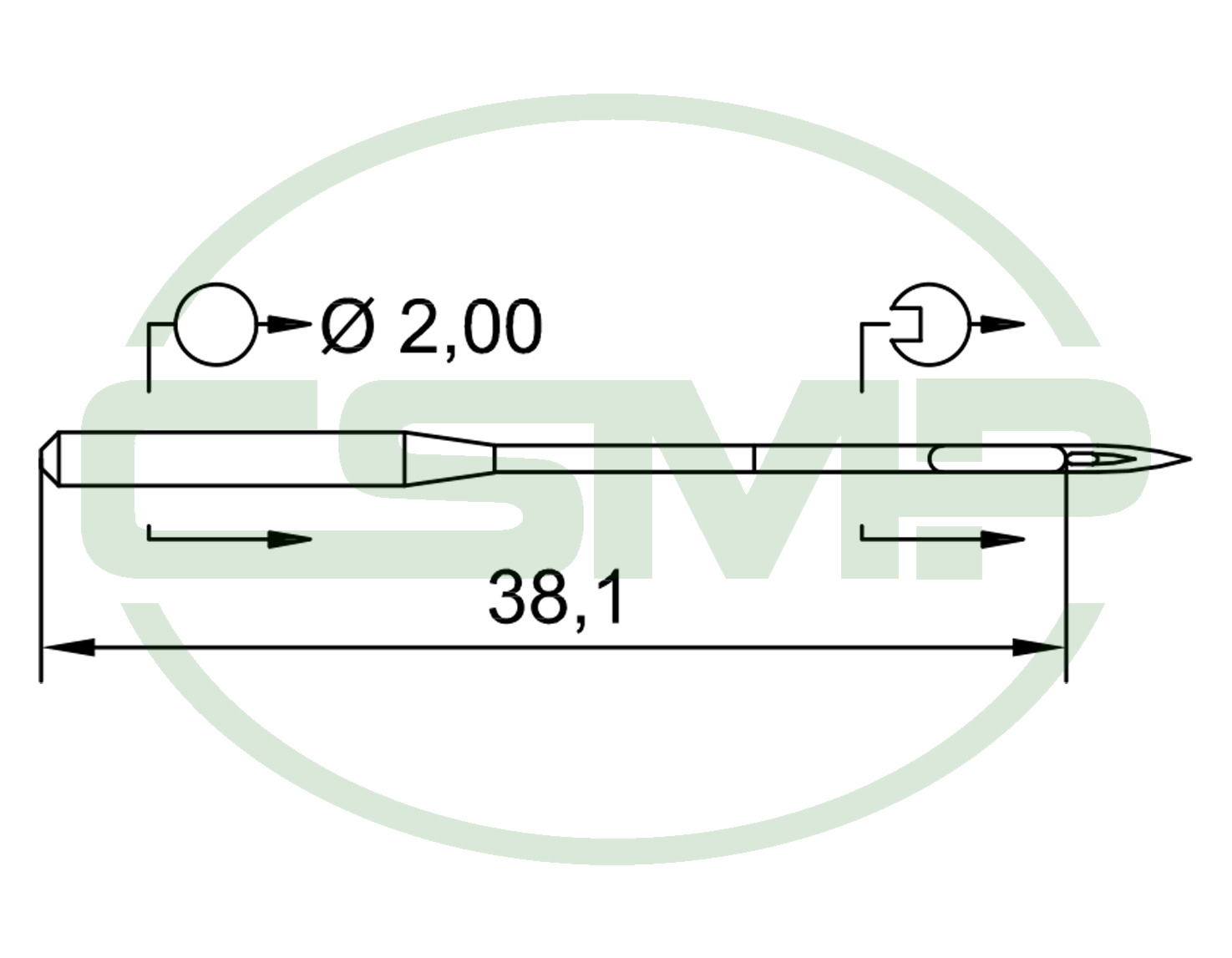

Needle Specification
| Customary Needle Designations | 134-35 LR, DPX35 LR |
|---|---|
| CANU | 32:10AX1 |
| NM / Size | NM: 170 / Size: |
| Point Style | LR (Leather / Reverse twist point) |
| Type of Coating | Chrome |
| Shank-ø | 2 mm |
| Overall Length | 42.7 mm |
| Length to Eye | 38.1 mm |
| Shank Flattening | Without shank flattening |
| Blade Shape | Straight |
| Number of Grooves | 1 |
| Stitch Type | Lockstitch |
More Information
| Part No | 13435LRX170 |
|---|---|
| Weight (KG) | 0.015000 |
| Manufacturer | Schmetz |
| Needle Size | NM 170 / Size 23.5 |
| Mat. No. | 747094 |
