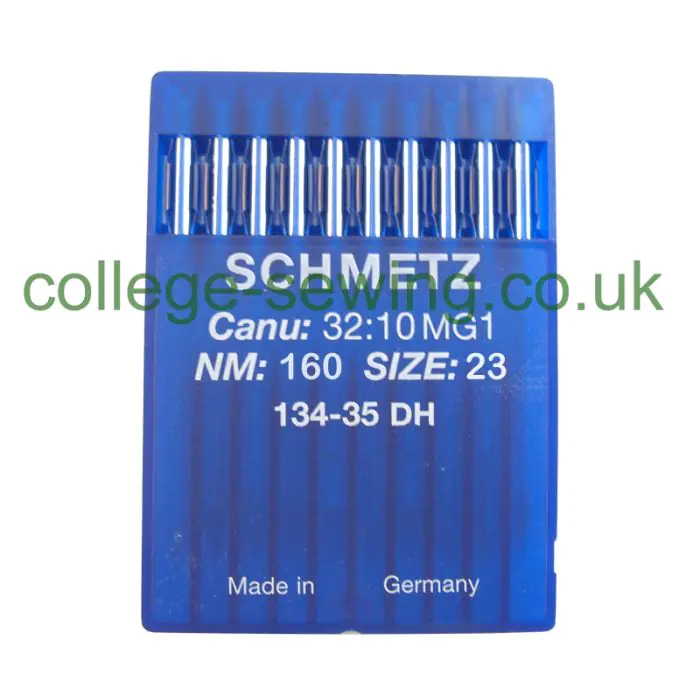

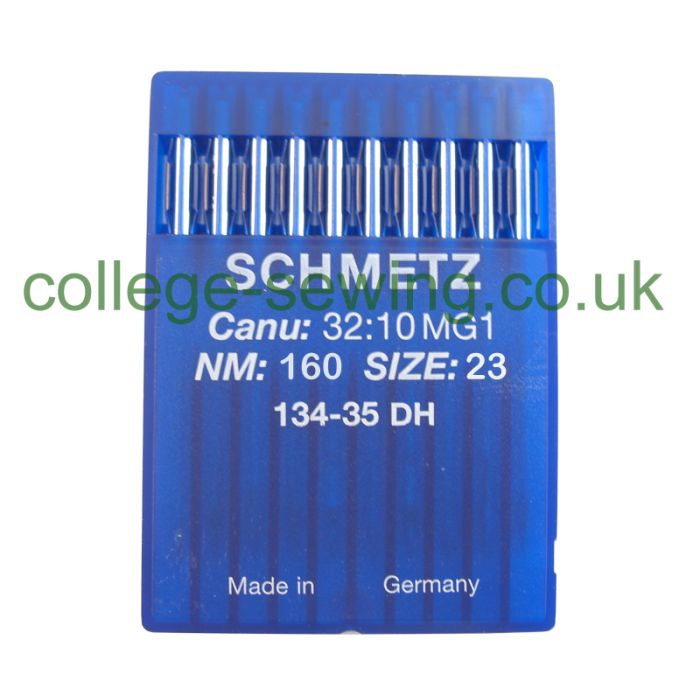

134-35 DH SIZE 160 PACK OF 10 NEEDLES SCHMETZ
Part No
13435DHX160
Schmetz 32:10MG1 - 134-35 DH - NM 160 / Size 23 - DH (Half triangular point) Packet of 10 Needles.
£5.04
In Stock
Description / 134-35 DH SIZE 160 PACK OF 10 NEEDLES SCHMETZ
Schmetz 32:10MG1 - 134-35 DH - NM 160 / Size 23 - DH (Half triangular point) Packet of 10 Needles.
DH (Half triangular point)
This cutting point achieves a triangular incision that is smaller than that of the "D" point. This creates a straight seam.

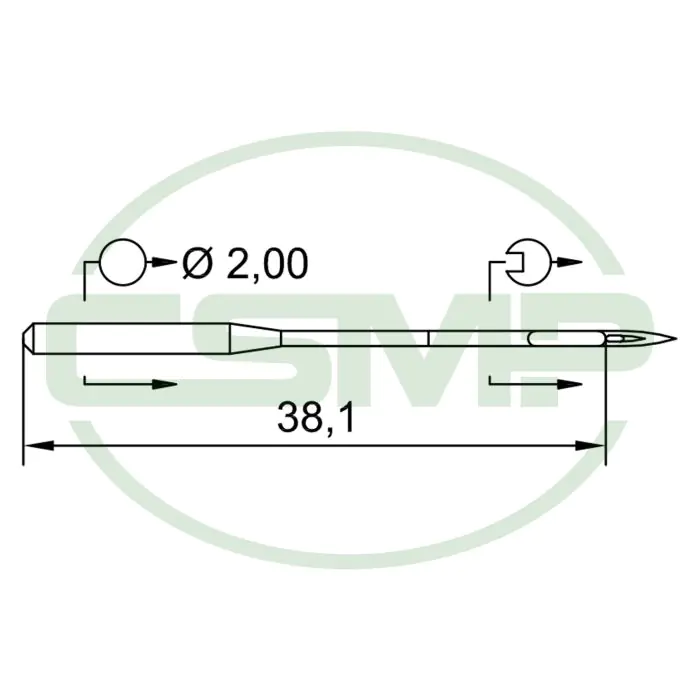

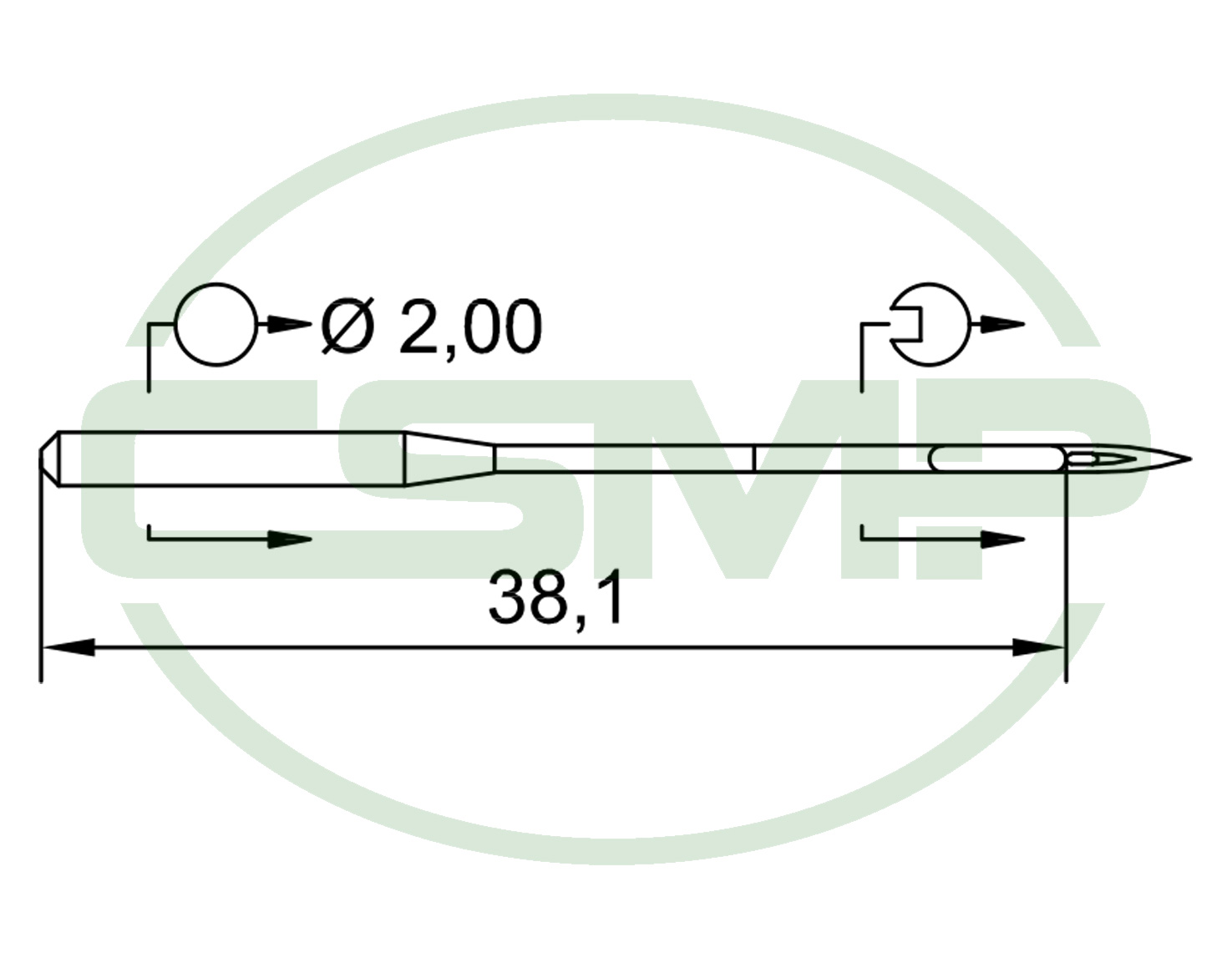

Needle Specification
| Customary Needle Designations | 134-35 DH |
|---|---|
| CANU | 32:10MG1 |
| NM / Size | NM: 160 / Size: 23 |
| Point Style | DH (Half triangular point) |
| Type of Coating | Chrome |
| Shank-ø | 2 mm |
| Overall Length | 42.7 mm |
| Length to Eye | 38.1 mm |
| Shank Flattening | Without shank flattening |
| Blade Shape | Straight |
| Number of Grooves | 1 |
| Stitch Type | Lockstitch |
More Information
| Part No | 13435DHX160 |
|---|---|
| Weight (KG) | 0.015000 |
| Manufacturer | Schmetz |
| Needle Size | NM 160 / Size 23 |
