134-35CR SIZE 160 PACK OF 10 NEEDLES SCHMETZ
Part No
13435CRX160

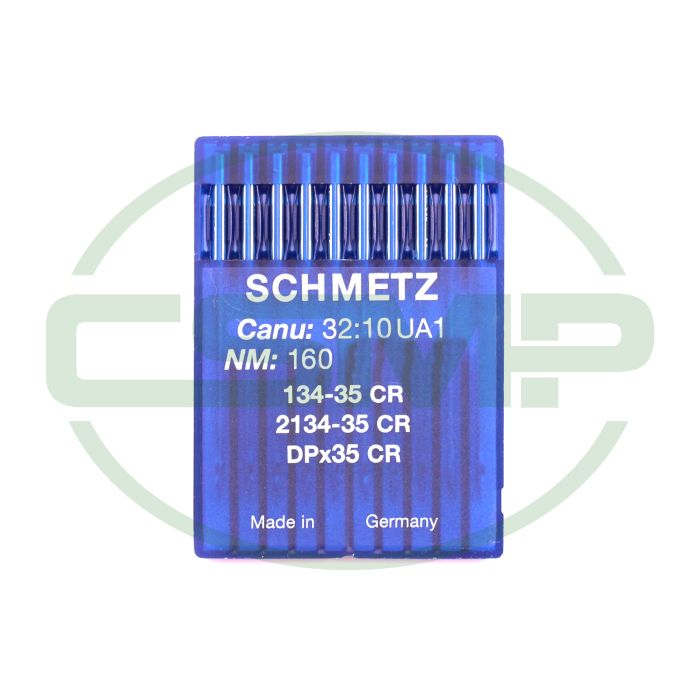

Schmetz 32:10UA1 - 134-35 CR, 2134-35 CR, DPX35 CR - NM 160 / Size 23 - STANDARD (Normal round point) Packet of 10 Needles.
£5.41
Only 13 Left In Stock!
Description / 134-35CR SIZE 160 PACK OF 10 NEEDLES SCHMETZ
Schmetz 32:10UA1 - 134-35 CR, 2134-35 CR, DPX35 CR - NM 160 / Size 23 - STANDARD (Normal round point) Packet of 10 Needles.
STANDARD (Normal round point)
The normal round point is the standard point form and has a slim, conical shape. No point supplement "R" is mentioned in the system code.
Needle Specification
| Customary Needle Designations | 134-35 CR, 2134-35 CR, DPX35 CR |
|---|---|
| CANU | 32:10UA1 |
| NM / Size | NM: 160 / Size: 23 |
| Point Style | STANDARD (Normal round point) |
| Type of Coating | Chrome |

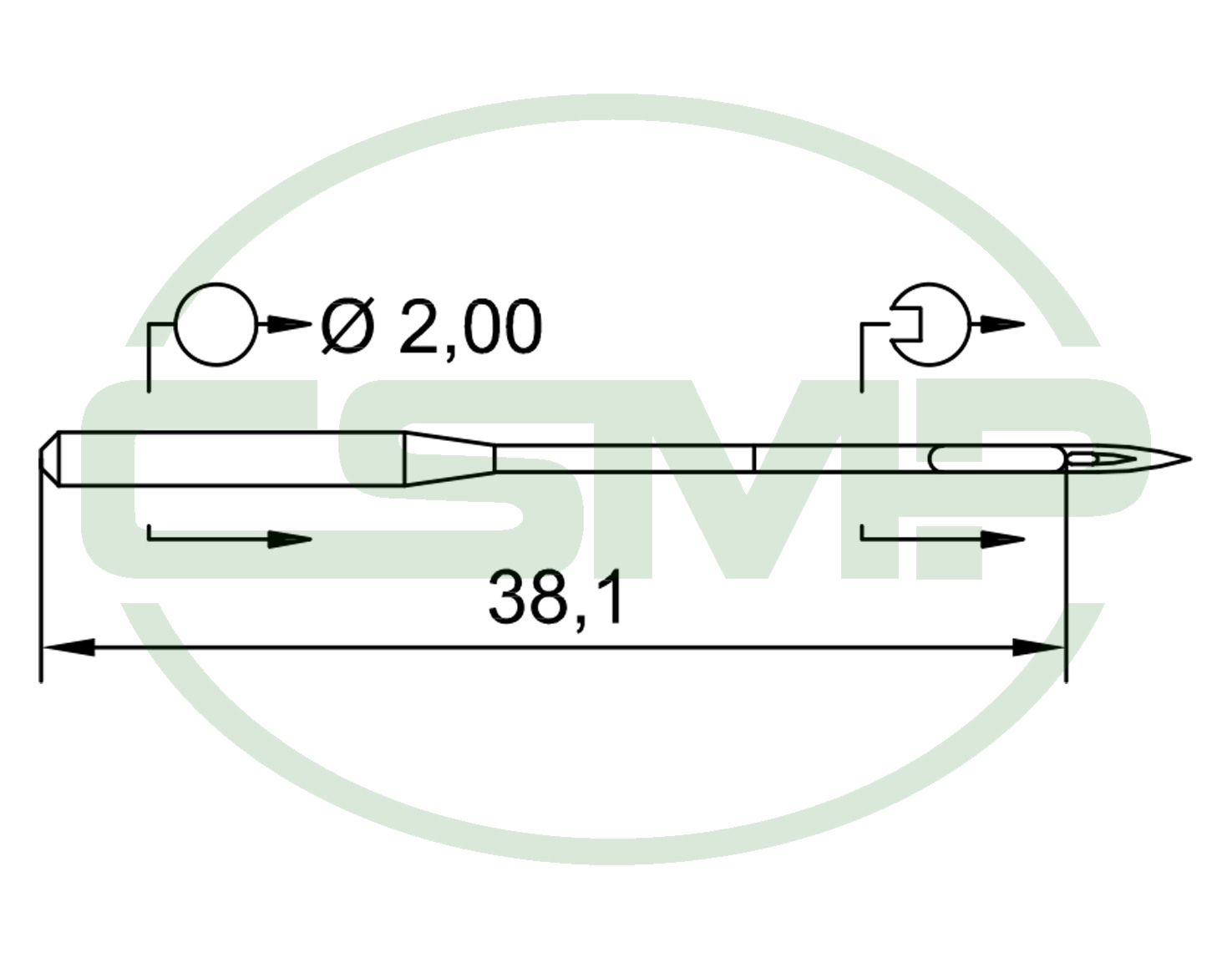

| Shank-ø | 2 mm |
| Overall Length | 42.7 mm |
| Length to Eye | 38.1 mm |
| Shank Flattening | Without shank flattening |
| Blade Shape | Straight |
| Number of Grooves | 1 |
| Stitch Type | Lockstitch |
More Information
| Part No | 13435CRX160 |
|---|---|
| Weight (KG) | 0.015000 |
| Manufacturer | Schmetz |
| Needle Size | NM 160 / Size 23 |
| Mat. No. | 750414 |
