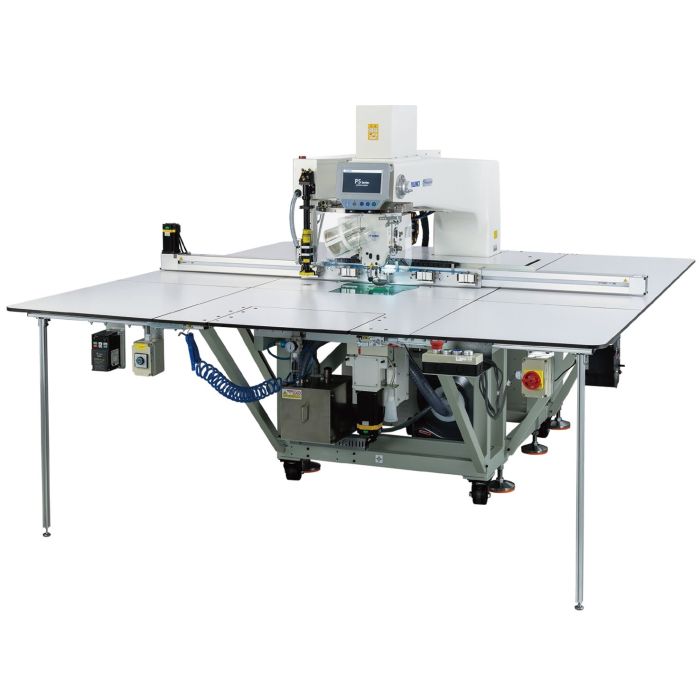

JUKI PS910SB13090ZKZ-GG 1300MM X 900MM 360 PATTERN SEAMER

Juki PS-910SB13090ZKZ-GG
- Rotating Head Pattern Seamer (1,300mm x 900mm).

Featuring advanced active needle‐thread tension control for precise adjustment based on material thickness and stitch direction. It uses a full-rotary double-capacity hook, enhancing sewing stability and minimizing thread change-over. The machine head’s synchronous rotation—aligned with the hook and feed system—ensures consistent, high-quality seams in any sewing direction. It boasts a massive 1,300 mm × 900 mm sewing area, a programmable intermediate presser that adapts automatically, and supports RFID-enabled pattern selection with storage for up to 999 stitch patterns.

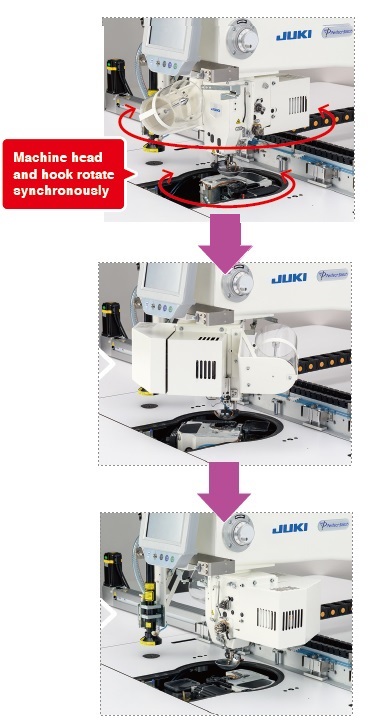

Machine head rotation mechanism helps achieve high-quality seams uniformly in every sewing direction

JUKI’s unique synchronization technology controls the machine head, hook and feed mechanism, thereby creating the most favorable seams. In case of continuous circumference sewing, the sewing machine constantly detects the direction of sewing.
As a result, consistent-quality seams are produced regardless of the direction of sewing.

Adopts a full-rotary double-capacity hook

The same full-rotary double-capacity hook as the PS-800 series is used. It provides stable sewing and reduces the time required for changing the lower thread.

Active tension

Market-prov active tension has been introduced to the needle thread tension controller. With the active tension, pinpoint changes in the needle thread tension during sewing are enabled. The needle thread tension, therefore, can be set in conjunction with the material thickness and can be corrected according to the direction of sewing on a stitch-by-stitch basis through the operation panel.

Patterns are identified by means of RFID reader to enable automatic reading of sewing data

Sewing patterns are automatically identified by means of RFID reader to automatically call up the relevant sewing program, thereby starting sewing quickly.
RFID (radio frequency identification): It is the technology to read and write data saved on IC chips through wireless non-contact transfer of radio frequency waves and is used to identify and manage products.

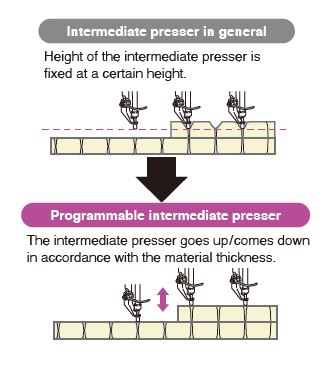

Intelligent Medium-Presser Foots

It is possible to change the intermediate presser height at its lower dead point steplessly during sewing. This feature is particularly effective when sewing multi-layered portions of material. Since the material is stably held by the intermediate presser, sewing troubles such as stitch skipping and thread breakage are prevented.

Operation panel

The sewing pattern data format are supports DXF, AI, PLT, and DST. Sewing pattern data in these formats are widely used in many sewing plants. As a result, the operation panel is able to use the customers’ existing sewing pattern data immediately. As many as 999 sewing patterns can be saved on the large-capacity memory of the operation panel. (Editing software is included with the accessory.)

Technical Specification
