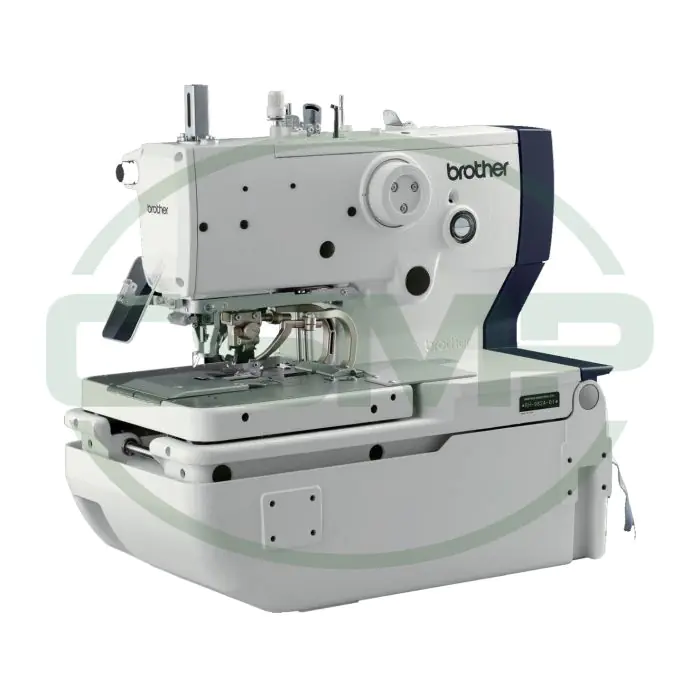

BROTHER RH-982A-01-1D EYELET BUTTON HOLE MACHINE
Description / BROTHER RH-982A-01-1D EYELET BUTTON HOLE MACHINE
Brother RH-982A-01 Nexio
- Electronic Eyelet Button Holer.
With wide sewing range and durable design, the proven and reliable Brother eyelet button holer has become easier to use. Easily adjusting. This new design further improves the long standing reliability and excellent performance of the Brother eyelet button holer.
Reduce Adjustment Time
Since the sewing range is wide and there are only a few complicated adjustments peculiar to our eyelet sewing machines, it contributes to the reduction of adjustment time. Achieves beautiful seams with simple adjustments. The durable electrical control design provides long lasting operation that greatly contributes to productivity performance.

Beautiful and High-Quality Sewing
The highly reliable sewing looper shape and needle guard shape reduces stitch skipping and thread tightening defects cuased by changes in thread tension. With simple adjustments, you can achieve beautiful and substainable sewing. It can be used for high-end markets which requires elegant appearances such as suits.

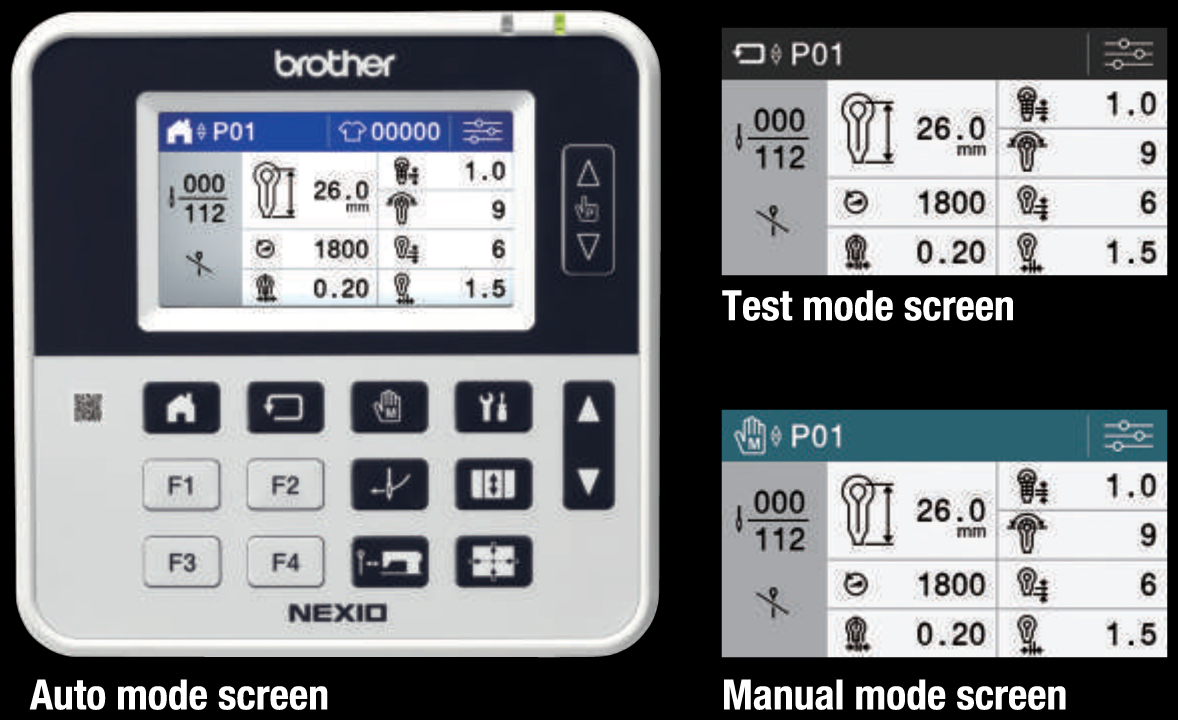

User-Intuitive Colour LCD with Touch Panel
Equipped colour LCD with touch panel that indicates display items with illustration icons, offering user-intuitive operation. It is very easy to set the cycle program, along with sewing patterns, sewing speed, and stitch length.
Easy to read mode switching screen.
Since the upper part of each mode screen is displayed in a different colour, it is easy to see shen checking modes or switching modes.

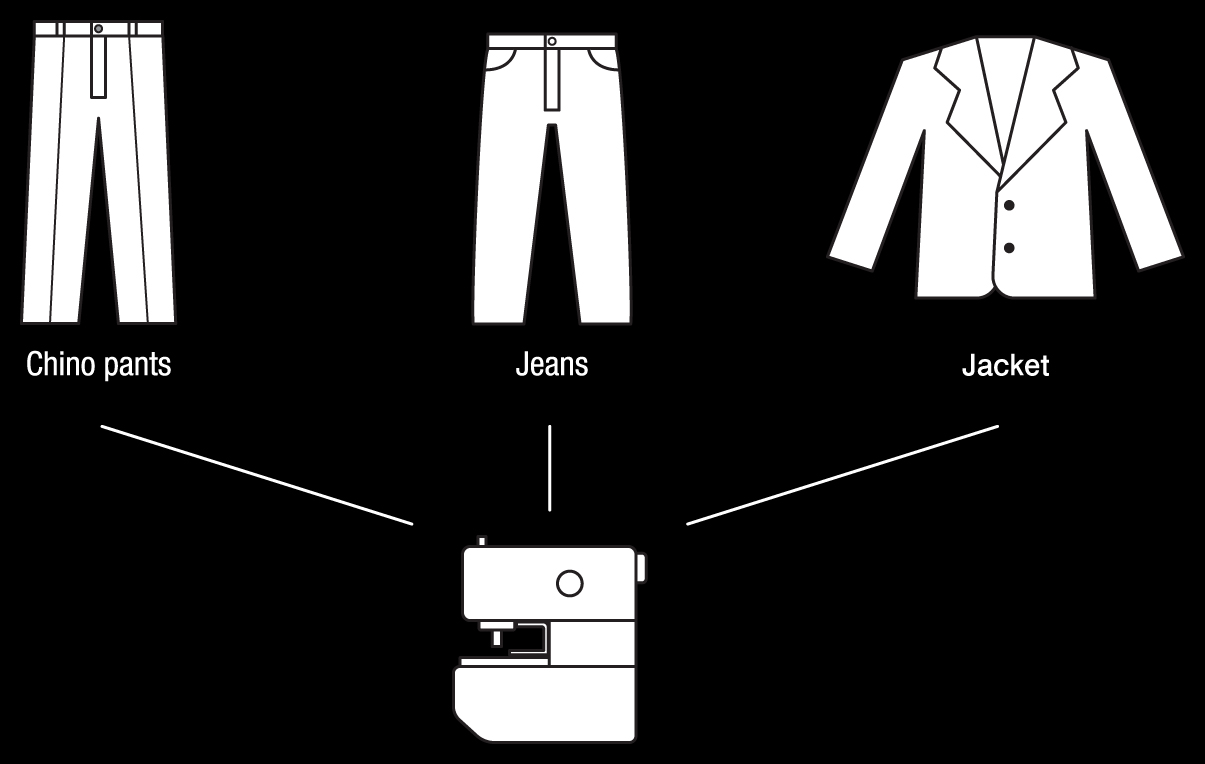

Sewing Capability for a Wide Range of Materials
From thick fabrics for jeans to chino pants, suits, work clothes, and other thin fabrics, the Brother eyelet button holer can handle a wide range of sewing materials. Equipped with an air cylinder type powerful and accurate hammer, it boasts outstanding stability even when cutting differnt materials. Overturning conventional wisdom, it is possible to consider using differnt materials with one model.

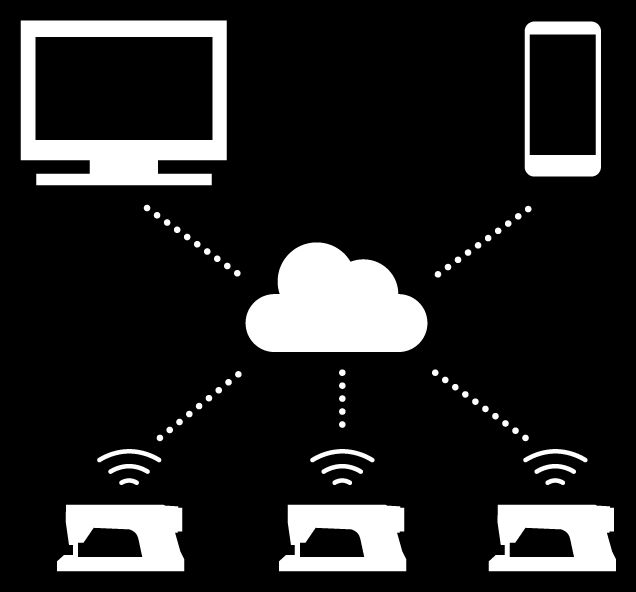

Productivity Improvements with IoT Capabilities
This model is IoT applicable. The visualisation by connecting sewing machine and computer technology together enables the customer to analyse, manage processes, increase productivity improvement, and perform maintenance.

The World's Top-Class Sewing Spped 2,500sti/min Enhances Productivity
As with the previous model, the optimum structure for high-speed drive is adopted, achieveing a maximum sewing speed of 2,5000sti/min. In addition, the patented rigidity around the needle and the servo contro of the feed machanism and needle bar rotation mechanism provide for improved cycle time.

Less Sewing Noise to Withstand Long-Term Use
The machine is made with a sound design gentle to the ear, eliminating impact noise. The vibration of the feed base which is commonly sensed by the operator is also reduced. This new design creates a work environment with less operator fatigue without affecting the durability of the machine.

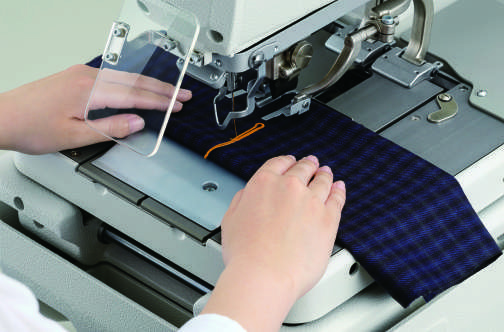

Large work space providing easier operation
The arm pocket of 120mm depth gives a sufficient space, enabling smooth setting of material. The arm shape providesa good view of the needle area, allowing operators to observe the sewing operation. It is suited even for vertical button holes and hip pocket parts. The newly equipped LED Light is provided as standard and helps provide better viewing when placing fabrics or garments.

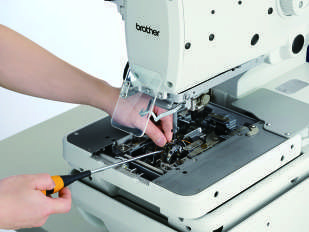

Easy Maintenance and adjustment favourable
While continuting the conventional basic adjusting method, installation to production lines and fine adjustment of the machine can be donw in a shorter tinme. The nu7mber of aor tubes has been reduced, saving te trouble of connecting. Adjustment of the needle bar and the loopers can be made with the familiar, conventional method. An eccentric pin is adopted for the spreader which enables adjustment without steps, making the operation easier.
The location to supply oil has been concentrated into one. Minial oil is automatically lubricated with wicks from the oil tank to every part requireing lubrication, such as the areas of teh needle bar and looper base.
The machine is equipped with a special pocket in which threadt waste can gather. This prevents thread waste from littering, keeping the working environment clean.
Technical Specification
Model | Brother RH-982A-01-1D |
---|---|
Upper Thead Trimmer | Yes |
Lower Thead Trimmer | Long type |
Length of work clamp (Standard) | 30mm |
Length of Hammer (Standard) | 22mm |
Length of Hammer (Accessory) | 30mm |
Sewing Speed | 1,000 - 2,500sti/min |
Stitch Pitch | 0.5mm - 2.00mm |
Zigzag width | 1.5mm - 5.0mm (Up to 4.0mm in mechanical, up to 5.0mm with zigzag width compensation) |
Zigzag width (Factory setting) | 2.5mm |
Taper bar tack length | 0 - 20mm |
Height of work clamp | 12mm as standard (Available up to 16mm) |
Starting method | Foot Switch (Two-Pedal Type), Hand Switch (Two-Lever Type) |
Feed mechanism | X,Y,0 intermittent feed mechanism |
Needle | DOx558 |
Upper Shaft Motor | AC Servo Motor 550W |
Air Pressure | Main regulator: 0.5MPa Hammer pressure regulator: 0.4MPa |
Air consumption | 43.2L/min (8 cycles/min) |
Power supply | Single Phase, 3-phase: 200V-230V Max power consumption 400VA |
More Information
Part No | BRORH982A011D |
---|---|
Weight (KG) | 0.100000 |
Manufacturer | Brother |
