JACK H6L-CZ-4 UBT WALKING FOOT MACHINE LONG VERSION
Description / JACK H6L-CZ-4 UBT WALKING FOOT MACHINE LONG VERSION
Jack H6L-CZ-4
- Digitalized Top Feed Walking Foot Machine.
With a digital top feed, specially designed for heavy materials such as bags, cushions, leather gloves, and armchairs. Its long arm provides an extended working area, ideal for handling large or bulky items. Equipped with a powerful, integrated 750W motor, the H6L delivers strong needle penetration, making it easy to sew through more than 8 layers of leather with precision and consistency.

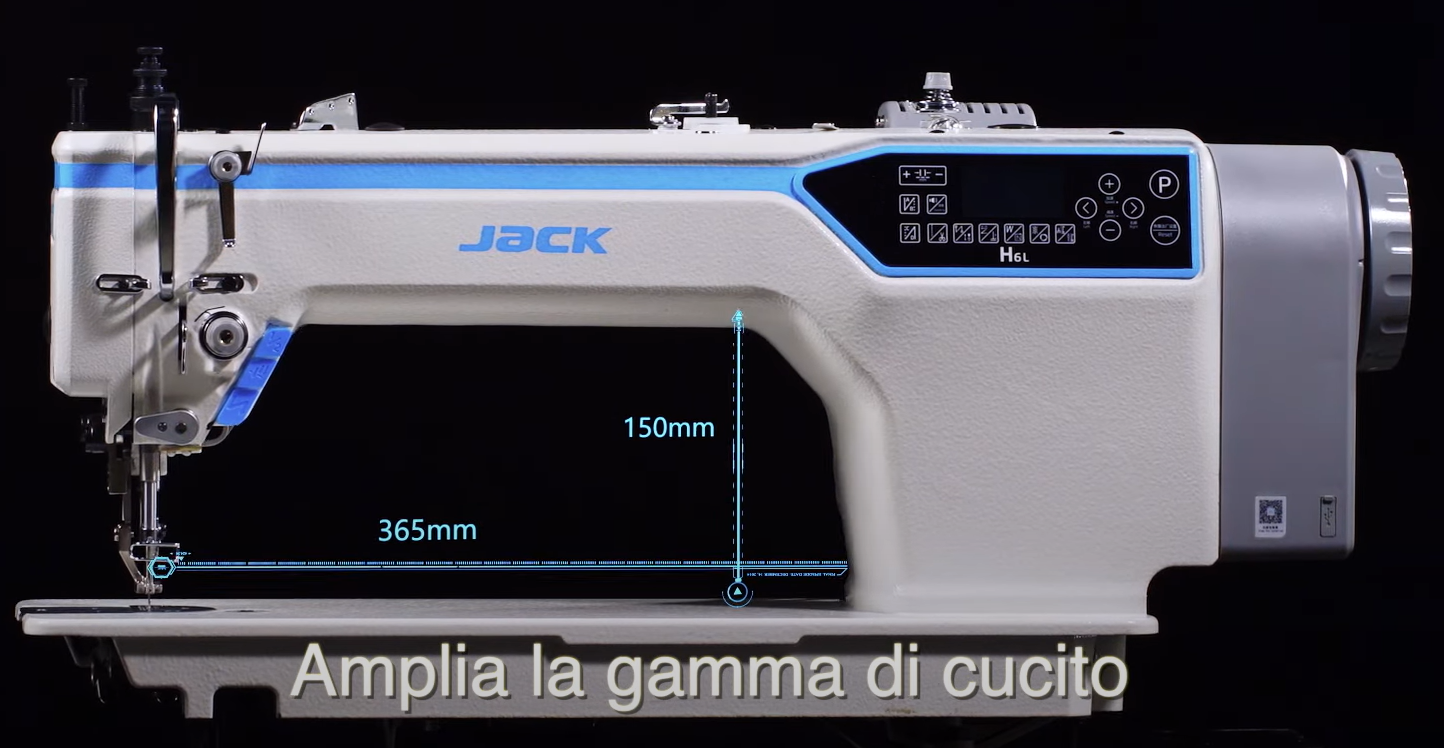

Long Arm (H6L)
Features a 365mm working base and 150mm height, making it ideal for operations that require ample space to handle larger or bulkier materials.

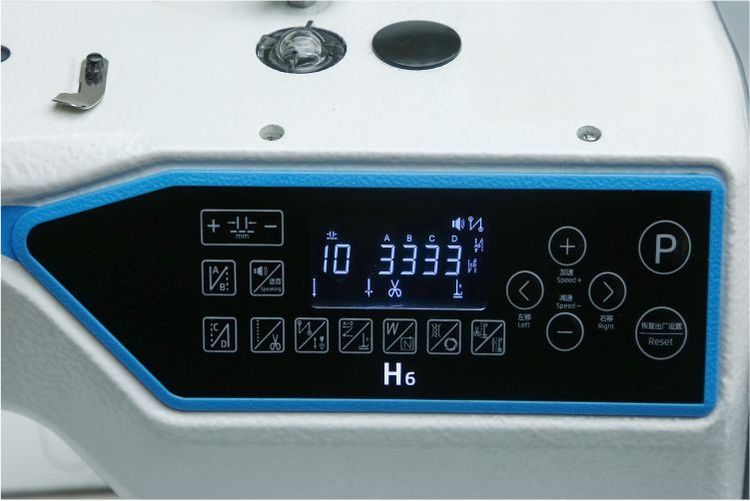

Digital Stitch Adjustment
Stitch length can be precisely adjusted in 0.1 mm increments, controlled by a step motor for consistent and accurate results. A stitch length lock feature has also been introduced to prevent unintentional changes during operation.

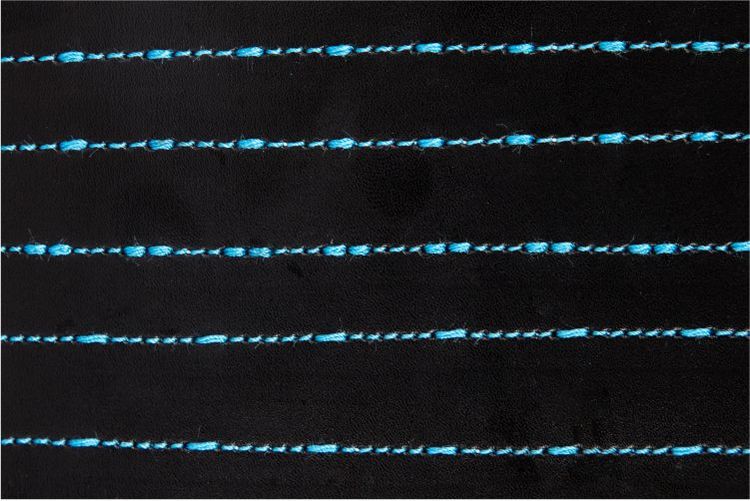

Pattern Sewing
Create beautiful ornamental stitches using the alternating stitch length feature. Patterns can be customized and adjusted to suit a variety of design and sewing needs.

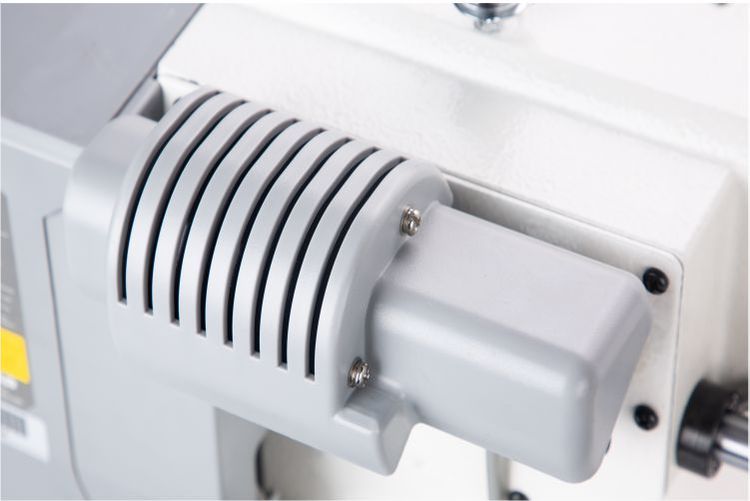

Digital Silent Bartack
The step motor-driven digital bartack system significantly reduces operating noise, creating a quieter and more comfortable working environment.

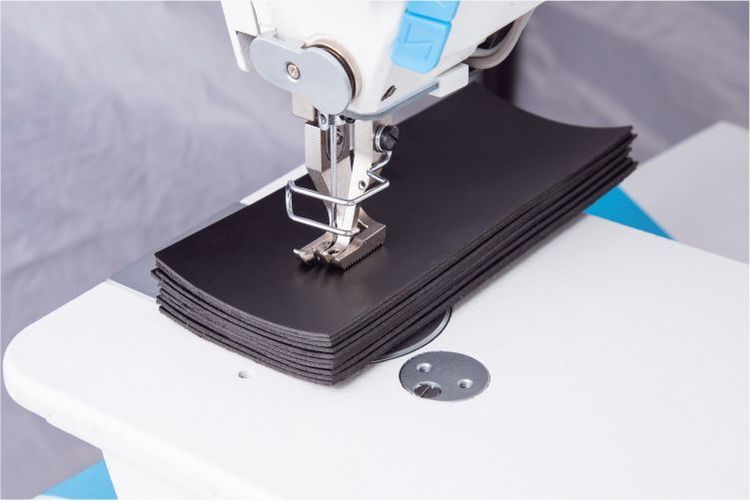

Top Feed
Powered by a robust 750W motor, this machine is built for durability and heavy-duty performance. It delivers excellent results when sewing up to 8 layers of leather, thanks to its strong needle penetration force.

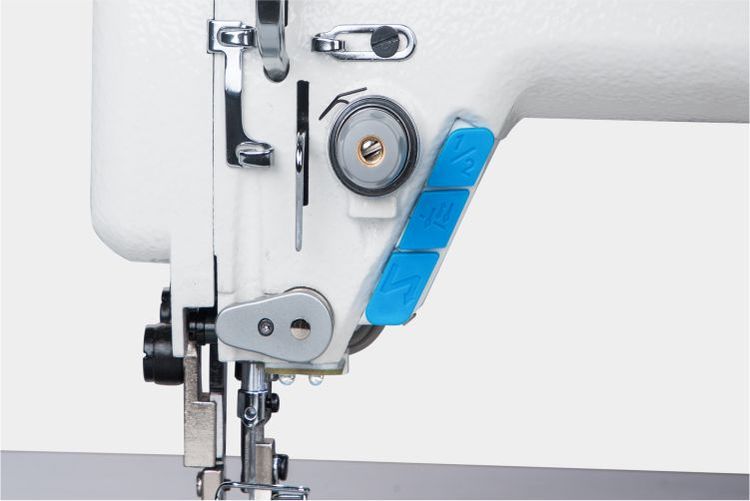

Half-Stitch Button
With the press of a button, users can perform half stitches—ideal for precise work, sewing corners, and detailed stitching where accuracy is essential.

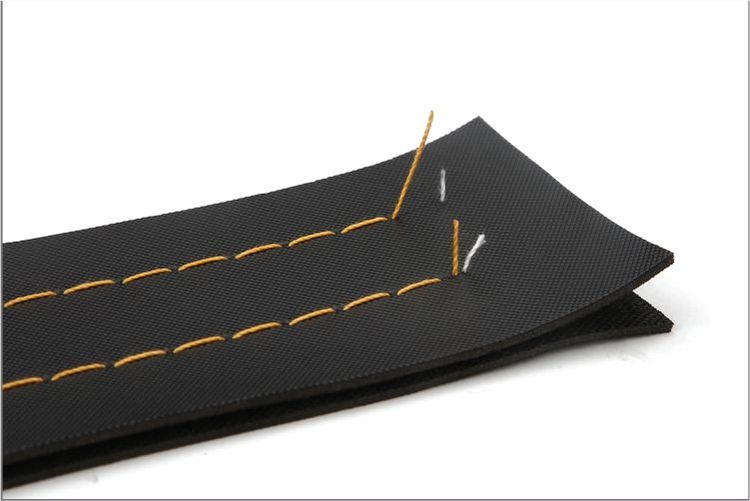

Short Thread Cutting
Eliminates the need for manual trimming of remaining thread, reducing the risk of damaging the finished product while saving time and cost. You can also insert initial and/or final condense stitches to prevent thread unravelling.

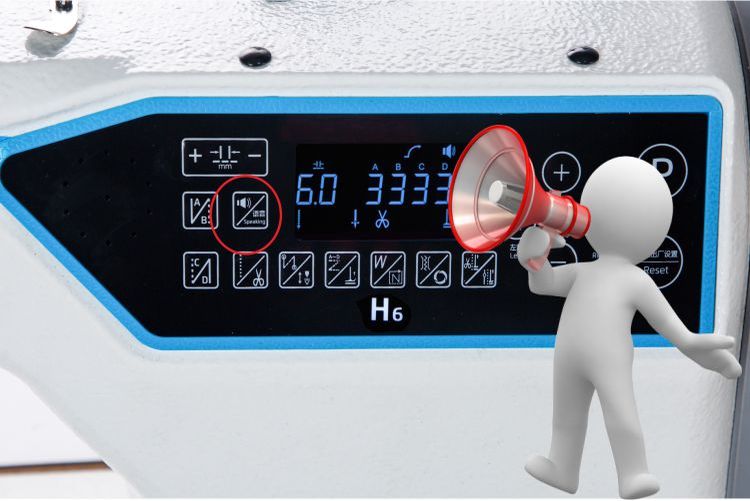

Voice Guide
As you use the machine, it will guide you through its functions step by step. In case of an error, it will notify you, and by pressing the VOICE button, it will suggest possible solutions.
Automatic Electric Foot Lifter
Save time and effort with the electric automatic presser foot lifter. No need to apply 50N of force on the knee lifter—the machine handles it for you, improving comfort and efficiency during operation.

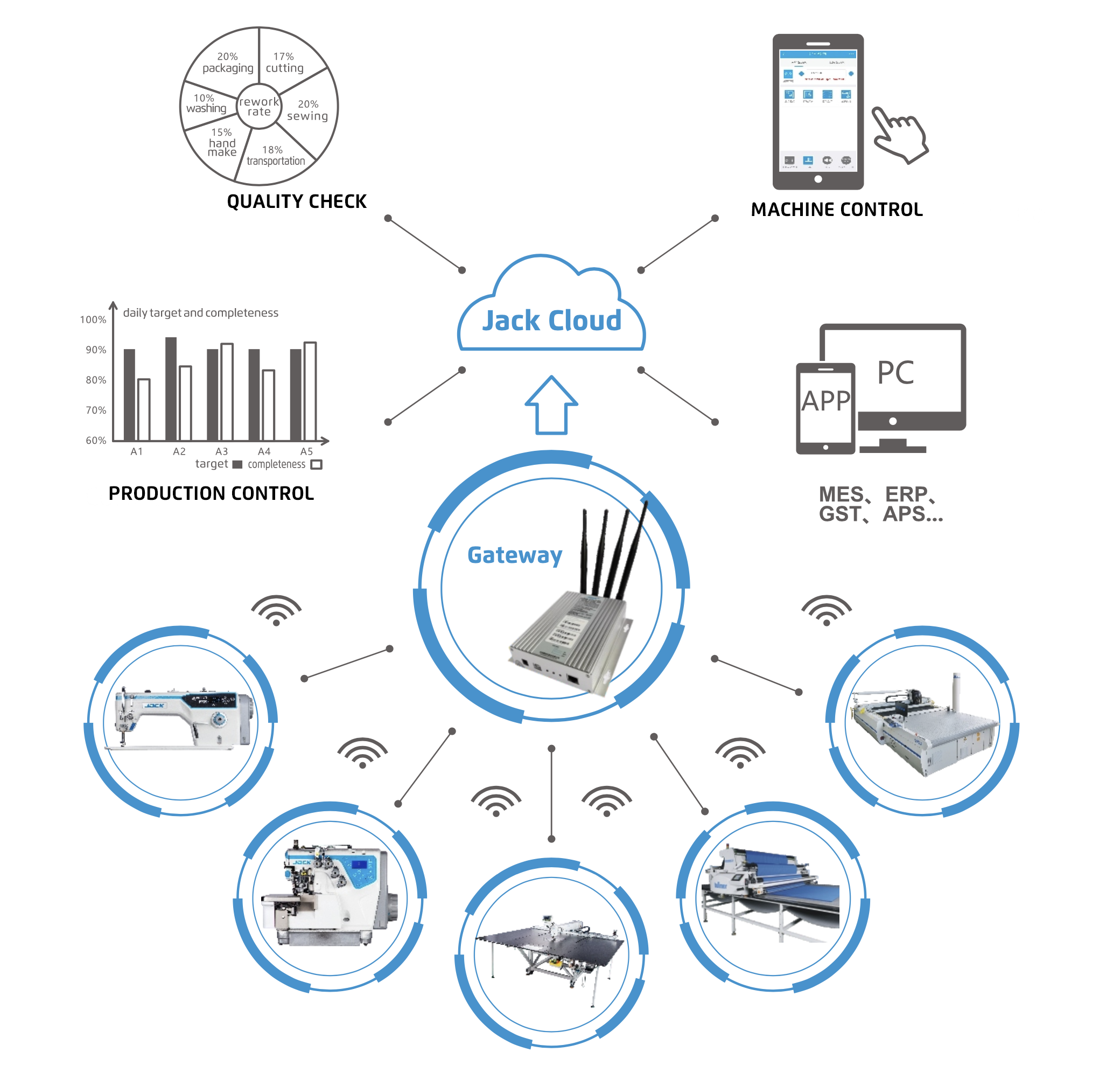

Industry 4.0 (Optional)
With the integrated Wi-Fi module, you can remotely adjust parameters and monitor machine productivity directly through the dedicated app.
Note: One Jack Gateway is required for every 50 machines.
Technical Specification
| Model | Jack H6L |
|---|---|
| Application | Normal Material |
| Needle | DPx17 20-23# |
| Threads | 2 |
| Presser Foot Lifting Height (mm) | 7.5-16 |
| Max Sewing Speed (S.P.M) | 2200 |
| Auto Presser Foot Lifter | Electronic |
| Volume (mm) | 725x345x580 |
| Weight (KG) | 43/51 |
More Information
| Part No | JACKH6L |
|---|---|
| Weight (KG) | 74.000000 |
| Manufacturer | Jack |
