JACK C4-4-M03/333 4 THREAD DIRECT DRIVE SUPER HIGH SPEED OVERLOCK
Description / JACK C4-4-M03/333 4 THREAD DIRECT DRIVE SUPER HIGH SPEED OVERLOCK

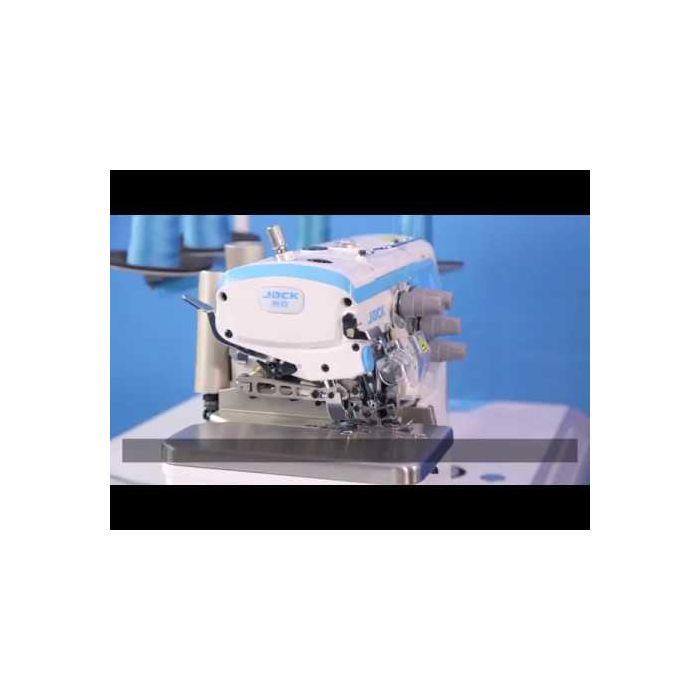

Jack C4-4-M03/333
- High Speed Automatic 4-Thread Overlock Machine.
The Jack C4-4-M03/333 is a high-performance, 4-thread overlock machine designed for speed, precision, and ease of use. Equipped with three easily switchable operation modes—manual, semi-automatic, and automatic—this machine adapts effortlessly to different production needs.

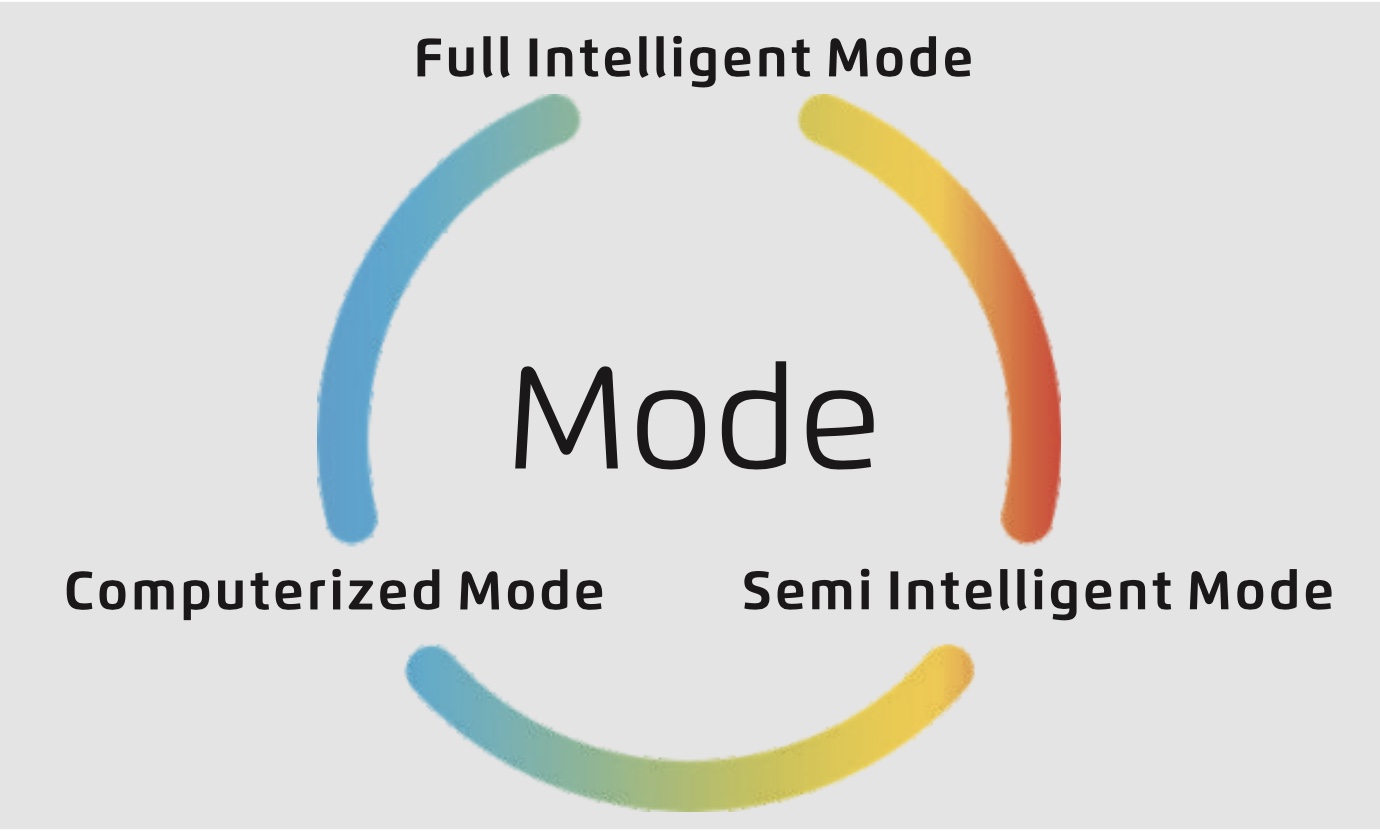

Three Sewing Modes
Automatic: Operates through sensors without the need for a pedal
Semi-Automatic: Features automatic presser foot lifting and thread trimming
Manual: Functions are controlled manually via the panel, allowing selective use of aids

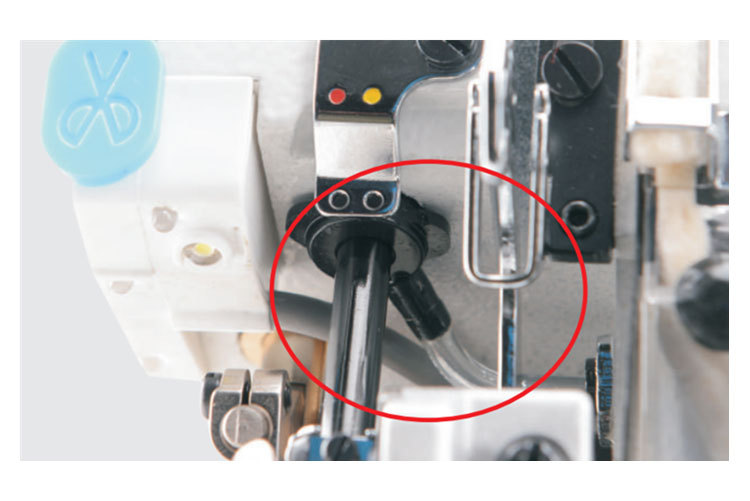

Effective Oil Control
Equipped with a sealed oil pickup system and enclosed needle bar to prevent oil leaks, ensuring clean operation and fabric protection.

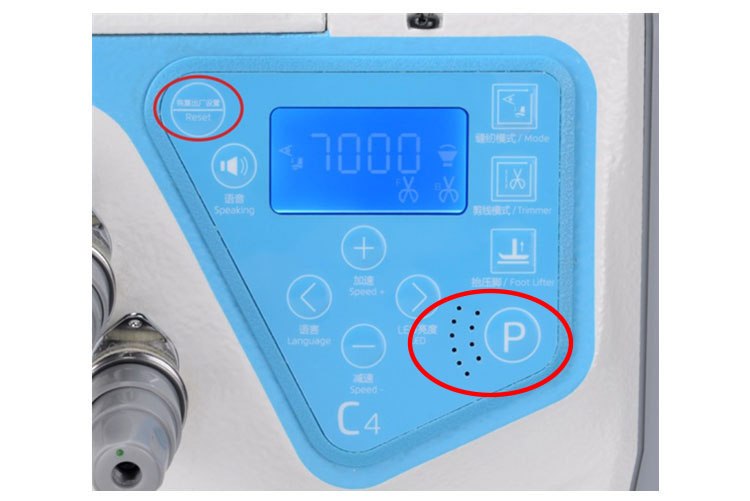

Voice Guide
The machine provides built-in voice guidance to teach you its various functions. In case of an error, it alerts you and, with the press of the VOICE button, offers step-by-step troubleshooting suggestions. A single key also allows you to quickly return to the initial factory settings.

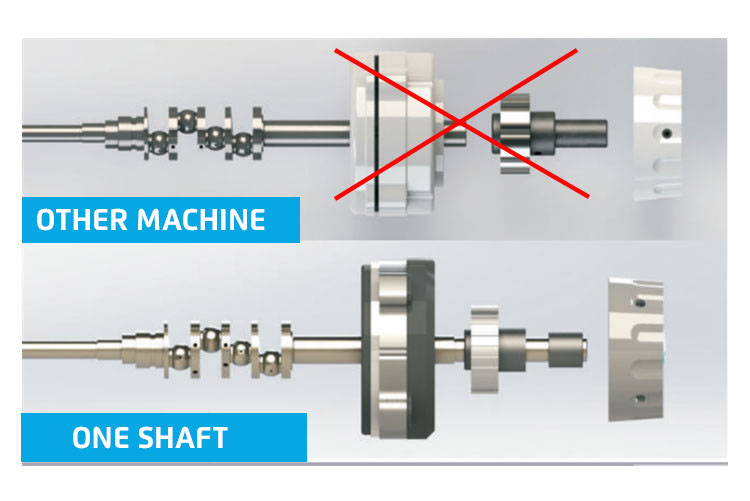

Single Motor Shaft
Reduces torque for greater stability during operation, ensuring smoother and more consistent sewing performance.

Speed Up to 7,000 RPM
Achieve a maximum speed of 7,000 revolutions per minute—35% faster than standard machines—delivering higher efficiency and increased productivity.

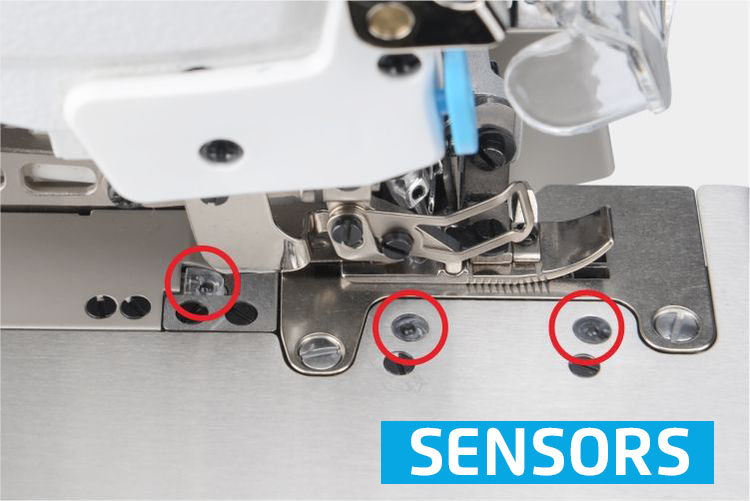

Photocells
Enable automatic start and end of the seam, as well as activation of the chain cutter and presser foot lifter—streamlining operations and improving efficiency.

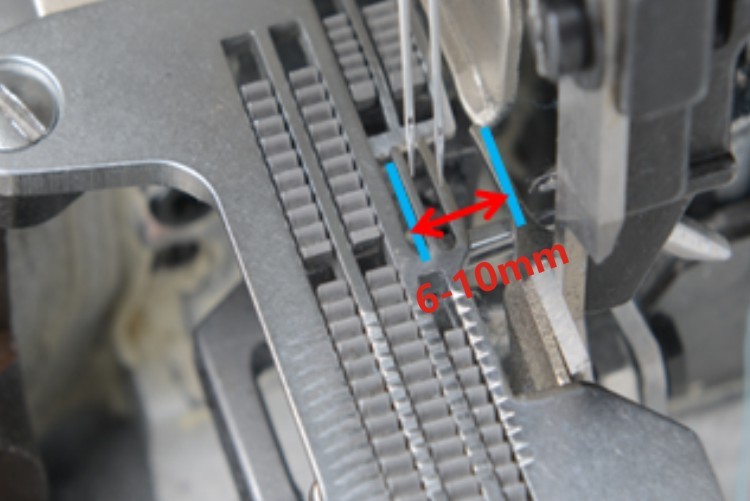

Adjustable Overedge Width
Easily adjustable overedge width ranging from 6 to 10 mm, allowing flexibility for different fabric types and seam finishes.

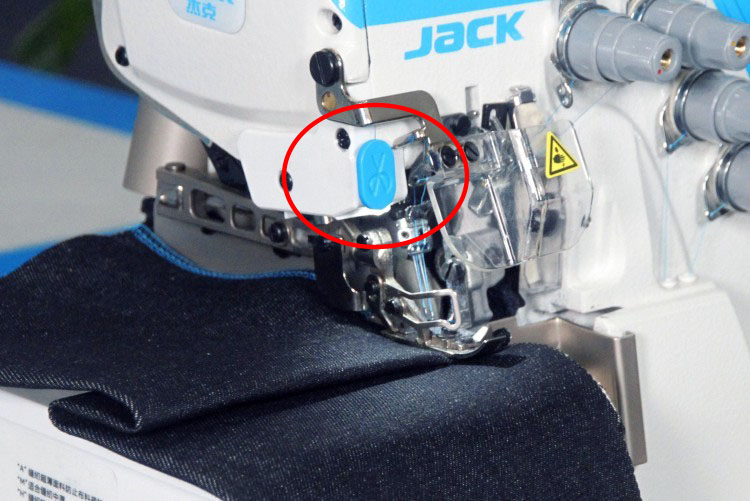

Footlifter and Chain Cutter
Thanks to integrated photocells, the electronic presser foot lifter and chain cutter activate automatically at the end of the seam, improving workflow efficiency and operator comfort.

Technical Specification
Model | Jack C4-4-M03/333 |
---|---|
Application | Plain Seaming |
Needle | DCx27 |
Needle Size | #11 |
Number of Needles | 2 |
Number of Threads | 4 |
Needle Distance | 2 |
Stitch Width (mm) | 4 |
Stitch Length | 4.6 |
Differential Ratio | 0.7-2 |
Presser Foot Lifting Height (mm) | 5.5 |
Max Speed (s.p.m) | 7000 |
Volume (mm) | 525x360x510 |
Weight (kg) | 33/41 |
More Information
Part No | JACKC4-4-M03/333 |
---|---|
Weight (KG) | 69.000000 |
Manufacturer | Jack |
